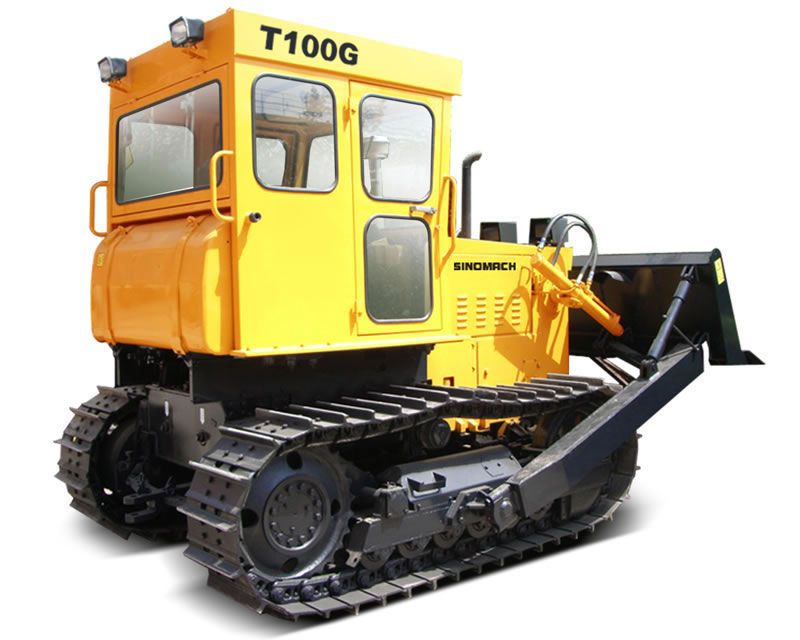

T100G Crawler Bulldozer
T100G Crawler Bulldozer
Features of T100G Crawler Bulldozer
1. Our T100G crawler bulldozer is equipped with the powerful and fuel efficient YTO LR6A3-23 diesel engine. This engine offers all power the earth moving equipment needs for travel, counter rotation, materials pushing, etc.
2. With state-of-the-art power shift transmission that allows ground speed to match to the load, this push dozer can fit for specific applications and terrain conditions. See detailed specifications of this tracked dozer from the following table.
| Main Technical Specifications | ||
| Total weight | 10400kg | |
| Dimension | Total length | 4190mm |
| Total width | 2908mm | |
| Total height | 2982mm | |
| Track gauge | 1650mm | |
| Track shoe width | 450mm | |
| Dozer Blade | ||
| Width × Height | 2908×960mm | |
| Max. lifting height | 830mm | |
| Max. embedded depth into soil | 370mm | |
| Cutting angle (adjustable) | 55° | |
| Max. drawbar pull | 95kN | |
| Ground pressure | 54.4kPa | |
| Diesel Engine | ||
| Engine | Model | YTO LR6A3-23 |
| Rated power | 81hp | |
| Rated rotor speed | 2300rpm | |
| Theoretical speeds of all gears | ||
| Forward Gear I - IV | 2.6~10.3km/h | |
| Backward Gear I - II | 3.7~6.7km/h | |
| Fuel consumption of the engine | ≤242g/kw.h | |
| Engine max. torque | 400N.m | |
