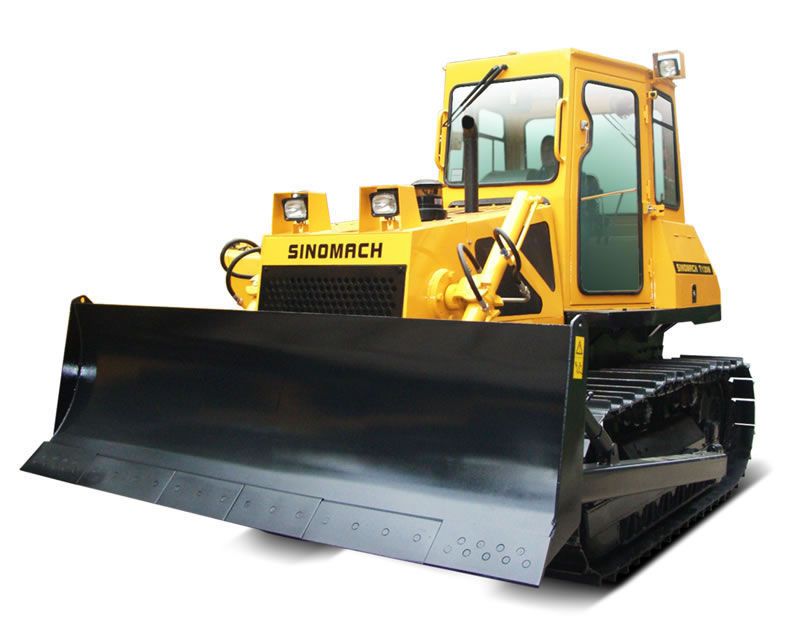

T120N Crawler Bulldozer
T120N Crawler Bulldozer
Features of T120N Crawler Bulldozer
1. The tracked bulldozer made by Sinomach is an industry leading dozer powered by the YTO LR6A3Z-20 diesel engine. Not only does this help the engineering vehicle achieve considerable fuel savings while maintaining high power, but it also contributes to boosting productivity and performance.
2. This crawler bulldozer is designed with an efficient power shift transmission which enables 4 speed forward and 2 reverse speeds.
| Main Technical Specifications | ||
| Total weight | 13000kg | |
| Dimension | Total length | 4535mm |
| Total width | 3147mm | |
| Total height | 2900mm | |
| Track gauge | 1860mm | |
| Track shoe width | 500mm | |
| Dozer Blade | ||
| Width × Height | 3147×957mm | |
| Max. lifting height | 955mm | |
| Max. embedded depth into soil | 380mm | |
| Cutting angle (adjustable) | 55° | |
| Max. drawbar pull | 115kN | |
| Land pressure | 51kPa | |
| Diesel Engine | ||
| Engine | Model | YTO LR6A3Z-20 |
| Rated power | 93hp | |
| Rated rotor speed | 2000rpm | |
| Theoretical speeds of all gears | ||
| Forward Gear I - IV | 2.4~10.6km/h | |
| Backward Gear I - II | 3.9~7.1km/h | |
| Fuel consumption of the engine | ≤246g/kw.h | |
| Max. torque of the engine | 526N.m | |
