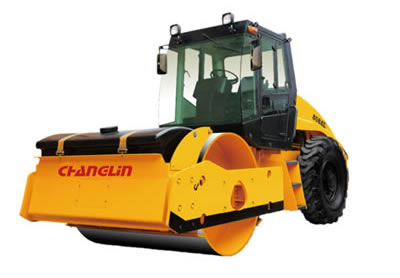

8088L Vibrating Road Roller

8088L Vibrating Road Roller

This product has been discontinued and removed from our shelves.

Main Features
1. With the mechanical drive, hydraulic vibration and articulated steering, this 8088L vibratory road roller features remarkable flexibility, high reliability and high cost effectiveness.
2. It has two kinds of braking system, namely hand brake and hydraulic foot brake, thus maximizing safety and reliability of the road machinery.
3. It employs high quality and efficient engine, with gearbox installed on the back side. The engine cover comes in complete open design, thus providing the best space for maintenance.
4. The water spraying unit for the front and rear drums is electrically controlled, thus ensuring ease of operation.
5. The road roller has spacious and comfortable driver cabin that offers broad vision.

Technical Parameters of the Road Roller
Operating mass 8000kg
Centrifugal force 80kN
Vibration frequency 50Hz
Vibration amplitude 0.4mm
Traveling speed 2.2km/h 4.7km/h 15km/h
Grade ability 25%
Dimension 5180×1920×2580mm
Engine model 4100AY-1
Engine power 40.4kW
Min. turning radius 5000mm
Vibrating drum width 1700mm
Min. ground clearance 320mm
