changlin

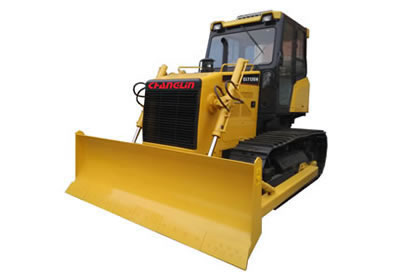

CLT120N Bulldozer

CLT120N Bulldozer

Features of CLT120N Bulldozer
1. CLT120N bulldozer comes with a turbocharged engine by introducing advanced technologies from British Ricardo Company, providing the advantages of low oil consumption and large torque reserve factor etc.
2. Steering clutch: Hydraulic power assisted steering clutch is hand operated. The multi-disc dry clutch is easily maintained and operated.
3. The air filter is adaptable to coal yards, desert and other special working conditions.
4. Fully enclosed hexagonal cab effectively reduces noise. It provides much comfort and a wide viewing angle.
5. Electronic monitoring system for the real-time supervision of the complete machine, ensuring the normal operation of the machine
6. Working mechanisms: numerous devices to choose from, including straight-tilt blade, sanitation type blade, angle blade and ripper etc.

Technical Parameters of CLT120N Crawler Dozer
Product model CLT120N
Length×Width×Height(mm) 4535×3147×2900
Operating weight(Kg) 13000
Diesel engine type British Ricardo LR6A 3Z-20
Rated output(KW) 115
Max. lift above ground(mm) 955
Max. drop below ground(mm) 380
Track width(mm) 500
