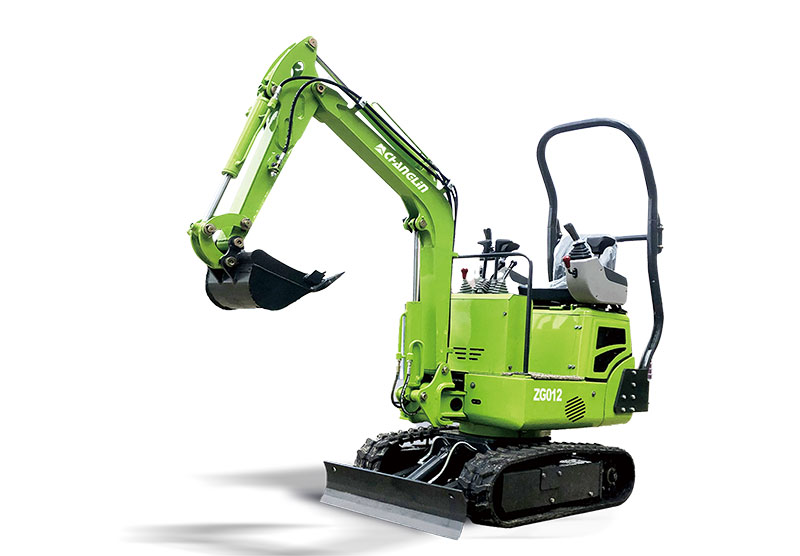

Mini Excavator ZG012

The ZG012 mini excavator features an EPA engine that meets Euro 5 emission regulations, ensuring strong power, exceptional durability, and improved energy efficiency. As the smallest pilot-type mini excavator at 1 ton, it is easy to operate and maintain, making it highly convenient for users.

  • Operating Weight 1,000KG
  • Rated Power 7.6kW
  • Bucket Capacity 0.02m³
Inquiry
Mini Excavator ZG012
  • Mini Excavator ZG012
  • Mini Excavator ZG012
  • Mini Excavator ZG012
  • Mini Excavator ZG012
  • Mini Excavator ZG012
    •
    Specifications
    Model ZG012
    Operating weight (kg) 1,000
    Rated bucket capacity (m3) 0.02
    Overall length (mm) 3,200
    Overall width (mm) 840
    Overall height (mm) 2,320
    Standard track shoe width (mm) 180
    Travelling speed (Km/hr) 1±0.2
    Swing speed (rpm) 9-12
    Max. gradeability (Degree) 26.6
    Maximum digging radius (mm) 3,050
    Maximum digging depth (mm) 1,475
    Maximum digging height (mm) 2750
    Bucket digging force (kN) 8.83
    Arm digging force (kN) 6.73
    Engine model Koop KD192F
    Rated power 7.6kW/3,000rpm
    Features
    • Mini Excavator ZG012

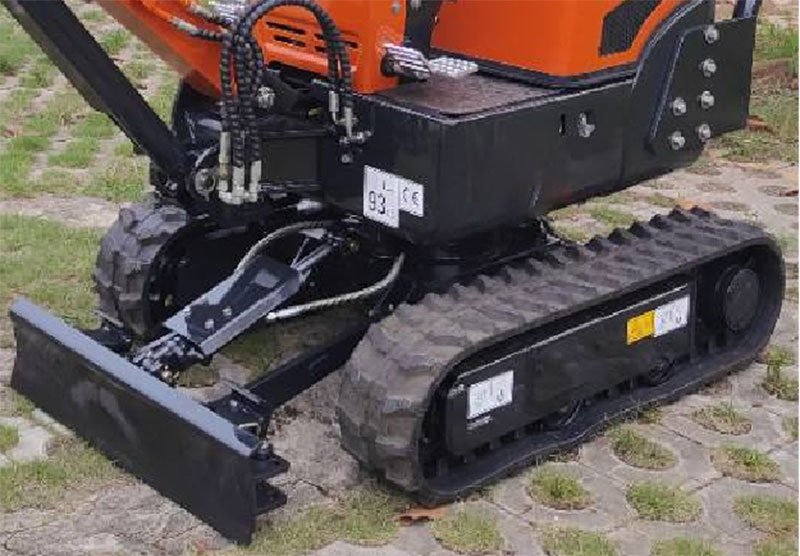

      Minimum machine width

      This excavator has a minimum width of 750mm with a telescopic chassis, providing excellent passability. It also features foldable two-post sheds with good passability, standard rubber tracks, and a dual-speed plunger motor.

    • Mini Excavator ZG012

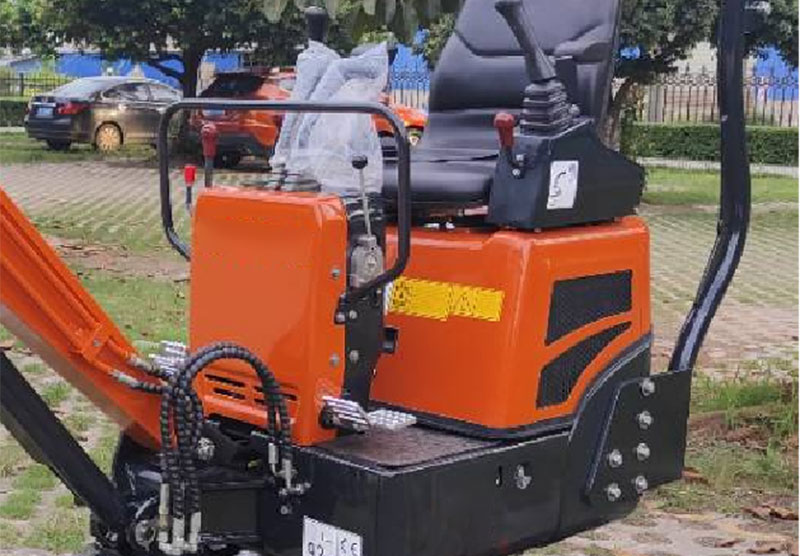

      Min. Pilot control model

      Both sides of the machine have control boxes that can be flipped to increase passability. The high back leather seats offer enhanced comfort, while the foldable aluminum pedals are aesthetically pleasing and easy to use.

    • Mini Excavator ZG012

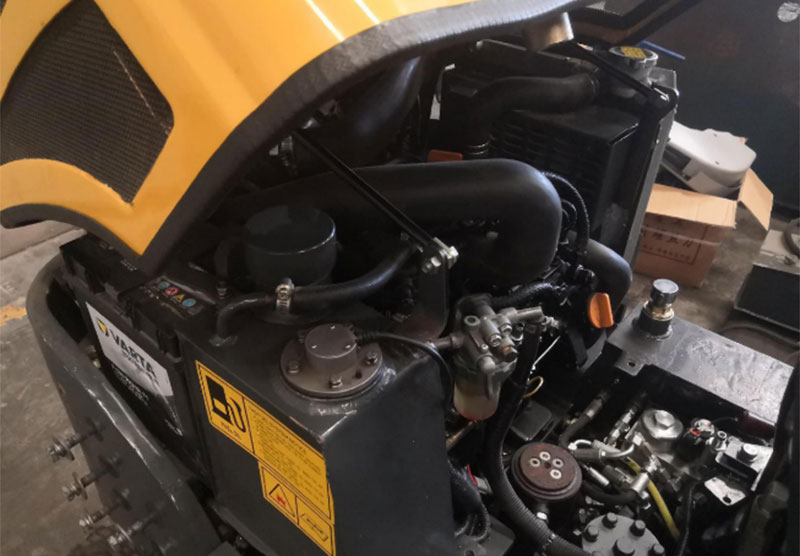

      Easy maintenance

      The double gas spring seat frame allows for easy turnover, making it more labor-saving. The large elevation overturned seat frame is also more convenient for maintenance purposes.
