SQ5 Truck Mounted Crane (Straight Boom Crane)

Features
1. Our SQ5 truck mounted crane is a straight boom crane with worm gear reducer. Thanks to the worm gear reducer, the truck crane is able to rotate at 360°.
2. This lifting equipment has a manual horizontal outrigger whose full span is 5m.
3. Hexagon section provides our truck mounted crane with good lateral stability.
4. The operating levers are distributed near the cab and are able to achieve both-side operation.
5. Our goods handling machine is equipped with 6-function manual main control valve to control the rotation, telescoping, working range, lifting of the boom and the telescopic movement of the vertical outrigger cylinders.
6. Standard configuration of our truck mounted crane includes the height limit switch, over winding alarm device and high power LED lights. Moment limiter is optional to be configured to this engineering vehicle to enhance operating safety.

Technical Parameters of Truck Mounted Crane
Order Item Unit Parameter
1 Maximum load moment kN·m 125
2 Maximum lifting load kg 5000
3 Maximum working height mm 8600
4 Boom length (fully retracted) mm 3725
5 Maximum lifting height (from the ground) mm About 10800
6 Lifting ratio 4
7 Maximum elevation angle of boom (°) 77
8 Minimum elevation angle of boom (°) 0
9 Lateral span of the front outrigger mm 2235~5005
10 Lateral span of the rear outrigger mm -
11 Maximum lifting speed Main hook (single rope) Lifting m/min 37.6
Lowering 37.6
12 Rotation speed r/min ≤2.5
13 Rotation angle ° 360° full rotation
14 Crane weight kg 2000
15 Fuel pump ------------- Gear pump
16 Fuel tank capacity L 100
17 Working pressure of hydraulic system MPa 23
18 Flow of hydraulic system L/min 40

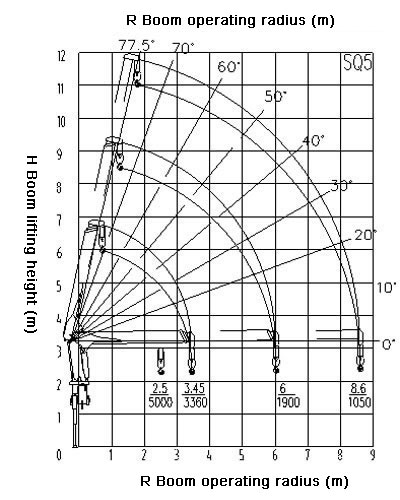

Rated Lifting Capacity of Truck Mounted Crane (Unit: kg.f)
R / L 3.72m 6.3m 8.88m
2.5 5000 3800
3.0 4000 3500 2500
3.5 (3.45) 3360 3200 2200
4.0 2900 2000
4.5 2600 1900
5.0 2300 1850
5.5 2000 1750
6.0 1900 1600
6.5 1450
7.0 1250
8.6 1100
