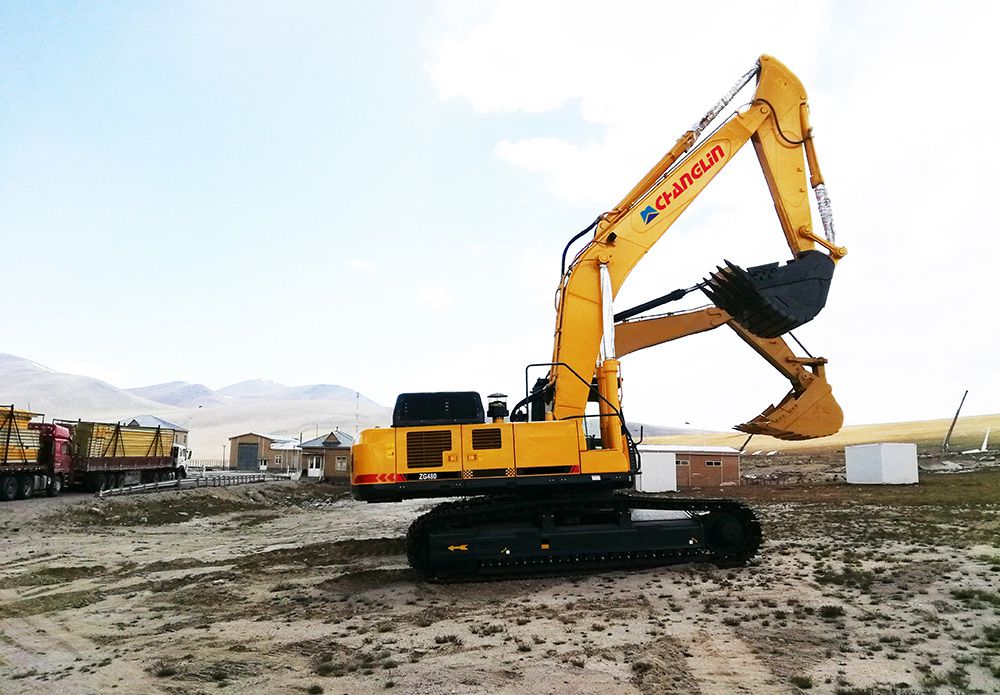

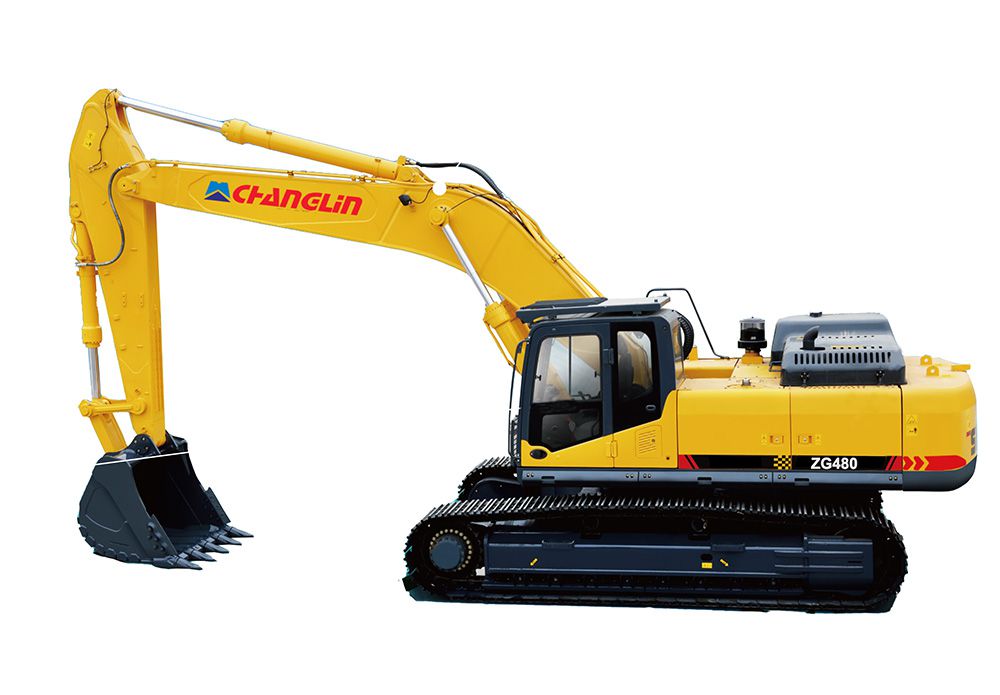

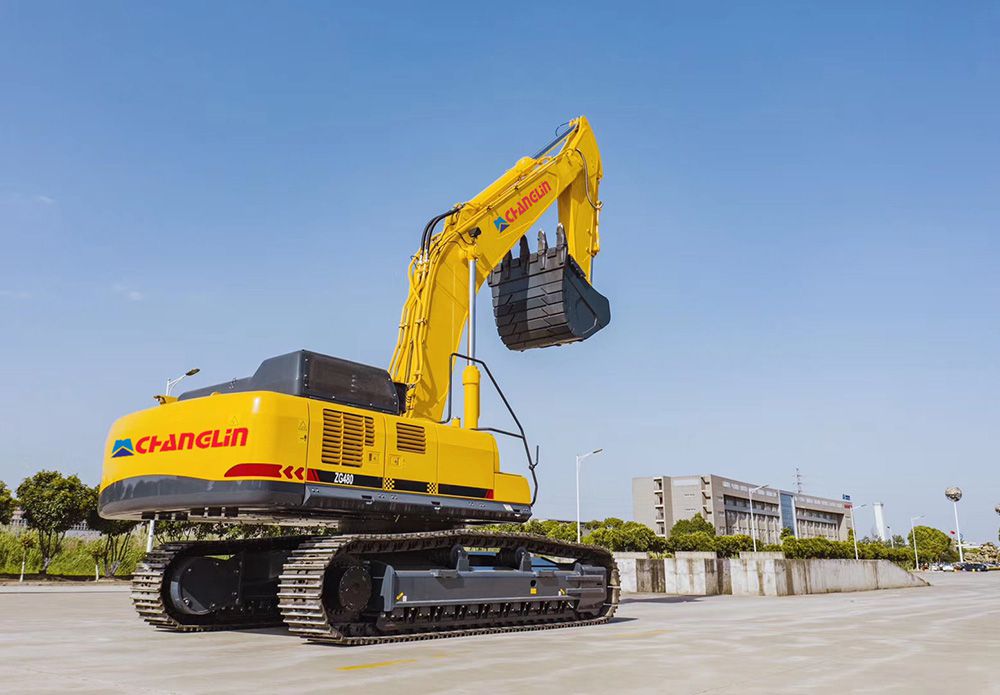

ZG3465LC-9C Hydraulic Excavator

Main Features of the Crawler Excavator
1. The heavy construction equipment carries an original Cummins electronic fuel injection engine imported from the U.S. which provides outstanding durability, large power, high reliability, low oil consumption and compliance with Euro II emission qualification.
2. It applies a state of the art Japan made negative flow control hydraulic system that offers excellent performance and ensures high working efficiency.
3. Specially designed for mining purposes, the excavator boasts more reasonable working range, larger digging force and higher structural intensity.
4. Due to high strength side box beam, X type mid-beam, reliable Italian chassis parts, the mining machine comes with a higher loading capacity.
5. Intelligent electronic monitoring system provides real time monitoring, automatic fault diagnosis and warning, maintenance reminding functions.
6. New driver cab is provided with a fully automatic air conditioning. It is spacious and comfortable, and comes with an eye-catching appearance. The cab is available in various protections for different working conditions.
7. Equipped with a rock bucket of extra large capacity, cab protection device, automatic refueling system and optional crusher, this series excavator is ideal for mining applications.
8. It adopts an American Horton cooling fan with large air volume and high efficiency, which can be equipped with an optional electrical silicone oil clutch and control system for intelligent speed control, thus ensuring more energy efficiency and lower noise.

Main Technical Parameters of Hydraulic Excavator
Item Unit
Rated standard bucket capacity (standard SAE) m3 2.2
Operating weight kg 47300
Overall power kW/rpm 375/2000
Dimension Total length (in transportation condition) A mm 12040
Total width (in transportation condition) (with 600mm track) B mm 3340
Total height (in transportation condition) C mm 3660
Height (from ground to the top of the cab) E mm 3314
Ground clearance of counterweight F mm 1230
Min. ground clearance of chassis H mm 560
Min. rotation radius mm 4868
Min. rotation radius of the working device mm
Track wheelbase J mm 4470
Track gauge M mm 2740
Standard width of track shoe N mm 600
Performance Working range Max. digging depth B mm 7862
Max. vertical digging depth C mm 6691
Max. digging radius A mm 12027
Max. digging depth on ground A’ mm 11830
Max. digging height D mm 10897
Max. dumping height E mm 7897
Max. digging force (ISO standard) Bucket kN 290
Bucket rod kN 228
Max. tractive force kN
Rotating speed rpm
Travel speed Max. travel speed km/hr 4.6
Min. travel speed km/hr 2.8
Gradeability Degree (%)
Ground pressure kgf/cm2
Components of Hydraulic Excavator
Diesel engine Model   Cummins QSM11-C375
Type   4-stroke diesel engine
Performance Rated power Hp (kW)/rpm 375 (280)/2000
Max. torque N.m/rpm 1898/1400
Starting motor   24V-7.2kW
Alternator
Accumulator kg 2×50
Track frame Track roller   78×10+86×8=1468
Joe sprocket   34×4=136
Track shoe   59×4+55×4=456
Hydraulic system Main pump Model   K5V200DPH1J3P-9NE4-2V
Type   Axial variable piston pump
Displacement cc/rev 200cc/rev×2
Rated flow L/min 360L/min×2
Pilot pump Type   Single-stage quantitative gear pump
Displacement cc/rev 15
Rated flow L/min 27
Control valve Model   KM×32N/B45018
Operating mode   Hydraulic pilot control
Pressure of main relief valve Mpa 32.3/34.3MPa
Rotary motor Model   M5×130CHB-10A-49A/290-RG14D20E1-B
M5×130CHB-10A-49A/290-RG14D20E1-T
Type   Axial quantitative piston motor
Operating pressure Mpa 3.4Mpa
Braking system   Auto release, hydraulic control, spring action
Travel motor Model   V107/A6AE107HZ3/63W-VZL220B+F100/175/V107/MB
Type   Axial variable piston motor
Operating pressure Mpa 34.3
Braking system   Multi-disc wet negative pressure brake
Hydraulic cylinder     Boom Bucket rod Bucket
Inner diameter of cylinder mm 170 190 170
Diameter of piston mm 115 130 120
Stroke mm 1570 1980 1270
Oil Capacity of Hydraulic Excavator
1 Fuel tank capacity (diesel) 600 (L)
2 Hydraulic oil tank capacity 310 (L) Open-type tank with scavenge oil fine filtration system
