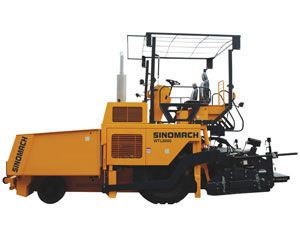

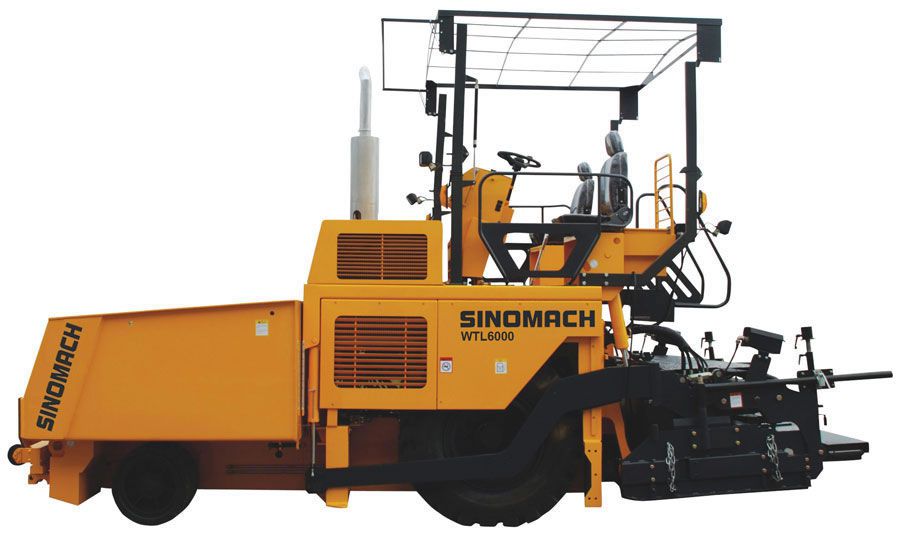

WTL6000A Road Paver
WTL6000A Paver with Hydraulic Telescopic Mangle Specifications
Items |
Parameters |
Travel mode |
Wheeled type |
Basic width |
2.5m |
Max. paving width |
6.0m |
Max. paving thickness |
150mm |
Theoretical productivity |
400t/h |
Hopper volume |
12t |
Working speed |
0-10m/min |
Flatness deflection |
Longitudinal 5mm/3m,Horizontal ±0.02% |
Camber adjustment |
-1% - +3% |
Engine |
Model |
4BTA3.9-C125 |
Make |
Cummins |
Rated power |
93 |
Rated speed |
2200 |
Screed system |
Type |
Vibra/tamping |
Oscillating frequency |
25HZ |
Vibrating frequency |
0-58HZ |
Heating |
Diesel heating |
Dimension |
Total length |
6290mm |
Total width |
2690mm |
Total height (incl. cab) |
3600mm |
Total weight |
15t |
