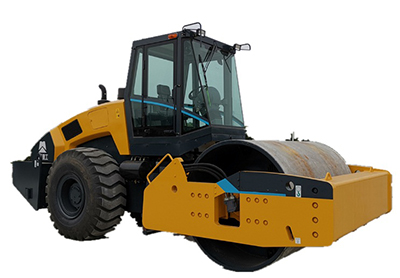

Single Drum Vibratory Roller GYS26

This product has been discontinued and removed from our shelves.

  • Rated output: 140kW
  • Centrifugal force: 405/280KN
  • Operating weight: 26000KG
Single Drum Vibratory Roller GYS26
  • GYS26 single drum vibratory roller provides additional compaction by vibrating the roller drum at dual frequency while offering two vibration amplitudes. This extra compaction force allows the vibratory roll to compact tough roads.
  • Hydraulic cylinder comes with combination seal for reliable leak-free performance.
  • Driving cab is designed with operator safety and comfort in mind . Adjustable cab seat comes with a suspension system.
  • High-precision soil density gauge allows vibratory roller driver to accurately control the density of soil being compacted.
Specifications
Model GYS26
Length×Width×Height(mm) 6820×2450×3260
Operating weight (Kg) 26000
Drum width (mm) 2150
Static linear pressure （N/cm） 602
Vibration frequency (Hz） 28/32
Centrifugal force（KN） 405/280
Traveling speed forward（km/h） 2.67/5.22/11.05
Traveling speed reverse（km/h） 2.64/5.23
Diesel engine WEICHAI WP6G190E301
Rated output(KW) 140
