Truck Mounted Crane

The truck mounted crane is a kind of heavy engineering equipment which employs a hydraulic lifting system and a telescopic system to achieve the lifting, rotation and transportation of goods. Our truck crane mainly consists of the truck chassis, cargo compartment, power takeoff, and the hoisting mechanism. We have straight boom cranes and folding boom cranes in tonnage of 2t, 3.2t, 5t, 6.3t, 8t, 10t, 12t and 16t for you to select. The chassis equipped to our truck mounted crane can be Dongfeng, Jiefang, Auman or Steyr chassis.

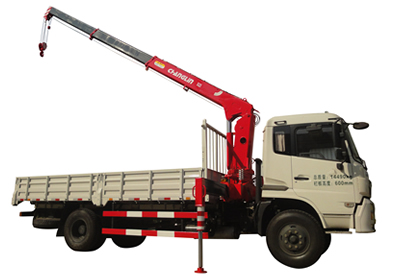

    1. Truck Mounted Crane (SQ5 Straight Boom Crane)
    2. Truck Mounted CraneSQ5

      Our SQ5 truck mounted crane is a straight boom crane with worm gear reducer. Thanks to the worm gear reducer, the truck crane is able to rotate at 360°. This lifting equipment has a manual horizontal outrigger whose full span is 5m.

      • Max. lifting capacity 5000Kg
      • Max. lifting moment 125KN.m
      • Max. lifting range ability 10800mm

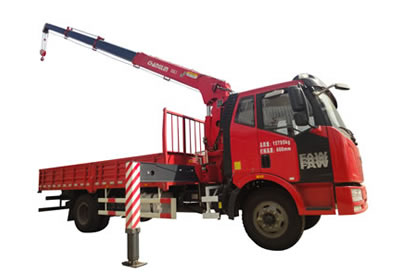

    1. Truck Mounted Crane (SQ6.3 Straight Boom Crane)
    2. Truck Mounted CraneSQ6.3

      As a straight boom crane, the SQ6.3 truck mounted crane uses worm gear reducer to achieve 360°full rotation. A hydraulic retractable horizontal outrigger whose full span is 5.2m is installed to our lifting machine as standard configuration.

      • Max. lifting capacity 6300Kg
      • Max. lifting moment 157KN.m
      • Max. lifting range ability 13800mm

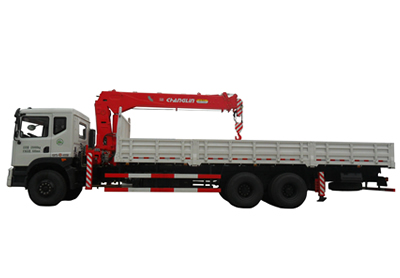

    1. Truck Mounted Crane (SQ8 Straight Boom Crane)
    2. Truck Mounted CraneSQ8

      This heavy engineering vehicle has a retractable front outrigger with a longer span up to 5.56m and a fixed rear outrigger to guarantee its stability when working. Hydraulic rear outrigger is optional to be equipped to our truck mounted crane to increase its stability and make it adaptable for more complex working conditions.

      • Max. lifting capacity 8000Kg
      • Max. lifting moment 200KN.m
      • Max. lifting range ability 15300mm
    1. Truck Mounted Crane (SQ10 Straight Boom Crane)
    2. Truck Mounted CraneSQ10

      As a straight boom crane, our SQ10 truck mounted crane adopts planetary reducer to guarantee stable 360°rotation. The front outrigger of the truck crane is designed with a longer span which is 5.56m maximum.

      • Max. lifting capacity 10000Kg
      • Max. lifting moment 250KN.m
      • Max. lifting range ability 15300mm

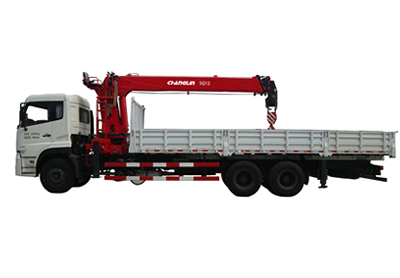

    1. Truck Mounted Crane (SQ12 Straight Boom Crane)
    2. Truck Mounted CraneSQ12

      Front outriggers with full span of 5.56m are fixed rear outriggers used in our straight boom hoisting device, guaranteeing high machine stability. Apart from fixed rear outriggers, you can select hydraulic rear outriggers for higher machine stability and make the hoisting equipment adaptable for more complex working conditions.

      • Max. lifting capacity 12000Kg
      • Max. lifting moment 300KN.m
      • Max. lifting range ability 17000mm

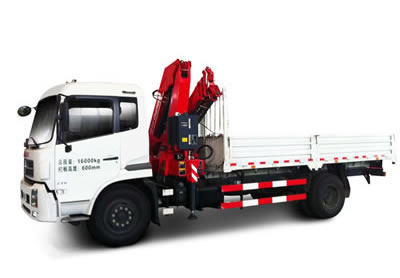

    1. Truck Mounted Crane (SQ6.3Z3Q Folding Boom Crane)
    2. Truck Mounted CraneSQ6.3Z3Q

      This SQ6Z3Q truck mounted crane is a folding boom crane with three-point axles. Worm gear reducer enables our lifting equipment to rotate 360°. The truck mounted crane adopts manual horizontal outriggers with full span of 5m.

      • Max. lifting capacity 6300Kg
      • Max. lifting moment 138KN.m
      • Max. lifting range ability 12800mm
