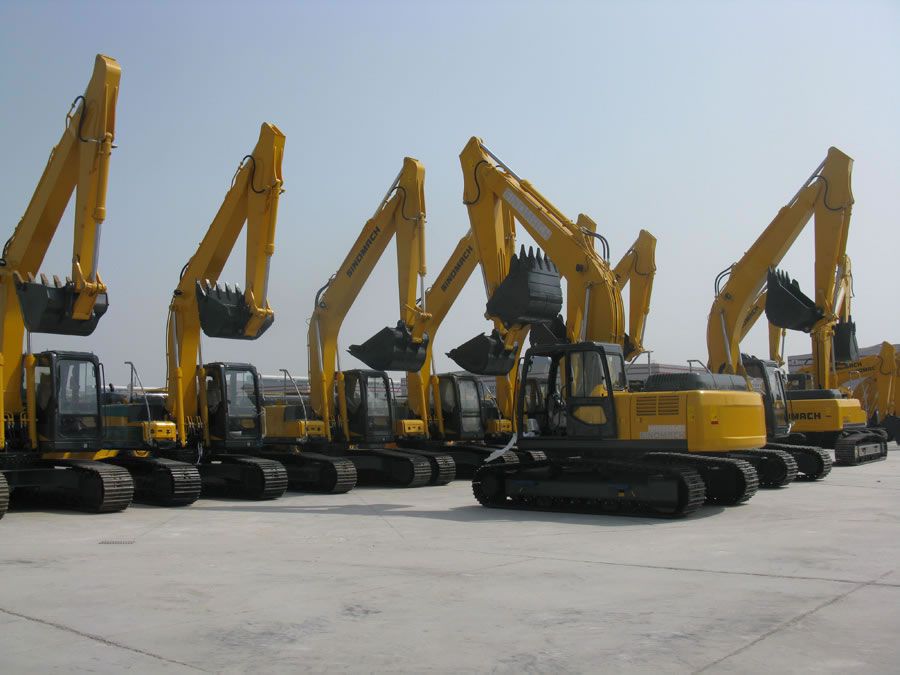

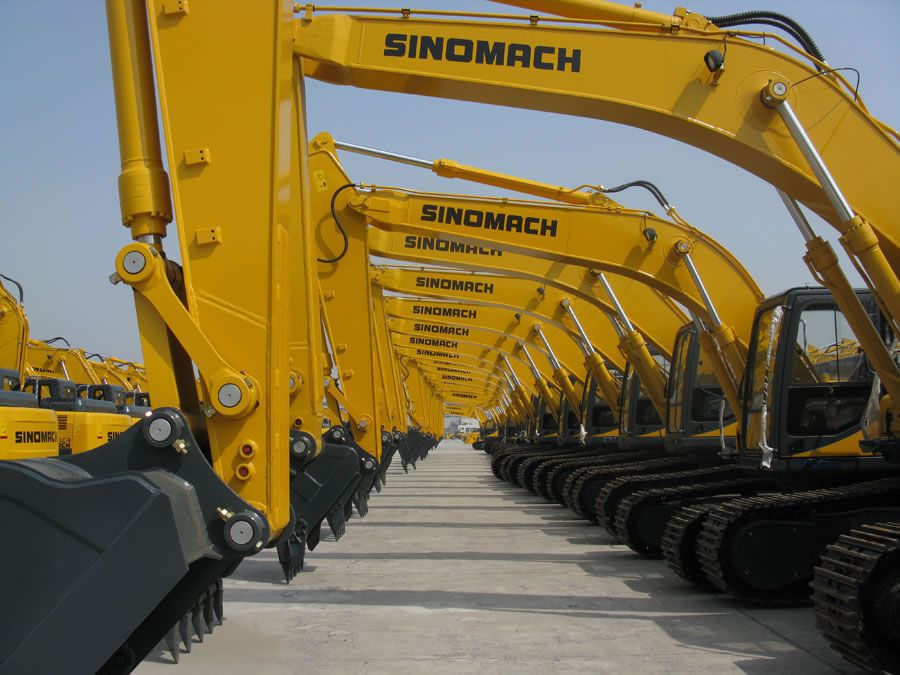

ZG3225LC-9 Crawler Excavator
ZG3225LC-9 Crawler Excavator
ZG3225LC-9 Hydraulic Excavator Specifications1. The hydraulic excavator is equipped with a reliable original Cummins engine.
2. It has a reliable hydraulic system with export pumps, motor and valves.
3. The hydraulic excavator comes with electronic monitoring and control system with the multifunctional LCD display showing information.
4. With a stepped-up device, the hydraulic excavator is applicable to mines.
5. Strengthened X-shaped box structure.
| Overall Dimension | ||
| 1 | Length (At transportation) | 9520mm |
| 2 | Width (At transportation) | 2990mm |
| 3 | Height (At transportation) | 3030mm |
| 4 | Height (To the top of the cab) | 2920mm |
| 5 | Chassis Length | 4440mm |
| 6 | Width of Track Shoe | 600mm |
| 7 | Wheel Base | 3650mm |
| 8 | Track Gauge of Crawler | 2390mm |
| 9 | Min. Ground Clearance | 470mm |
| Main Technical Parameters | ||
| 1 | Operating Weight | 23000KG |
| 2 | Rated Standard Bucket Capacity(SAE standard) | 1.1m3 |
| 3 | Max. Digging Force of Bucket/Rod | 13700/10200kgf |
| 4 | Max. Dump Clearance | 6803mm |
| 5 | Max. Digging Height | 9665mm |
| 6 | Max. Vertical Digging Depth | 6107mm |
| 7 | Max. Digging Depth | 6707mm |
| 8 | Max. Digging Radius | 9970mm |
| 9 | Min. Front Fitting Radius | 3560mm |
| 10 | The Rear Rotary Radius | 2800mm |
| 11 | Swing Speed | 12.4rpm |
| 12 | Grounding Pressure | 0.45PSI |
| 13 | Traveling Speed | |
| (1) 1st gear forward/backward | 5.0km/h | |
| (2) 2nd gear forward/backward | 3.3km/h | |
| 14 | Gradeability | 35° (70%) |
| Diesel Engine | ||
| 1 | Model | Cummins 6BTAA5.9-C150 (Tier II) |
| 2 | Type | Direct injection, turbocharged, and air-to-air cooling system. |
| 3 | Rated Output | 112KW |
| 4 | Bore of Cylinder/Stroke | 102 /120mm |
| 5 | Displacement of Cylinder | 5.883L |
| 6 | Starting Voltage of Motor | 24V, 70A |
| 7 | Power of Alternator | 24V, 4.5KW |
| 8 | Rated Speed | 1950r/min |
| 9 | Max. Torque | 614(N.M)@1500rpm |
| 10 | Starting Type | Electric |
| Working Device Hydraulic System | ||
| 1 | Type of Main Pump | Axial piston pump with variable displacement |
| 2 | Manufacturer of Main Pump | Tongmyung (South Korea) |
| 3 | Model of Main Pump | K3V112DT |
| 4 | Displacement of Main Pump | 2×112cc/rev |
| 5 | Max. Flow Rate | 2×228L/min |
| 6 | Pressure of Main Relief Valve | 31.4Mpa |
| Step-up: 34.3Mpa | ||
| 7 | Type of Pilot Pump | Single stage, fixed displacement gear pump |
| 8 | Pressure of Pilot System | 3.92Mpa |
| 9 | Type of Swing Motor | Fixed displacement axial piston motor |
| 10 | Pressure of Swing Circuit | 24.5Mpa |
| 11 | Manufacturer of Main Control Valve | Parker(South Korea) |
| 12 | (D*L)Dimension of Boom Cylinder | 2-Ф125*1221mm |
| 13 | (D*L)Dimension of Arm Cylinder | 1-Ф135*1475mm |
| 14 | (D*L)Dimension of Bucket Cylinder | 1-Ф120*1060mm |
| Driving System | ||
| 1 | Type of Motor | Fixed displacement axial piston motor |
| 2 | Pressure of Propel Motor | 34.3Mpa |
| 3 | Type of Final Reducer | Two-stage planetary reduction |
| 4 | Max. Traction Force | 197KN |
| Brake System | ||
| 1 | Type of Travelling Brake | Auto release, hydraulic control, wet-type multi-plate brake |
| 2 | Type of Swing Brake | Auto release, hydraulic control, wet type brake |
| Oil Capacity | ||
| 1 | Fuel (Diesel) | 400L |
| 2 | Engine Lubricating Oil | 24L |
| 3 | Coolant | 35L |
| 4 | Oil for Swing Device | 4.2L |
| 5 | Oil for Travelling Reducer | 2×5.5L |
| 6 | Hydraulic Oil | 270L |
| Specifications | ||
| 1 | Operating weight | 22000kg |
| 2 | Standard bucket capacity | 1.0m3 |
| 3 | Arm length | 2910mm |
| 4 | Boom length | 5680mm |
| Engine | ||
| 1 | Model | CUMMINS 6BTAA5.9-C150 |
| 2 | Type | Turbo-charged with inter-cooled |
| 3 | Power | 112KW/1950rpm |
| 4 | Max. torque | 614N.m at 1500rpm |
| 5 | No. of cylinders | 6 |
| 6 | Displacement | 5883cc |
| Dimensions | ||
| 1 | Overall length | 9520mm |
| 2 | Overall width | 2990mm |
| 3 | Overall height of boom | 3030mm |
| 4 | Width of platform | 2700mm |
| 5 | Overall height of cab | 2920mm |
| 6 | Ground clearance of counterweight | 1050mm |
| 7 | Height of engine cover | 2320mm |
| 8 | Min.ground clearance | 470mm |
| 9 | Length of platform | 2800mm |
| 10 | Rear swing radius | 2800mm |
| 11 | Track wheel base distance | 3650mm |
| 12 | Chassis length | 4440mm |
| 13 | Chassis width | 2990mm |
| 14 | Track gauge | 2390mm |
| 15 | Standard width of track shoe | 600mm |
| Working Range | ||
| 1 | Max. digging reach | 9970mm |
| 2 | Max. digging reach at groud level | 9812mm |
| 3 | Max. digging depth | 6707mm |
| 4 | Max. digging depth on ground | 6523mm |
| 5 | Max. vertical wall digging depth | 6107mm |
| 6 | Max. digging height | 9665mm |
| 7 | Max. dumping height | 6803mm |
| 8 | Min.swing radius | 3560mm |
| Hydraulic system | ||
| 1 | Main pump | |
| Type | Variable displacement axial piston pump | |
| Max. displacement | 2×108cc/rev C TYPE:2×112CC/rev | |
| Working pressure | 32.3/34.3Mpa C TYPE:31.7/34Mpa | |
| 2 | Hydraulic motor | |
| Swing | Fixed displacement axial piston motor | |
| Travel | Fixed displacement axial piston motor | |
| Performance | ||
| 1 | Swing speed | 12.4rpm C TYPE:12.0rpm |
| 2 | Max. travel speed H/L | 5.0/3.3km/h C TYPE:5.1/3.4km/h |
| 3 | Gradeability | 35° |
| 4 | Traction | 197498N C TYPE:194556N |
| 5 | Max. digging force of bucket | 189207kgf |
| 6 | Max. digging force of arm | 196027kgf |
| 7 | Ground pressure | 45kpa |
| Tank capacity | ||
| 1 | Fuel tank capacity | 400L |
| 2 | Hydraulic tank capacity | 210L |
