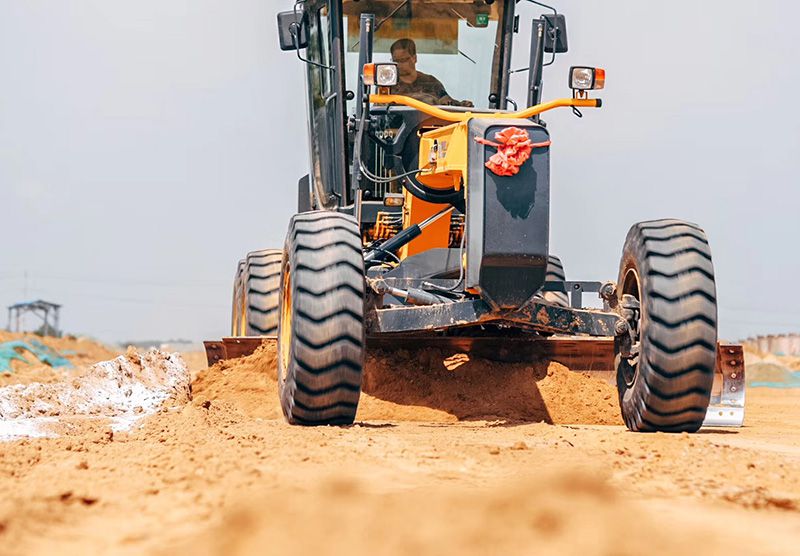

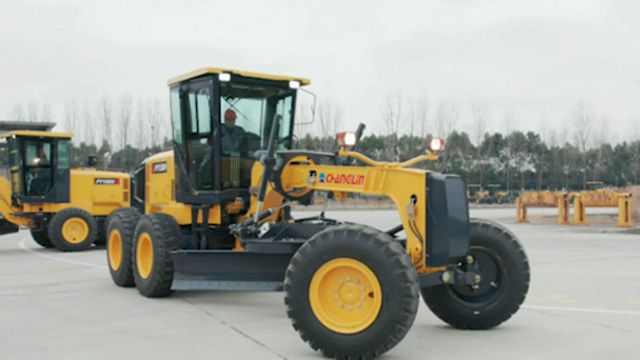

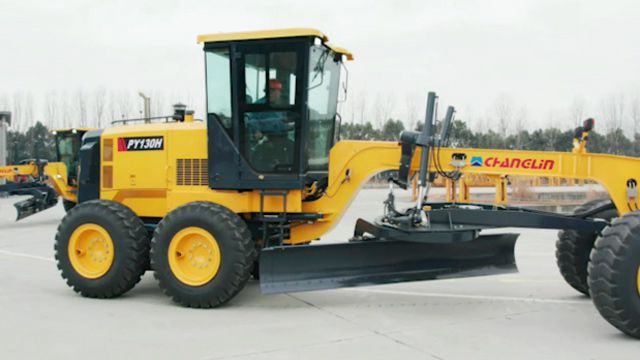

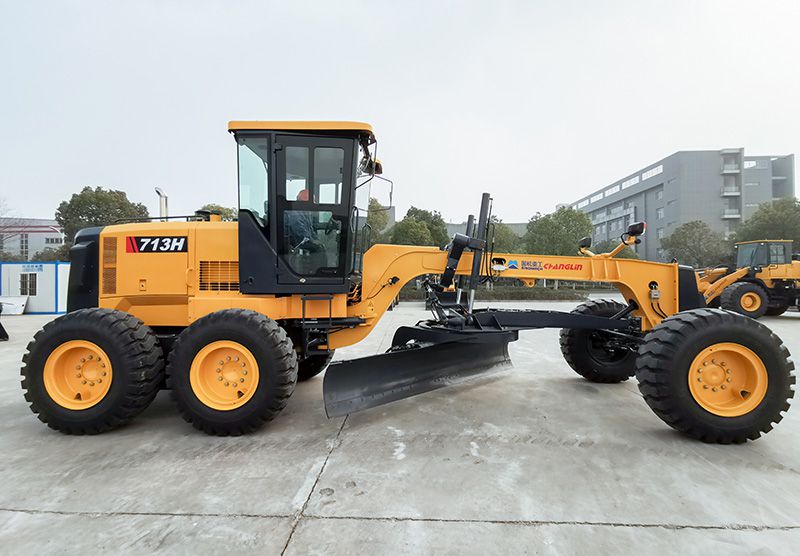

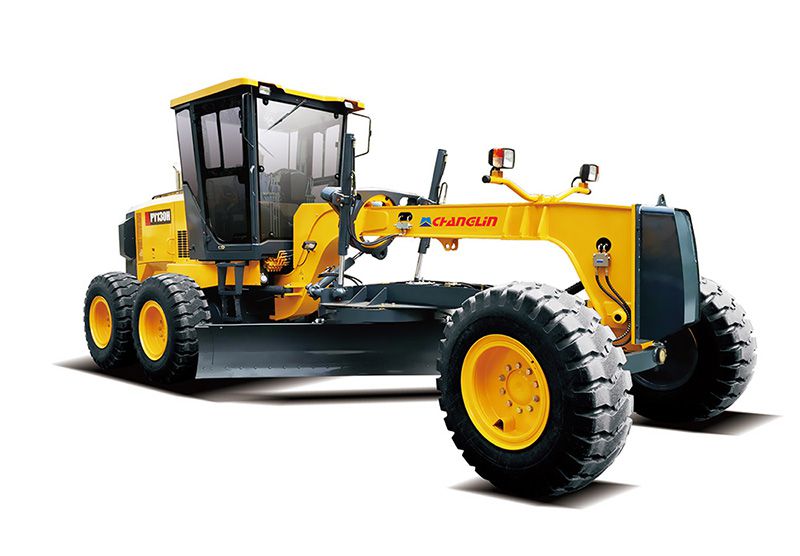

713H Motor Grader

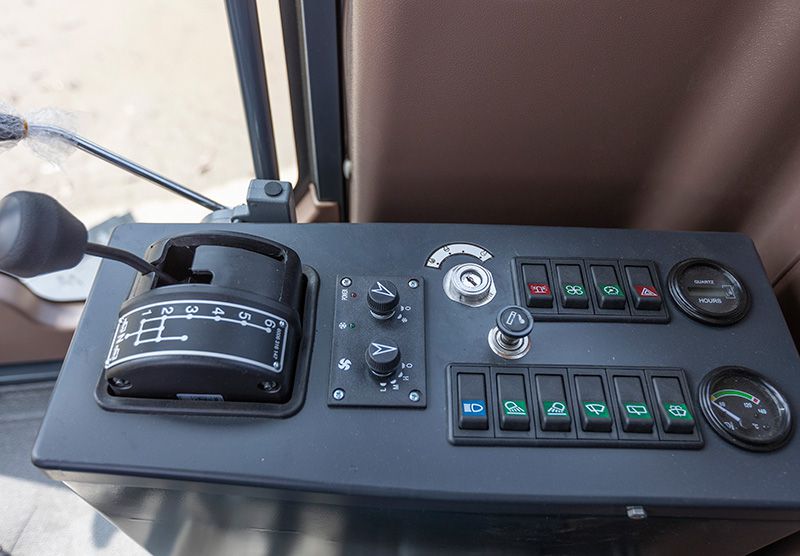

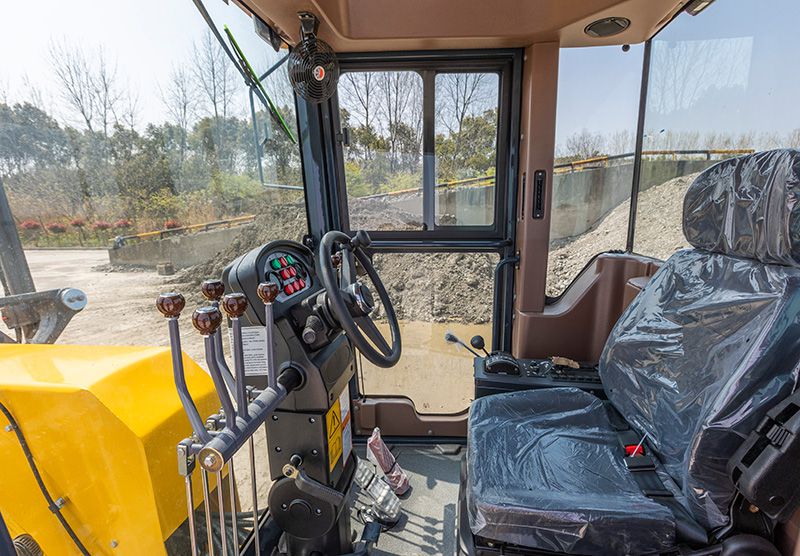

Our 713H motor grader adopts power shift transmission featuring sing-handle manipulation and electro-hydraulic control. With 6 forward and 3 reverse gears shifting, the vehicle is easy and convenient to operate. It also utilizes a highly efficient hydraulic system with hydraulic lock, enabling normal operation of every unit. Moreover, the fully hydraulic brake system provides high working safety and reliability for the equipment.

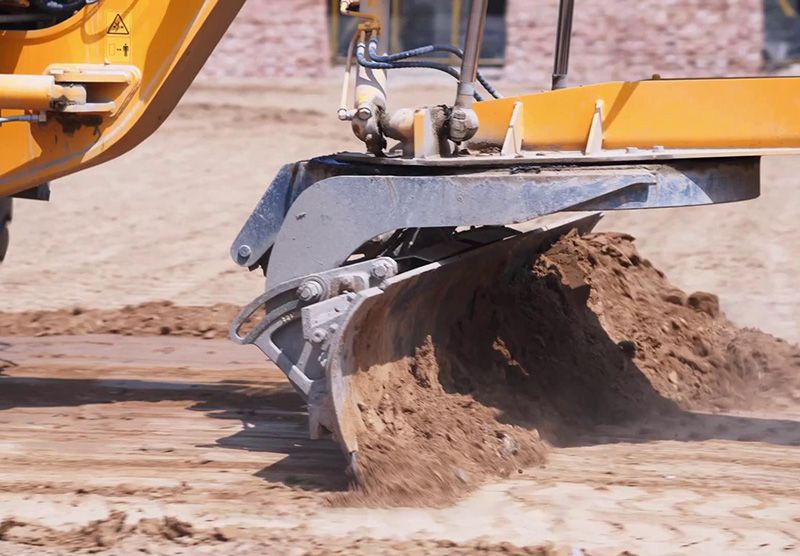

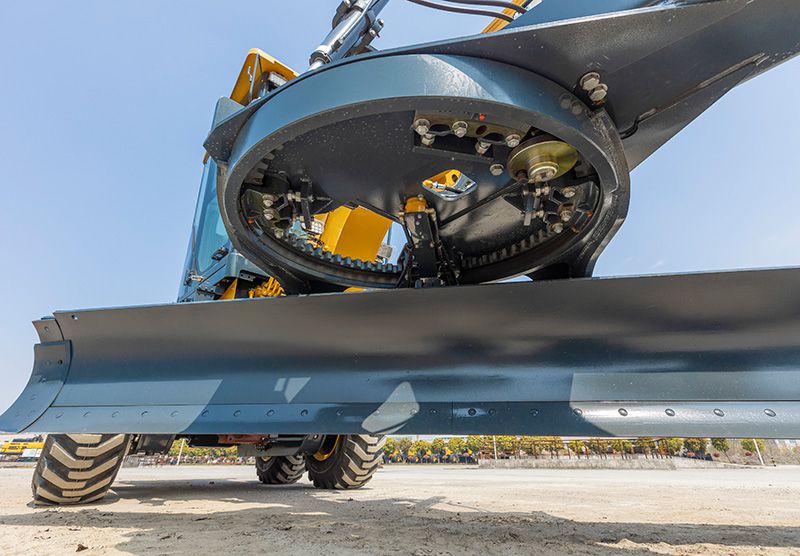

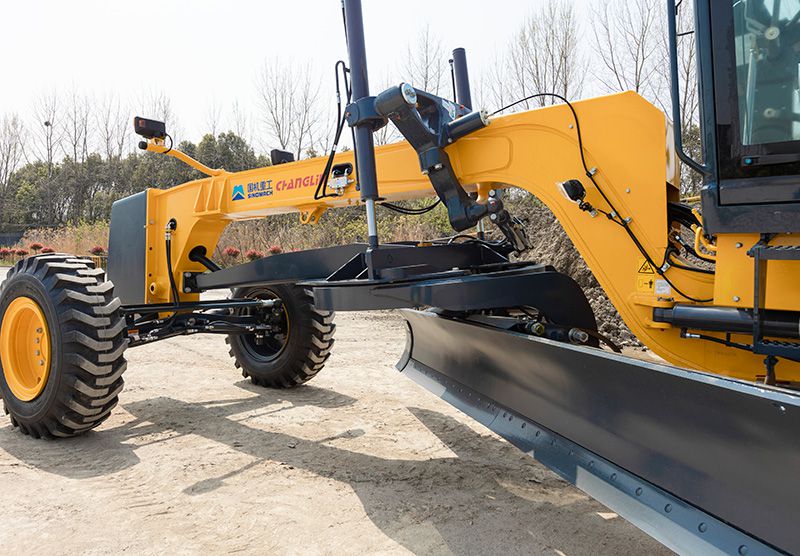

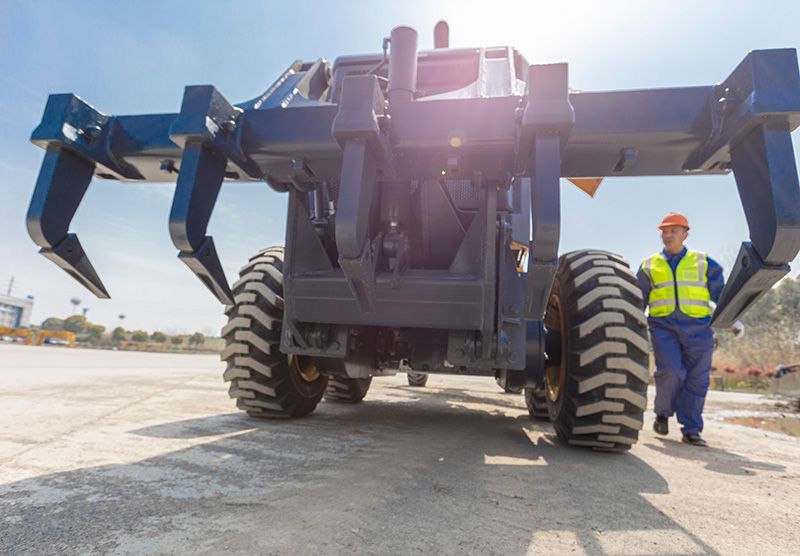

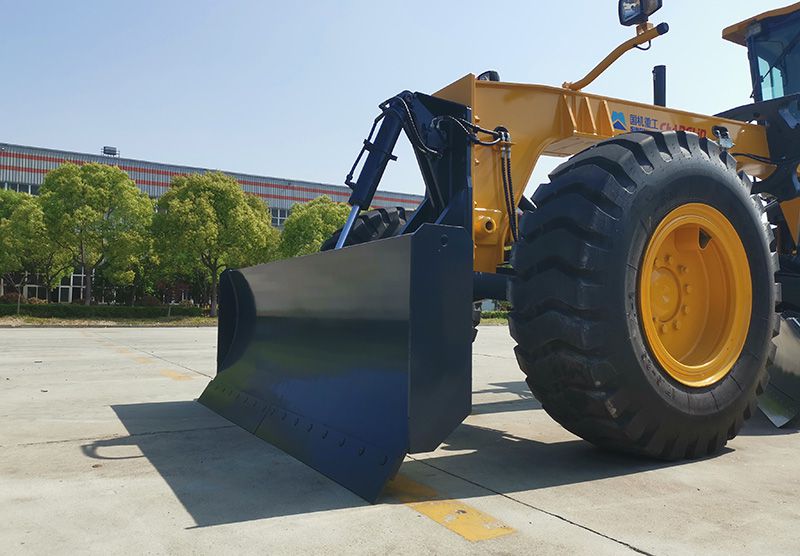

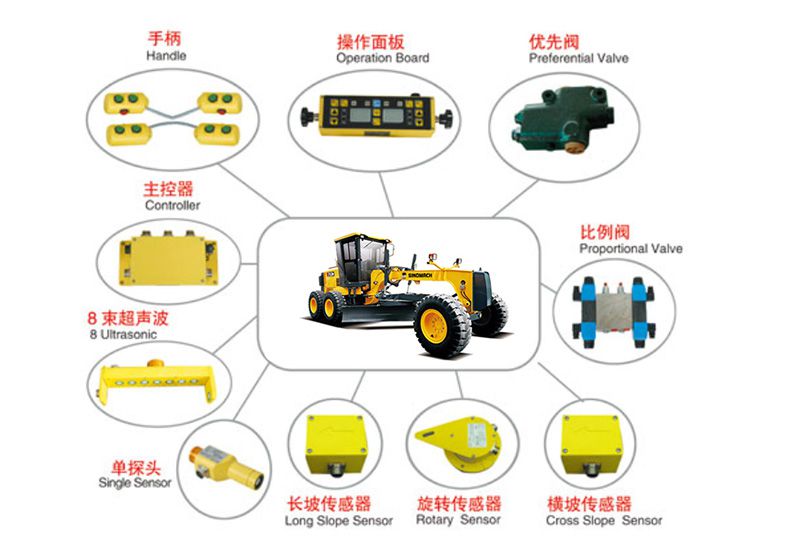

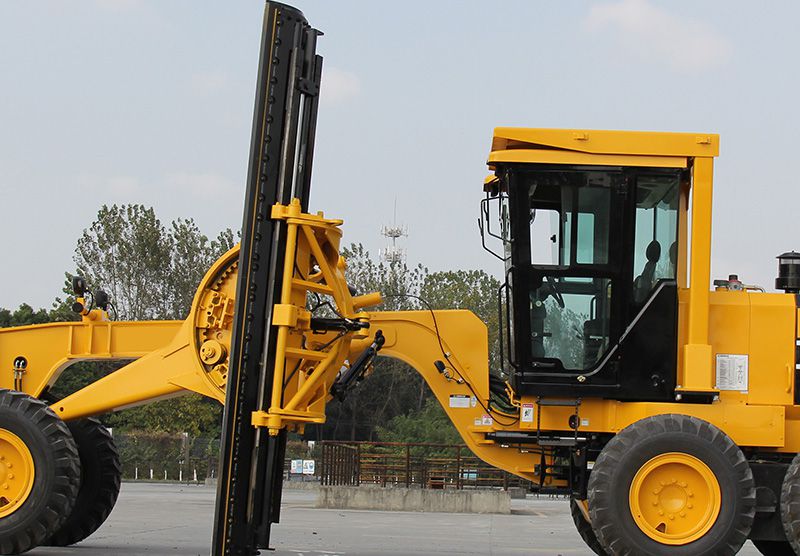

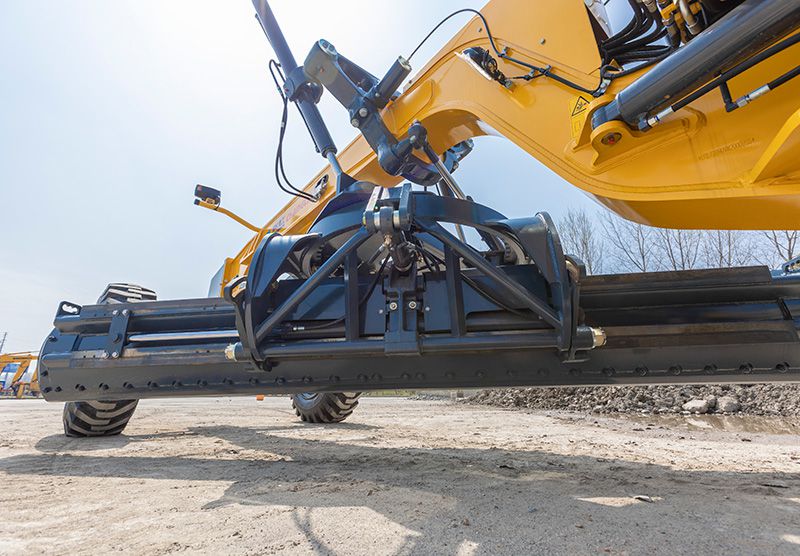

Our road grader is equipped with NO-SPIN differential having auto locking and unlocking function, which ensures great stability and powerful traction. Due to the reasonable axle load allocation, the vehicle can work stably when cutting hard ground surface. It is able to finish heavy-duty task because of the box-type frame and advanced transmission. This engineering machinery can also accomplish various tasks through the flexible blade suspension system and articulated frame.

Specifications of Motor Grader
Overall Dimension
1 Length 8060mm
2 Width 2600mm
3 Height(To the top of the cab) 3370mm
4 Wheel base 5780mm
5 Tread 2120(mm)
Main Technical Specification
1 Operating weight 12000kg
2 Blade length 2658mm
3 Blade height 548mm
4 Shovel Blade thickness 16mm
5 Max lifting height 410mm
6 Max grading depth 560mm
7 Min. turning radius 6600mm
8 Pivot angle frame +260
9 Max turning angle(front wheel) +490
10 Oscillating angle of front axle 320
11 Min ground clearance 430mm
12 Traveling speed(Km/h), 6 forward and 3 reverse
(1) Ⅰ gear forward 6.7
(2) Ⅱ gear forward 10.3
(3) Ⅲ gear forward 16.4
(4) Ⅳ gear forward 24.4
(5) Ⅴ gear forward 35
(6) Ⅵ gear forward 48.5
(7) Ⅰ gear reverse 6.7
(8) Ⅱ gear reverse 16.4
(9) Ⅲ gear reverse 35

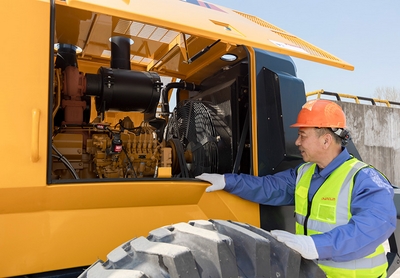

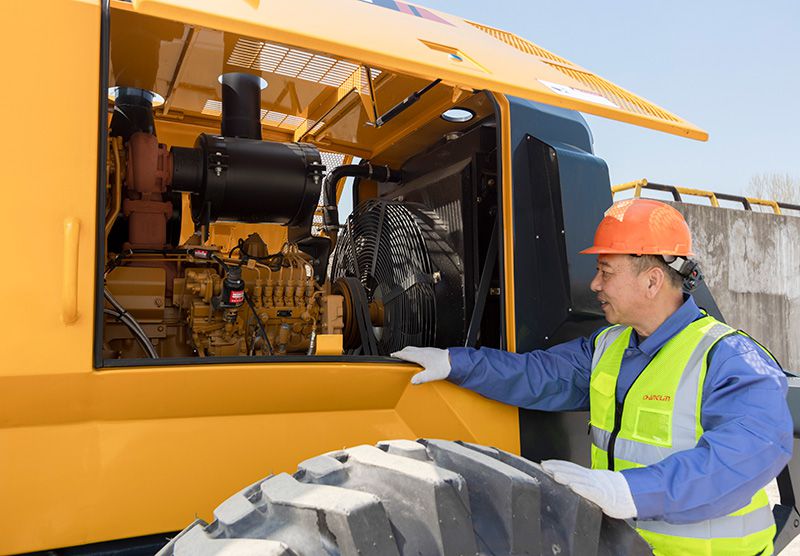

Diesel Engine
1 Model DongFeng Cummins 6BT5.9-C130
2 Type Direct injection. Turbocharged. Water cooling
3 Rated output 97kW
4 Inter-bore of cylinder/Stroke 102/120 (mm)
5 Total exhaust of cylinder 5.9 (L)
6 Power of start motor 6 (KW)
7 Voltage of starting motor 24(V)
8 Rated speed 2200(r/min)
9 Max. Torque 560(N.M)/1500rpm
10 Starting type Electric
11 Min. specific fuel consumption 217(g/Kw.h)
12 Net weight 432 (kg)
Transmission System
1. Torque Converter
1 Model YD13 (CHINESEHANGCI)
2 Type 3-elements.single stage
3 Torque ratio 2.52
4 Cooling type Pressure oil circulating
2. Transmission Case
1 Model YD13 (CHINESE HANGCI)
2 Type power shift, single-shift lever, natural-shift lock device
3 Gear shift position 6 Forward and 3 reverse gears

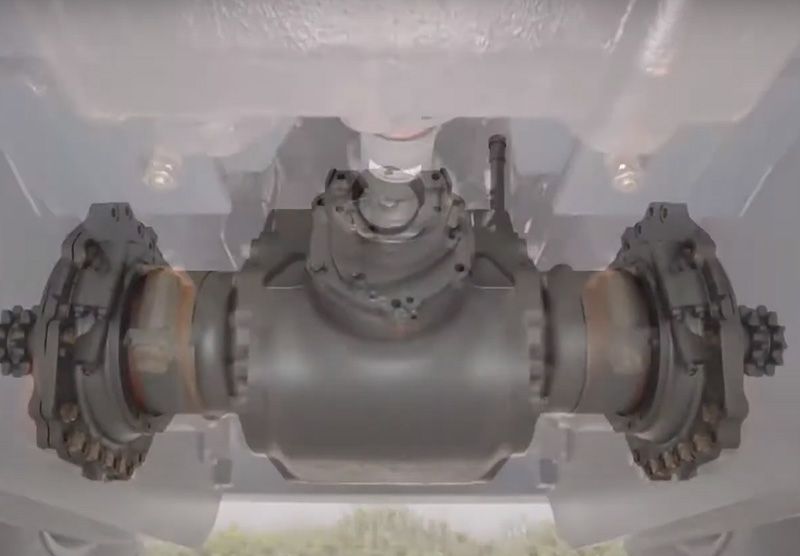

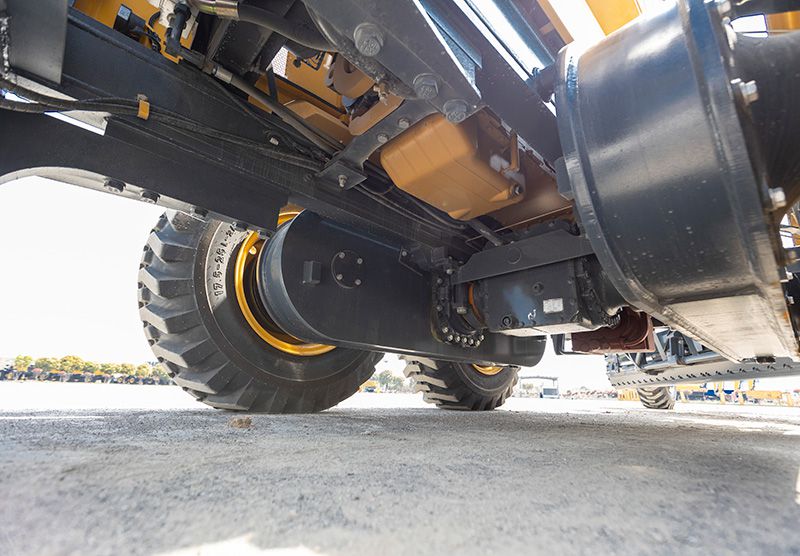

3. Axle and Tire
1 Type of main reducer spiral bevel gear, single stage
2 Gear ratio of main reducer 3.583
3 Type of final reducer Single stage chain-drive
4 Gear of ratio of final reducer 3.75
5 Gear ratio 13.436

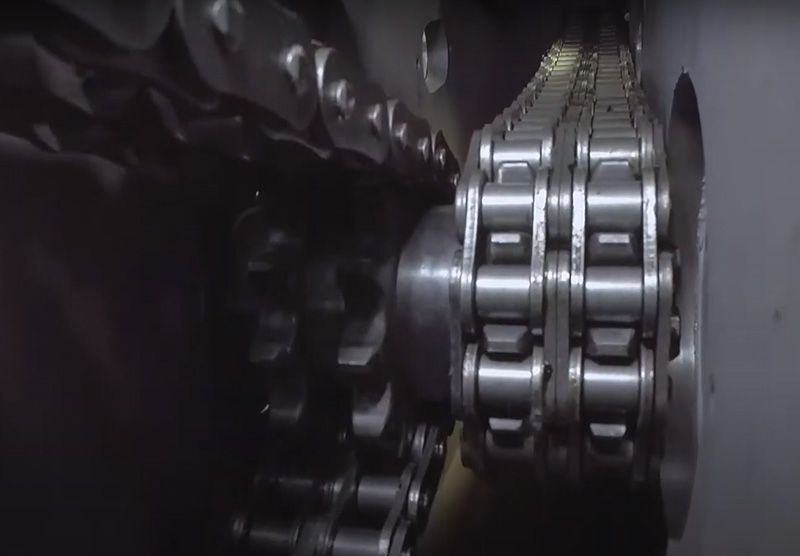

6 Tandem drive Double row roller-chains
7 Size of tire 17.5-25-12PR(standard) 13.00-24-12PR(optional)
Working Device Hydraulic System
1 Model of tandem pump HP51B678-07-07-7N
2 System pressure 17.5MPa

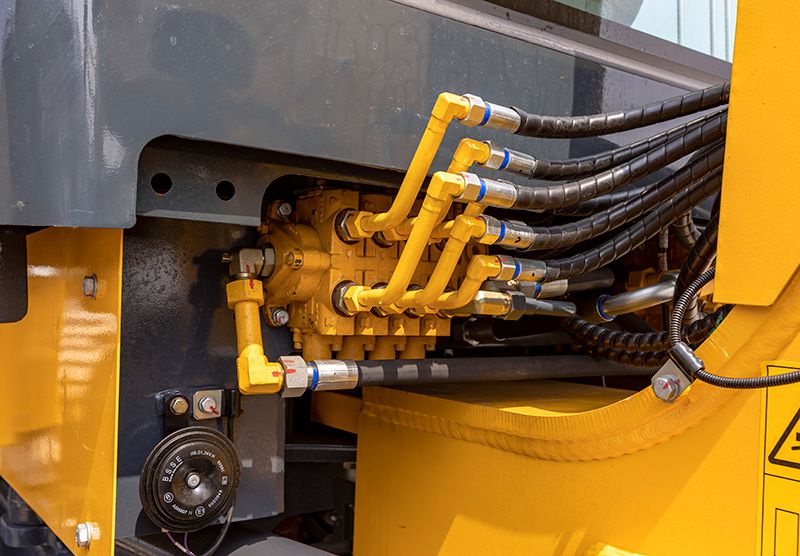

3 Model of distribution valve AX31112-1B,AX31112-2
4 Hydraulic lock KAYABA technology
5 Model of oil motor EATON, JS-130
Steering System
1 Type Fore Tires deflexion
2 Model of redirector BZZ5-E160B+FKB-3022
3 System pressure 16MPa
Brake System
1 Type of service brake Full hydraulic and inner-expanding brake
2 Oil pressure 10Mpa
3 Type of parking brake Mechanical and inner expand hoof brake
Oil Capacity
1 Fuel(diesel) 270L
2 Engine lubricating oil 24L
3 Oil for converter and gear box 28L
4 Oil for hydraulic system 47L
5 Oil for driving rear axles 18L
6 Tandem box 90L
