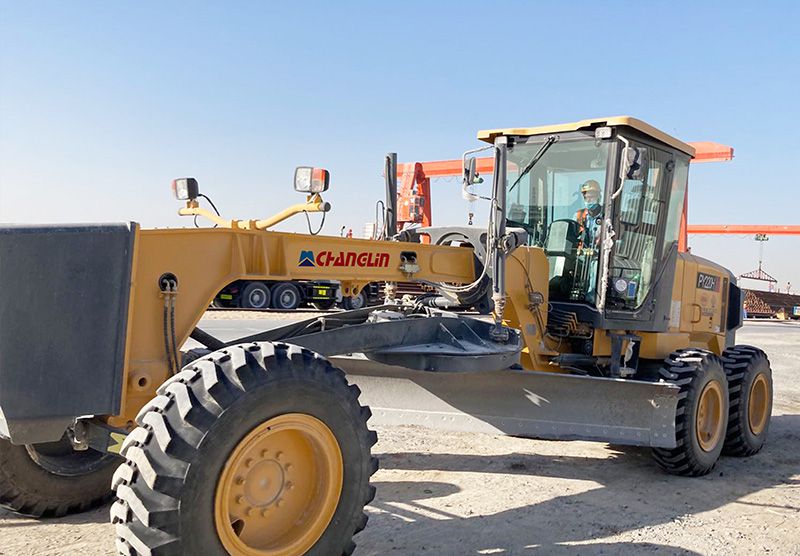

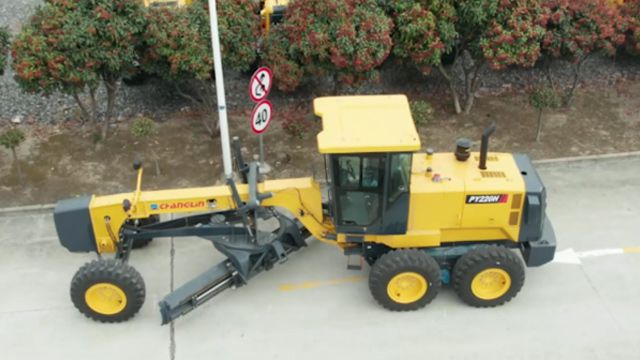

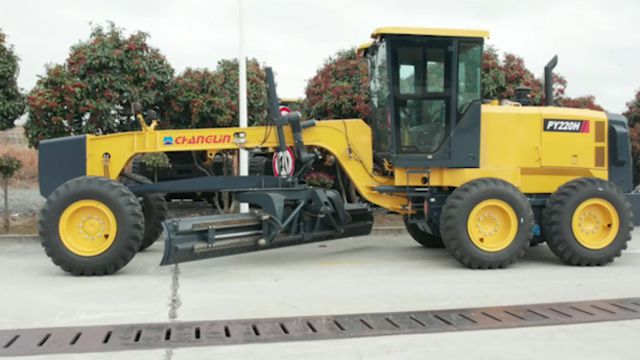

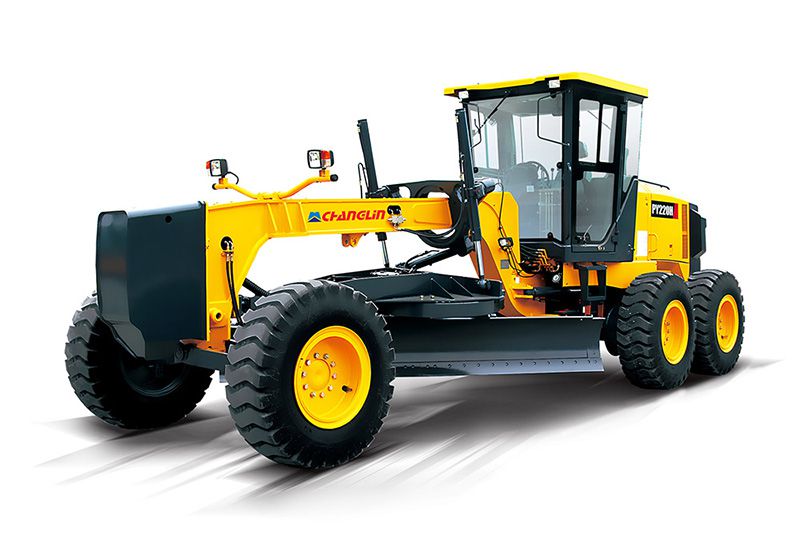

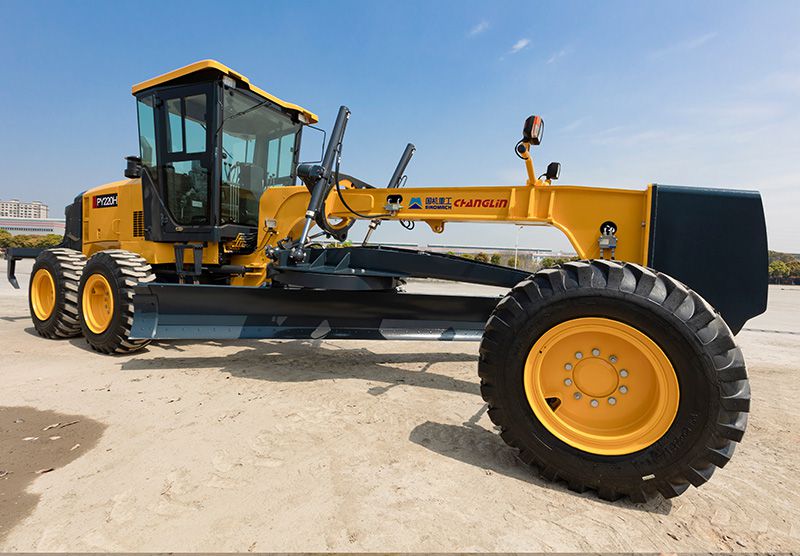

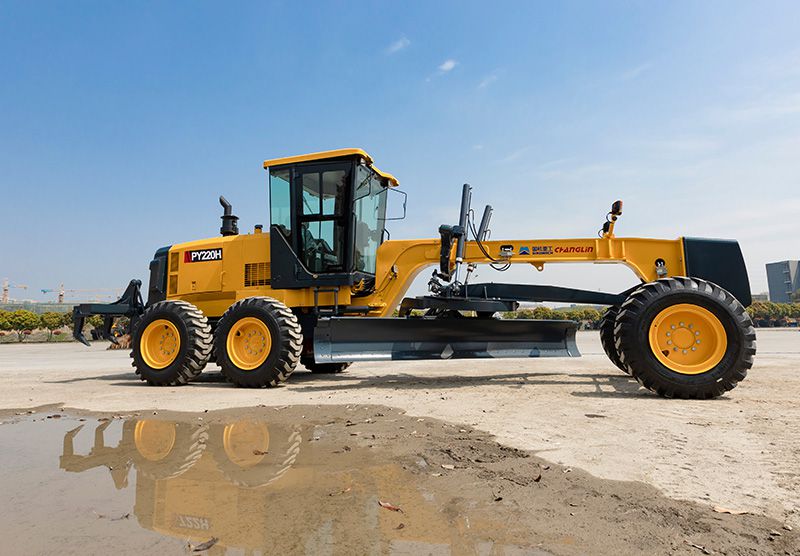

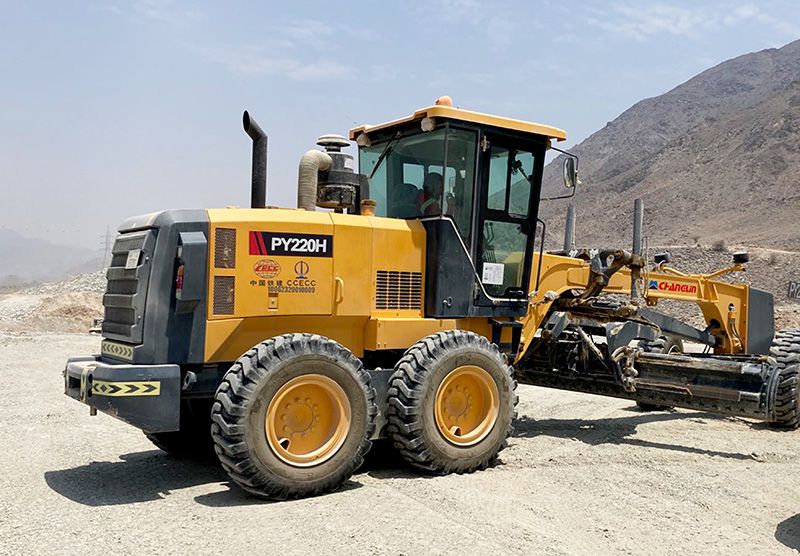

722H Motor Grader

Features of Motor Grader:
1. Our 722H motor grader adopts ShangChai engine with model SC11CB220G2B1.
2. The adopted hydraulic system can achieve efficient control over every working part.
3. The 6 forward and 3 reverse power-shift transmission features sing-handle and electro-hydraulic control, and ensures simple and convenient operation.
4. It is available with the hydraulic lock and auto lock/unlock NO-SPIN differential, providing stability and powerful traction.
5. Designed with perfect axel load allocation, the motor grader is applicable to hard surface cutting with excellent stability.
6. When combined with box-typed frame, the transmission system allows the vehicle to complete heavy-duty work.
7. The road grader is equipped with flexible blade suspension system and articulated frame, making it enjoy a wide working range.

Specifications of Motor Grader
Overall Dimension
1 Length 9235mm
2 Width 2600mm
3 Height(To the top of the cab) 3370mm
4 Wheel base 6100mm
5 Tread 2120(mm)
Main Technical Specification
1 Operating weight 16100kg
2 Blade length 4320mm
3 Blade height 545mm
4 Shovel Blade thickness 16mm
5 Max lifting height 450mm
6 Max grading depth 510mm
7 Min. turning radius 7300mm
8 Pivot angle frame +260
9 Max turning angle(front wheel) +490
10 Oscillating angle of front axle 320
11 Min ground clearance 430mm
12 Cut angle 29-77°
13 Traveling speed(Km/h),6 forward and 3 reverse

(1) Ⅰ gear forward 6.8
(2) Ⅱ gear forward 10.3
(3) Ⅲ gear forward 15.3
(4) Ⅳ gear forward 22.7
(5) Ⅴ gear forward 32
(6) Ⅵ gear forward 47
(7) Ⅰ gear reverse 6.8
(8) Ⅱ gear reverse 15.3
(9) Ⅲ gear reverse 32
Diesel Engine
1 Model ShangChai SC11CB220G2B1 engine
2 Type Direct injection. Turbocharged. Water cooling
3 Rated output 162 kW
4 Inter-bore of cylinder/Stroke 121/152 (mm)
5 Total exhaust of cylinder 10.49 (L)
6 Model of starting motor KB-24V
7 Power of start motor 7.5(KW)
8 Voltage of starting motor 24(V)
9 Rated speed 2200(r/min)
10 Max. Torque 823±6%(N.m)/(1400r/min)
11 Starting type Electric
12 Min. specific fuel consumption <235(g/Kw.h)
13 Engine specific oil consumption 0.7(g/Kw.h)
14 Net weight 960(kg)
Transmission System
1. Torque Converter
1 Model WG200(ZF)
2 Type 3-elements.single stage
3 Torque ratio 2.55
4 Cooling type Pressure oil circulating
2. Transmission Case
1 Model WG200(ZF)
2 Type power shift, single-shift lever, netural-shift lock device
3 Gear shift position 6 Forward and 3 reverse gears
3. Axle and Tire
1 Type of main reducer spiral bevel gear, single stage
2 Gear ratio of main reducer 3.583
3 Type of final reducer Single stage chain-drive
4 Gear of ratio of final reducer 3.75
5 Gear ratio 13.436
6 Max. drawing force 82KN
7 Tandem drive Double row roller-chains
8 Size of tire 17.5-25-14PR(standard) 14.00-24-16PR(optional)
Working Device Hydraulic System
1 Model of oil pump(include steering pump) CBGj2045/1025
2 System pressure 175(kgf/cm2)
3 Model of distribution valve HUSCO5000-D
4 Hydraulic lock KAYABA technology
5 Model of oil motor EATON, JS-130
Steering System
1 Type Fore Tire deflexion
2 Model of steering gear BZZ1-E160B+FKA-163022
3 System pressure 16MPa
Brake System
1 Type of traveling brake Hydraulic assisted and inner-expanding brake
2 System pressure 100(kgf/cm2)
3 Type of parking brake Mechanical and inner-expanding brake
Oil Capacity
1 Fuel(diesel) 378L
2 Engine lubricating oil 24L
3 Oil for converter and gear box 28L
4 Oil for hydraulic system 117L
5 Oil for driving rear axles 18L
6 Tandem box 90L
