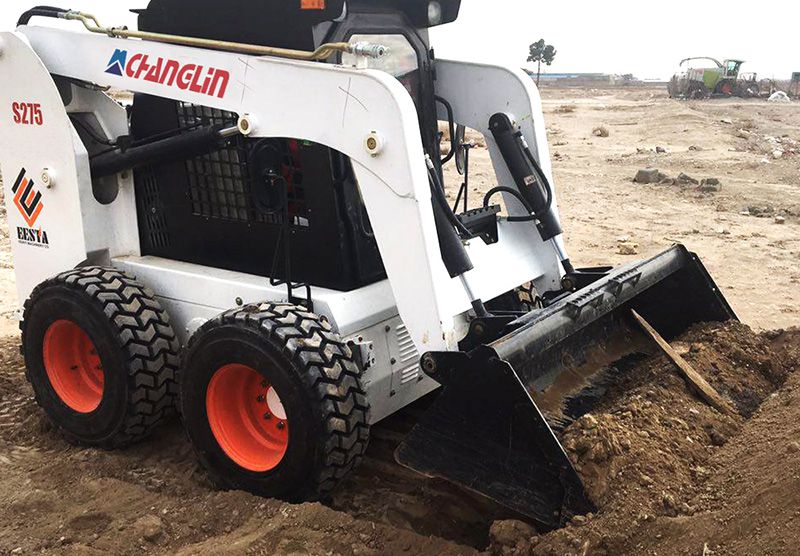

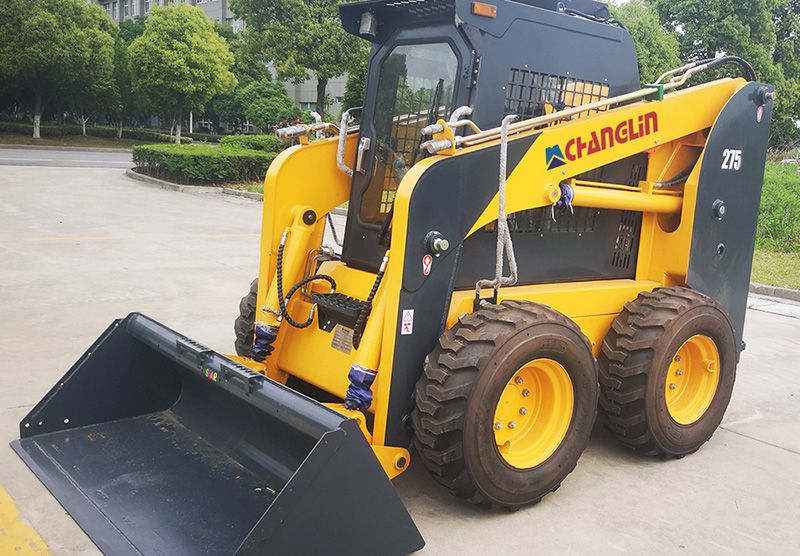

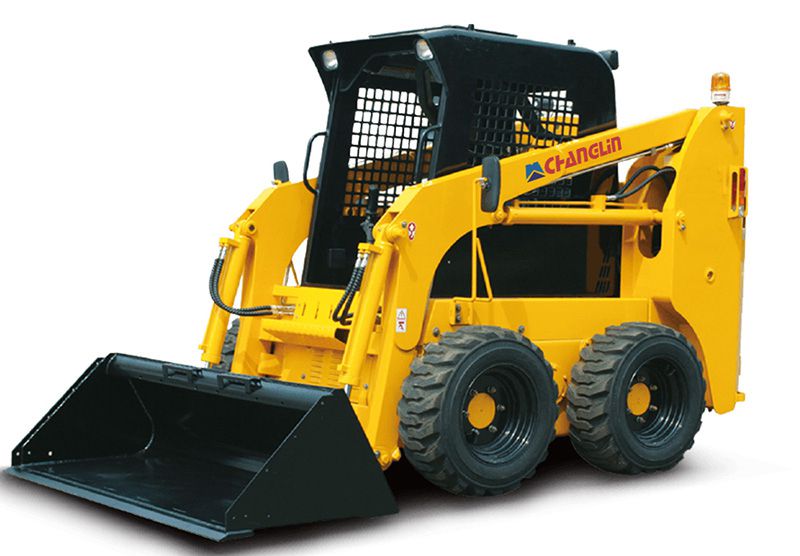

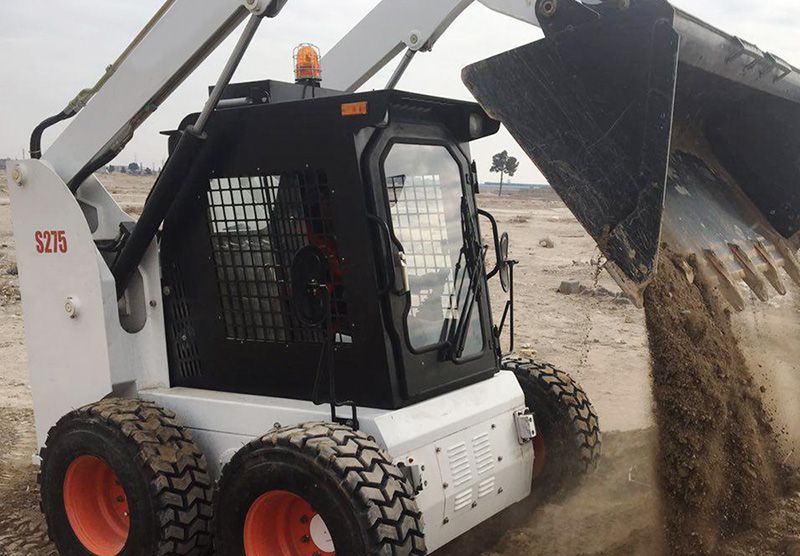

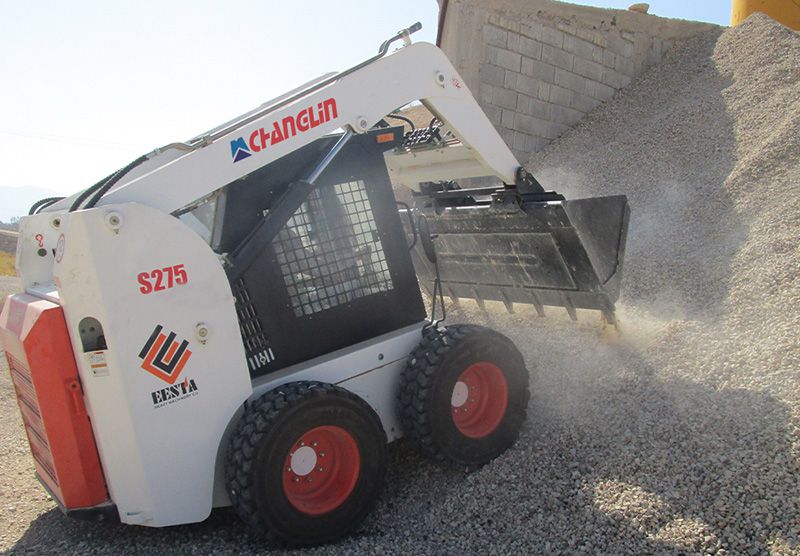

275 Skid Steer Loader

275 Skid Steer Loader

Features of 275 Skid Steer Loader
Equipped with reliable Perkins engine
Bucket automatic leveling ability
Double handles control loading and traveling, easy & reliable operating

Specifications
Overall Dimension
1 Length(with bucket on ground) 3550(mm)
2 Width(to outside of wheels) 1800(mm)
3 Bucket width 1890(mm)
4 Height(To the top of the cab) 2020(mm)
5 Wheel base 1110(mm)
6 Tread 1494(mm)
7 Min. ground clearance 220(mm)
Main Technical Specification
1 Rated load 950(Kg)
2 Operating weight 3500KG
3 Rated bucket capacity 0.53(m3)
4 Max. breakout force 27kN
5 Static tipping loads ≥20kN
6 Max. dump clearance 2326(mm)
7 Dump reach 785(mm)
8 Dump angle at any position ≥400
9 Angle of departure 300
10 Digging depth(with bucket bottom horizontal) 0(mm)
11 Min. turning radius
(1)Outside of bucket 2290(mm)
(2)Outside of front wheel 1307(mm)
(3)outside of frame tail 1540 (mm)
12 Lifting time of bucket ≤4.2(sec.)
13 Lowering time of bucket ≤2.5(sec.)
14 Dumping time ≤2.6(sec.)
15 Traveling speed(Km/h),1forward and 1 reverse
(1)forward gear 0~12
(2)reverse gear 0~12
Diesel engine
1 Model Perkins 804D-33T 804D-33T
2 Type Direct injection. Turbocharged. Water cooling
3 Rated output 55 (kW)
4 No-bore of cylinder/stroke 4-94×120 (mm)
5 Total exhaust of cylinder 3.3 (L)
6 Voltage of starting moto 12(V)
7 Rated speed 2500(r/min)
8 Max. Torque 245(N.M)/1600rpm
9 Starting type Electric
10 Net weight 265(kg)
Power train
Driving system
1 Model Hydrostatic four wheel drive
2 Type Driving pump+traveling motor+Chain driving
3 Model of driving pump MPT046C-BA
4 Model of driving motors MS06(French POCLAIN)
5 Type of chain driving Double row chain driving
6 Ratio of chain driving 30:11
7 Model of chain 20A-1X64 20A-1X50
8 Size of tire 12-16.5NHS-10PR L-2B
9 Charge pressure 24.8bar
9 System pressure 30MPa
Working Device Hydraulic System
1 Model of oil pump WP15A1B330R05KA147N (Italian CASAPPA)
2 System pressure 21MPa
3 Model of distribution valve SDM141 ( Italian WALVOIL)
4 Model of Leveling valve V-VCFL (Italian WALVOIL)
5 (D*L)Dimension of lifting cylinder Ф80*40*838(mm)
6 (D*L)Dimension of tilting cylinder Ф80*35*371(mm)
Brake System
1 Type of traveling brake Traveling brake depend on static hydraulic tow of close-circuit hydraulic system
2 Type of parking brake Traveling motors within brake actuated via operating solenoid valve
Oil Capacity
1 Fuel(diesel) 83(L)
2 Engine lubricating oil 10(L)
3 Oil for chain box(one side) 5.7(L)
4 Oil for hydraulic system 50(L)
