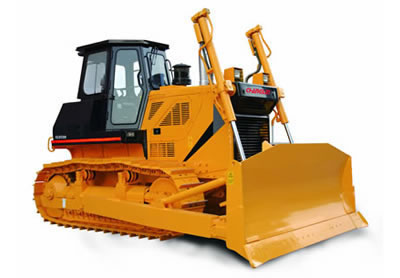

CLD230 Bulldozer

CLD230 Bulldozer

Features of CLD230 Bulldozer
1. The engine is made in compliance with national emission standards for energy saving and environmental protection.
2. American Donaldson brand air-filter and pre-filter for extended engine lifespan and service intervals
3. The motor muffler removes the need for an ejector to increase the diameter of the exhaust pipe and decrease exhaust pressure, thus lowering fuel consumption.
4. Hot and cold air is completely separated from each other for improved heat dissipation of the cooler.
5. The hydraulic filter is added with an alarm system to timely remind users of cleaning the filter element or replacing the hydraulic oil.
6. The air cooler is placed under the engine hood to gain a superb cooling effect.
7. Humanized design for convenient maintenance
8. The hydraulic cylinder of the bulldozer is smartly placed to lower the load-bearing capacity and also provide much convenience for engine maintenance.

Specifications of CLD230 Crawler Dozer
Product model CLD230
Length×Width×Height(mm) 5590×3725×3522
Operating weight(Kg) 24220
Diesel engine type Cummins NTAA855-C280S20
Rated output(KW) 179
Max. lift above ground(mm) 1210
Max. drop below ground(mm) 540
Track width(mm) 560
