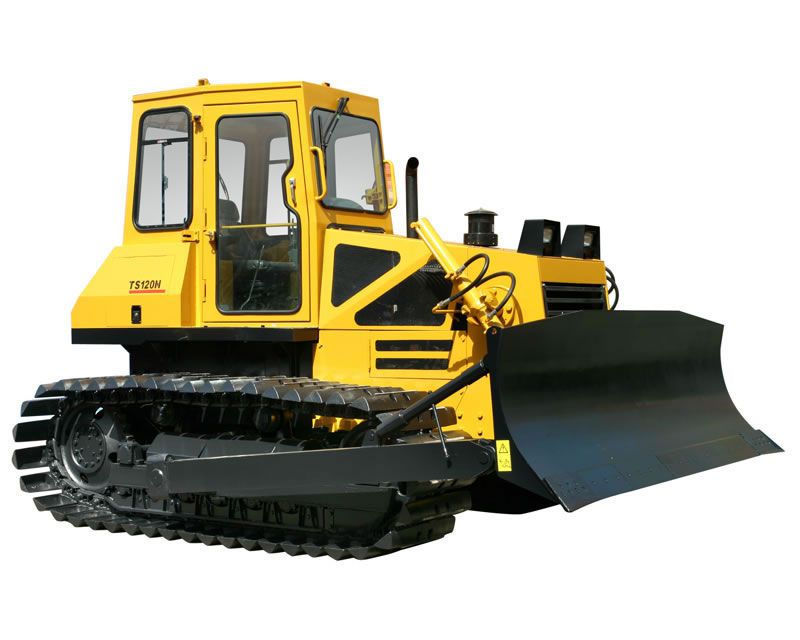

Designed to push large quantities of soil, sand, rubble, or other such materials, our TS120N crawler bulldozer is provided with the YTO LR6A3Z-20 diesel engine which enables increased horsepower and improved fuel economy. This tracked tractor with a front blade is available in 4 forward gears and 2 reverse gears. Such power shift transmission enables this heavy equipment to be extremely flexible in various applications.
Technical Parameters of TS120N Crawler BulldozerMain Technical Specifications | ||
Total weight | 13500kg | |
Dimension | Total length | 4575mm |
Total width | 3375mm | |
Total height | 2940mm | |
Dozer Blade | ||
Width × Height | 3375×1040mm | |
Maximum lifting height | 955mm | |
Maximum embedded depth into soil | 380mm | |
Cutting angle(adjustable) | 55° | |
Max. drawbar pull | 115kN | |
Ground pressure | 37kPa | |
Diesel Engine | ||
Engine | Model | YTO LR6A3Z-20 |
Rated power | 93hp | |
Rated rotor speed | 2000rpm | |
Theoretical speeds of all gears | ||
Forward Gear I - IV | 2.4~10.6km/h | |
Backward Gear I - II | 3.9~7.1km/h | |
Fuel consumption of the engine | ≤246g/kw.h | |
Engine max. torque | 526N.m |
