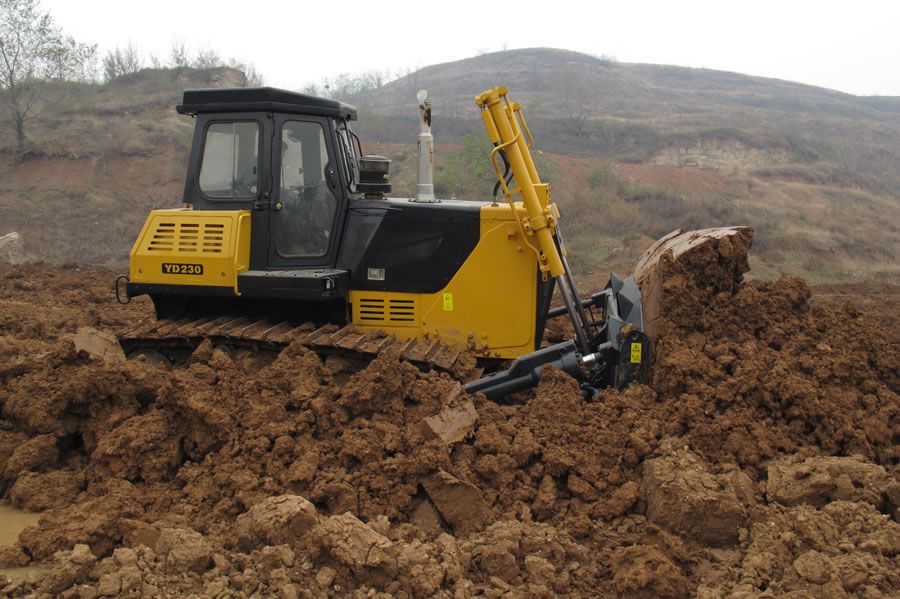

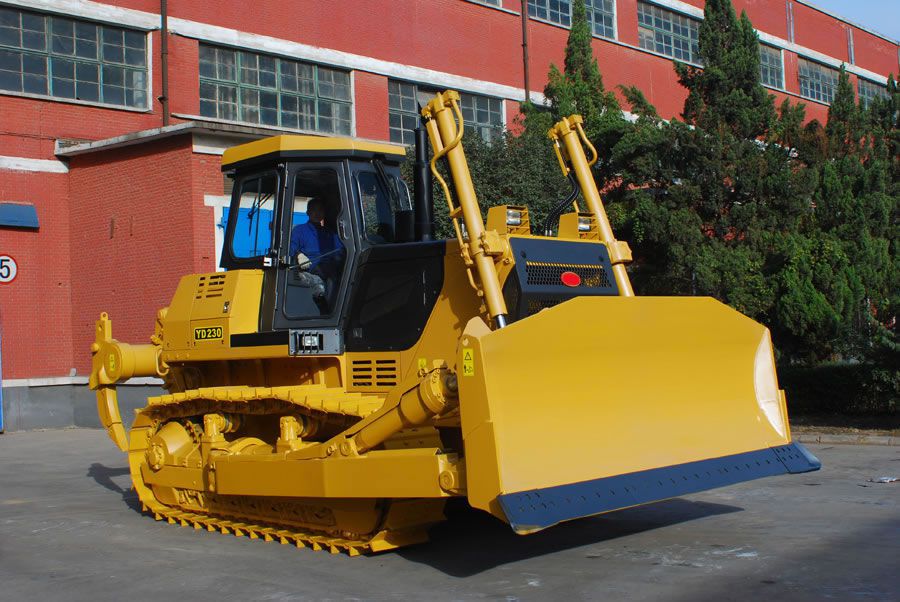

YD230 Crawler Bulldozer

YD230 Crawler Bulldozer

YD230 BULLDOZER
Main Features of the Crawler Bulldozer

1. The crawler bulldozer utilizes an engine with NationalⅡemission standard, and is energy efficient and environmental friendly.
2. Using the American Donaldson air filter and postfilter device, the crawler bulldozer comes with prolonged engine life and increased maintenance interval.
3. The engine muffler, with ejector device removed, is designed with improved exhausting system, which allows the crawler bulldozer to have reduced exhaust pressure and reduced fuel consumption.
4. A sealing mechanism is adopted to isolate the cool and hot air for the cooler, thus improving the heat dissipation performance of the cooling system.
5. The hydraulic filter of the crawler bulldozer comes with an alarming device, so as to timely remind users cleaning filter element or replacing hydraulic oil.
6. Air conditioner is available under the engine hood, which allows the bulldozer to increase cooling effect by making use of the cool air flow from the engine.

Technical Specification of the Crawler Bulldozer
Total Weight 24220kg Reverse Ⅲ Gear 4.9~13.6km/h
Max. Towing Force 266KN Track Board Width 560mm
Engine Model NTAA855-C280S20 Land Pressure 76kPa
Engine Rated Power 179kw Overall Dimension(L×W×H) 6830×3725×3522mm
Engine Rated Speed 2000r/min Bulldozer Shovel (W×H) 3725×1395mm
Forward Ⅲ Gear 3.8~11km/h Max. Lifting Height of Bulldozer 1210mm

Our company is a specialized crawler bulldozer manufacturer in China. We offer a wide range of products that includes a cold recycling machine, landfill compactor, asphalt mixing plant, and motor grader, among others.
