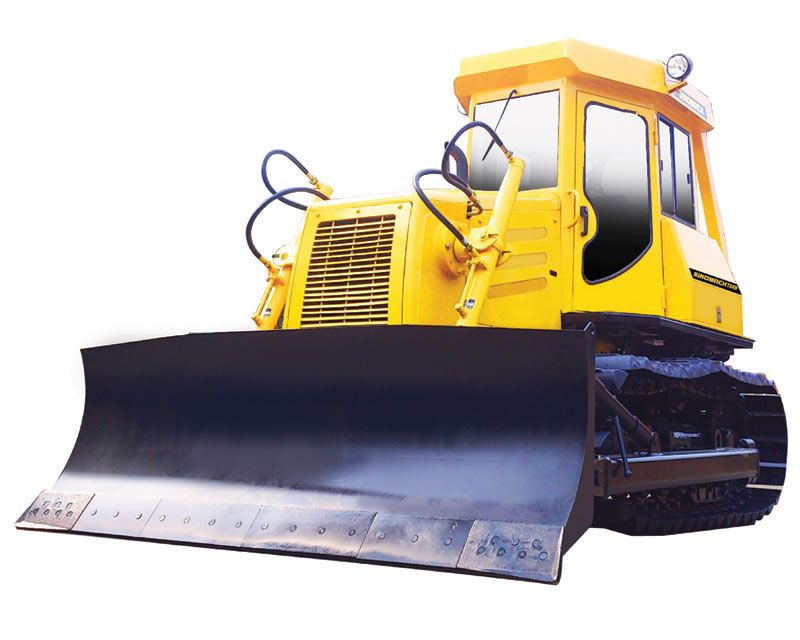

T80 Crawler Bulldozer

T80 Crawler Bulldozer

Features of T80 Crawler Bulldozer
1. The T80 crawler bulldozer, or called crawler dozer is powered by the YTO LR4A3Z-22 diesel engine which is emission-certified and allows less fuel consumption while providing high horsepower.
2. This earth mover comes with a 4-gear forward and 2-gear reverse power shift transmission that ensures constant power transfer under load and allows total flexibility to match ground speed to the load.

Technical Parameters of T80 Crawler Bulldozer
Main Technical Specifications
Total weight 8600kg
Dimensions Total length 4200mm
Total width 2480mm
Total height 2740mm
Track gauge 1500mm
Track shoe width 400mm
Dozer Blade
Width × Height 2480×922mm
Max. lifting height (mm) 736.5mm
Max. embedded depth into soil 370mm
Cutting angle (adjustable) 55°
Max. drawbar pull 69kN
Ground pressure 53kPa
Diesel Engine
Engine Model YTO LR4A3Z-22
Rated power 70 hp
Rated rotor speed 2200 r/min
Theoretical speeds of all gears
Forward Gear I - IV 2.4~10.4km/h
Backward Gear I - II 4.9~8.9km/h
Fuel consumption of the engine ≤246g/kw.h
Engine max torque 313N.m
