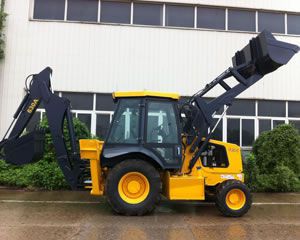

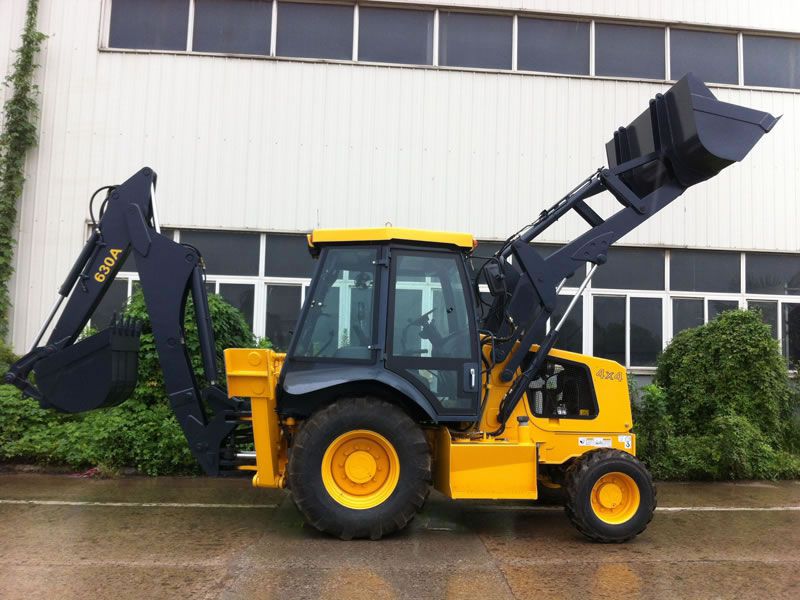

630A Backhoe Loader
630A Backhoe Loader
Our 630A backhoe loader serves as one of the most popular construction machinery. Due to its versatility and compact size, the loader digger is widely used in urban engineering and small construction projects such as building a house, fixing city roads, etc. This heavy equipment vehicle uses the dependable WD DEUTZ WP4G95E221 diesel engine which provides high power and amazing fuel efficiency. Best-in-class cab of the backhoe loader offers spacious and comfortable working environment as well as incredible visibility.
Technical Parameters of 630A Backhoe Loader| No. | Items | 630A | |
| 1 | Rear backhoe bucket capacity | 0.3m3 | |
| 2 | Front loader bucket capacity | 1m3 | |
| 3 | Max. lifting capacity of front loader | 31kN | |
| 4 | Total weight | 7400Kg | |
| 5 | Engine model | WD DEUTZ WP4G95E221 | |
| 6 | Rated power of engine | 70kW | |
| 7 | Rate speed of engine | 2200 r/min | |
| 8 | Wheel base | 2155.5mm | |
| 9 | Wheel tread | Front wheel | 1880mm |
| Rear wheel | 1700mm | ||
| 10 | Rotation angle of backhoe | Left | 90º |
| Right | 90º | ||
| 11 | Max. gradeability | 30% | |
| 12 | Min. ground clearance | 355mm for 2WD; 275mm for 4WD | |
| 13 | Ground clearance at tail of the backhoe loader | 380mm | |
| 14 | Min. turning radius | 4380mm (4WD) | |
| 15 | Working parameters of Backhoe | Max. digging depth | 4338mm |
| Max. digging radius | 5481mm | ||
| Max. dumping height | 3737mm | ||
| 16 | Working parameters of Loader | Max. dumping height | 2714mm |
| Max. dumping reach | 845mm | ||
| Dump angle | 43.5º | ||
| Digging depth | 80mm | ||
| 17 | Max. breakout force (bucket) | >60kN | |
| 18 | Max. digging force | 50±10%KN | |
| 19 | Max. drawbar pull | 70±5%KN (4WD) | |
| 20 | Hydraulic system pressure | Loading | 21MPa |
| Digging | 21MPa | ||
| Steering | 14MPa | ||
| Type | Single pump | ||
| 21 | Loader working cycle | Lifting | 4.5s |
| Lowering | 3.5s | ||
| Dumping | 1.5s | ||
| 22 | Gears and travel speed | Gear I forward/reverse | 6.0/6.0 km/h |
| Gear II forward/reverse | 9.6/9.6 km/h | ||
| Gear III forward/reverse | 20.5/20.5 km/h | ||
| Gear IV forward/reverse | 38/38 km/h | ||
| 23 | Type of traveling brake | Wet-type | |
| 24 | Tire model | Front wheel (2WD) | 11L-16(tire pressure: 4.4 Bar) |
| Front wheel (4WD) | 12.5-16NHS(tire pressure: 4.4 Bar) | ||
| Back wheel | 19.5L-24(tire pressure: 2.4 Bar) | ||
| 25 | Dimensions (transportation, L×W×H) | 7085×2313×3424mm | |
