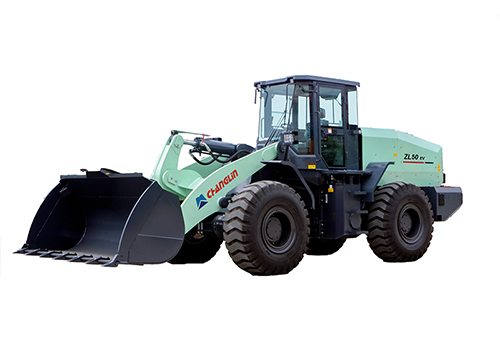

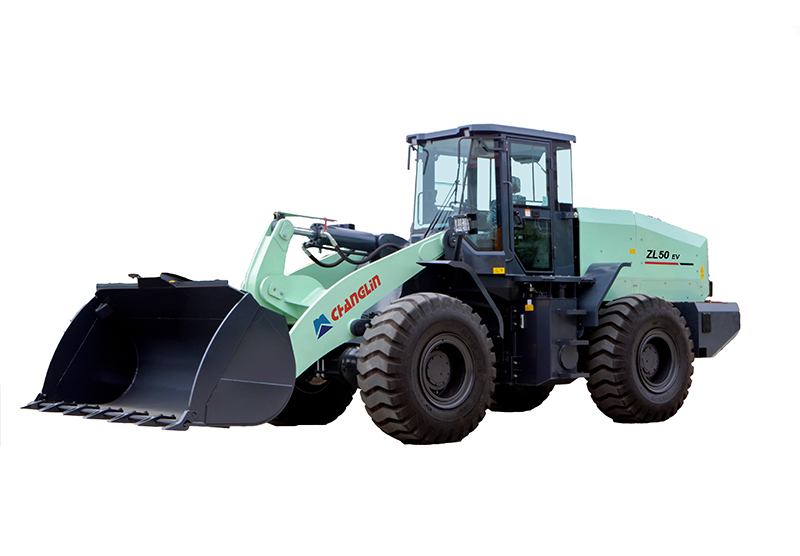

Wheel Loader ZL60EV

ZL60EV is a heavy-duty 6-ton electric wheel loader designed for high-intensity operations in mining, quarrying, port handling, and large-scale infrastructure projects.

Powered by dual permanent magnet synchronous motors, including a 200 kW travel motor and a 140 kW hydraulic motor, the machine is also equipped with a high-capacity LFP battery system. It delivers a maximum breakout force of 175 kN and a traction force of 171 kN, matching the performance of conventional diesel loaders while achieving zero on-site emissions and significantly lower operating costs.

With 4–8 hours of operation per charge, intelligent electronic control, and integrated thermal management, this heavy-duty wheel loader ensures stable performance under demanding conditions. Engineered for global deployment, it combines a heavy-duty structural design with advanced electric-drive technology to provide a reliable and sustainable solution for modern material handling operations.

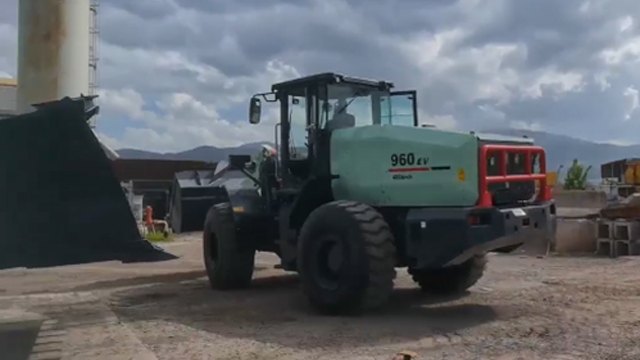

Video
Wheel Loader ZL50EV
  • Rated Load: 6000KG
  • Travel Motor: 200kW
  • Hydraulic Motor: 140kW
  • Rated Bucket Capacity: 4.5m³
Inquiry
Specifications
Technical Specification
Rated load (kg) 6000
Operating mass (kg) 19200(1±5%)
Bucket capacity (m³) 3.5-4.5
Lifting time (s) 5.1
Unloading time (s) 1.3
Gradeability (°) 30
Max. traction force (kN) 171
Max. breakout force (kN) 175
Battery life (h) 4-8
Motor System
Torque (N.m) Travel motor: 1200 / hydraulic motor: 350
Output (kW) Travel motor: 200/ hydraulic motor: 140
Speed (rpm) 0-6000
Battery System
Battery type LFP
Battery options 400kWh – Qiyuan Green Power
Replaceable battery design
Features

  • 6-Ton Heavy-Duty Performance Provides strong lifting and climbing capability comparable to traditional diesel loaders, making it suitable for mining and continuous heavy-load operations.

    • Rated load: 6000 kg
    • Max breakout force: 175 kN
    • Max traction force: 171 kN
    • Gradeability: 30°

  • High-Capacity LFP Battery with 4-8 Hours Runtime High-capacity LFP battery system ensures safe operation, long service life, and stable performance in both high- and low-temperature environments.

    • Battery type: Lithium Iron Phosphate (LFP)
    • Battery configuration: Replaceable battery design
    • Capacity: 400 kWh (optional)
    • Battery life: 4–8 hours
    • Management system: Intelligent Thermal Management System (ITMS)

  • Dual Motor Independent Drive System The independent drive system improves energy efficiency, optimizes power distribution, and enhances responsiveness across different operating conditions.

    • Travel motor: 200 kW
    • Hydraulic motor: 140 kW
    • Torque system: Precise electronic torque control (ETC)
    • Operating condition: Four selectable working modes

  • Reduced Operating Cost & Enhanced Reliability This heavy-duty wheel loader lowers the total cost of ownership (TCO) through simplified maintenance and improved operational safety.

    • No fuel consumption
    • Integrated PDU safety management
    • No engine oil or exhaust system maintenance
    • IP67 protection rating for high-voltage components

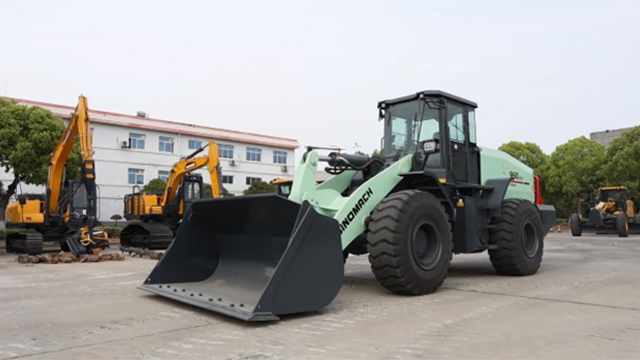

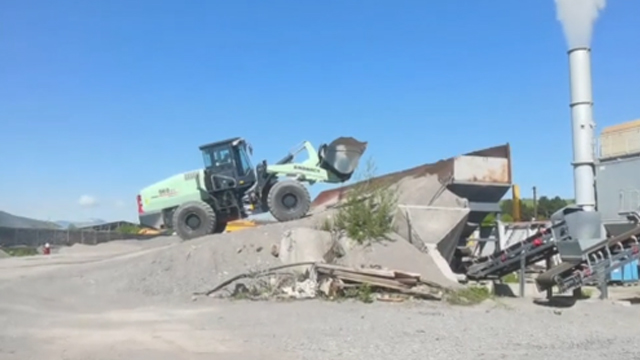

Videos
