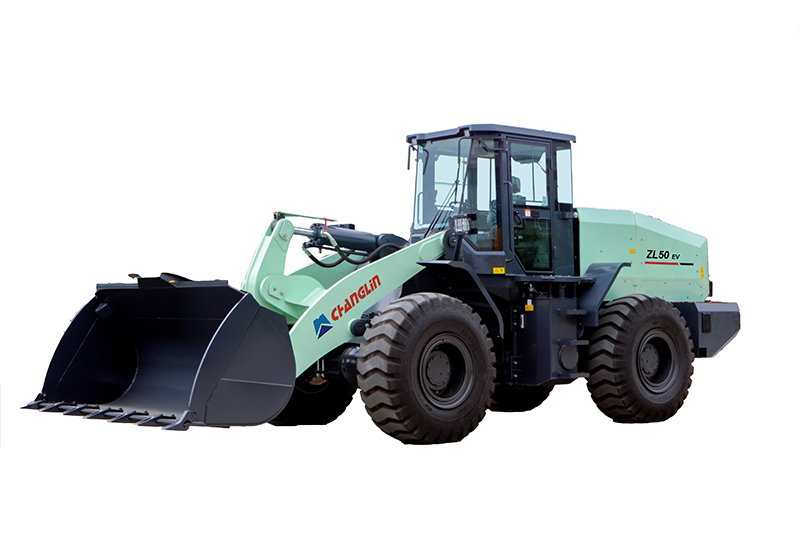

Wheel Loader ZL50EV

The ZL50EV is a heavy-duty 5.5-ton electric wheel loader designed as an alternative to conventional diesel-powered machines in demanding applications such as mining, quarrying, port handling, and infrastructure projects.

The wheel loader is equipped with a high-capacity lithium iron phosphate (LFP) battery pack and dual permanent magnet synchronous motors, including a 200 kW travel motor and a 140 kW hydraulic motor. This configuration delivers strong breakout force and traction performance comparable to traditional diesel loaders, while achieving zero on-site emissions and significantly lower operating costs.

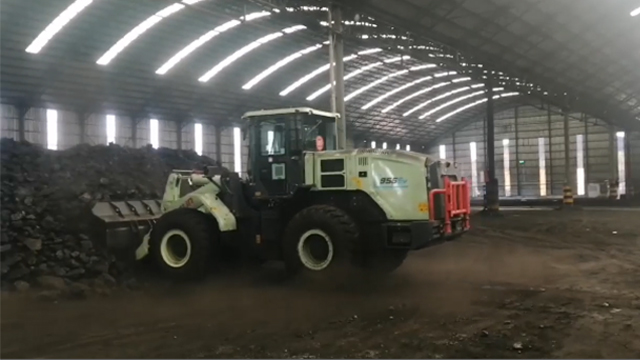

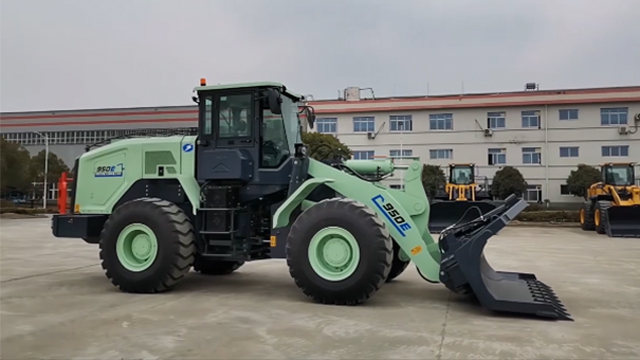

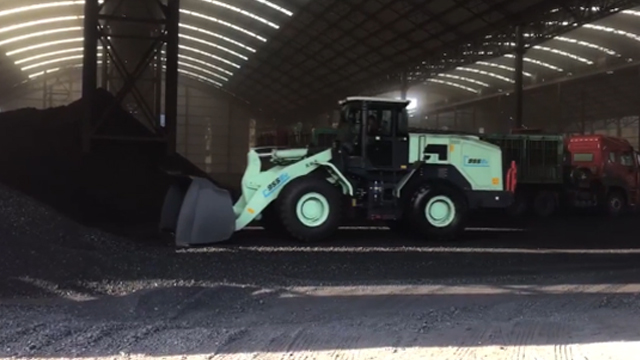

Video

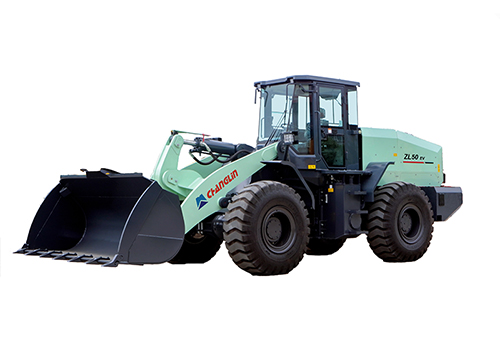

Wheel Loader ZL50EV

The intelligent electronic control system precisely manages power distribution between the travel and hydraulic systems, improving energy efficiency and enabling 4–8 hours of operation per charge. The wheel loader also supports DC fast charging and features an integrated thermal management system, ensuring stable performance in both high- and low-temperature environments.

Designed for global deployment, the electric wheel loader is suitable for sea freight with MSDS documentation and has been successfully delivered in volume to overseas markets. Its core electrical components are backed by a warranty of up to 5 years or 10,000 operating hours, making it a reliable, sustainable, and cost-efficient solution for modern construction and material handling operations.

  • Rated Load: 5500KG
  • Travel Motor: 200kW
  • Hydraulic Motor: 140kW
  • Rated Bucket Capacity: 4.5m³
Inquiry
Specifications
Technical Specification
Rated load (kg) 5500
Operating mass (kg) 18200(1±5%)
Bucket capacity (m³) 2.7-4.5
Lifting time (s) 5.1
Unloading time (s) 1.3
Gradeability (°) 30
Max. traction force (kN) 164
Max. breakout force (kN) 165
Battery life (h) 4-8
Motor System
Torque (N.m) Travel motor: 1200 / hydraulic motor: 350
Output (kW) Travel motor: 200 / hydraulic motor: 140
Speed (rpm) 0-6000
Battery System
Battery type LFP
Battery options 400kWh – Qiyuan Green Power
Replaceable battery design
Features

  • Powerful Dual-Motor Electric Drive System Equipped with dual permanent magnet synchronous motors (DPSMs), delivering performance comparable to traditional 5-ton diesel loaders while eliminating fuel consumption and emissions.

    • Travel motor: 200 kW
    • Hydraulic motor: 140 kW
    • Max breakout force: 165 kN
    • Max traction force: 164 kN
    • Gradeability: 30°

  • High-Capacity LFP Battery System High-capacity LFP battery system ensures high safety, extended cycle life, and stable operation in extreme climates.

    • Battery type: Lithium Iron Phosphate (LFP)
    • Battery configuration: Replaceable battery design
    • Capacity: Up to 400 kWh
    • Battery life: 4–8 hours
    • Management system: Intelligent Thermal Management System (ITMS)

  • Fast Charging & Global Deployment Capability Fully compliant with international transport and global chemical safety regulations (MSDS) for lithium-battery equipment, the wheel loader has been successfully delivered in bulk to global markets.

    • Supports 240 kW DC fast charging
    • Output voltage range of 200–1000 Vdc
    • MSDS certified for sea freight transport

  • 5-Year Core Electric System Warranty Core electrical components are covered by a warranty of up to 5 years or 10,000 operating hours, helping ensure long-term reliability and lower ownership risk. Covered components include:

    • Battery system
    • Drive motors
    • Motor control system
