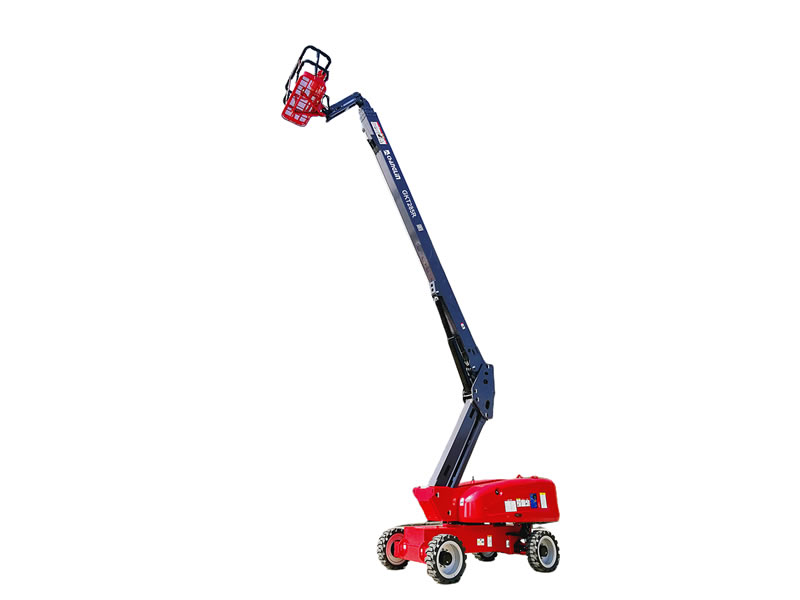

Telescopic Boom Lift GKT285R

This equipment is a straight boom aerial work platform, also known as a telescopic boom lift. It features a multi-section telescopic boom with a maximum working height of 28.5 meters. Designed for demanding job sites, it provides outstanding horizontal outreach and exceptional vertical reach. With its 360° continuous rotation at the base, the telescopic boom lift offers wide-area coverage and enables operators to access hard-to-reach positions with efficiency and ease.

  • Max. Working Height: 28.5m
  • Lift Capacity: 454/300kg
  • Max. Load Capacity: 3persons/2persons
Inquiry
Video

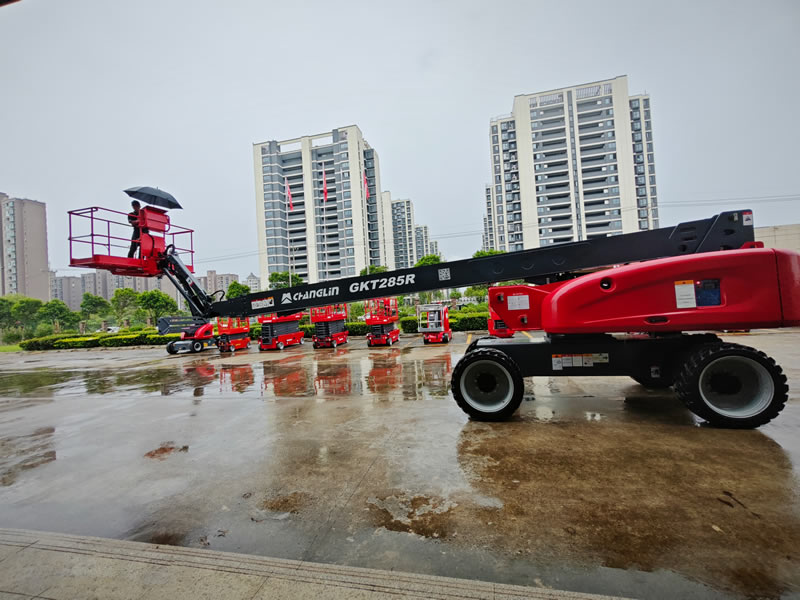

Telescopic Boom Lift GKT285R
  • Telescopic Boom Lift GKT285R
  • Telescopic Boom Lift GKT285R
  • Telescopic Boom Lift GKT285R
  • Telescopic Boom Lift GKT285R
    • Specifications
    Model GKT285R
    Dimensions
    Max. working height (m) 28.5
    Max. platform height (m) 26.5
    Max. outreach (m) 21
    Max. horizontal work reach (m) 21.6
    Length (stowed) (m) 12.05
    Width(stowed) (m) 2.5
    Height (stowed) (m) 2.8
    Wheelbase (m) 3.0
    Ground clearance (m) 0.44
    Platform size (m) 2.44*0.9*1.1
    Performance
    Lift Capacity (restricted/unrestricted) (kg) 454/300
    Max. load capacity (restricted/unrestricted) (persons) 3/2
    Drive speed (stowed) (km/h) 5.1
    Drive speed(raised) (km/h) 1.1
    Gradeability (4WD) 45%
    Turntable rotation (angle/continuity) 360° continuous
    Platform rotation 180°
    Max. tilt angle (front to back/side to side) 5°/3°
    Turing radius (inside/outside) (m) 3.6/6.88
    Turntable tail swing (m) 1.8
    Max. lateral force (restricted/unrestricted) (N) 400
    Max. wind speed (m/s) 12.5
    Tire specification/type 355/55D625 foam filled tire
    Power
    Drive wheels x steering wheels 4×2
    Engine (power/speed/specification/brand) Deutz TD2.9 L4, 55.4kW, Euro 5 emission standard, Weichai WP2.3NG75E441, 55.4kW, State IV
    Hydraulic tank capacity (L) 180
    Diesel fuel tank capacity (L) 130
    Weight
    Total weight (kg) 17110
    Features
    Safe and Reliable
    • Powered by a lithium battery system with BMS, ensuring safety, reliability, eco-friendliness, and zero emissions.
    • High-capacity battery provides extended endurance for longer operating cycles.
    • Equipped with tilt protection, overload protection, long-angle sensing, and anti-crush devices, with real-time monitoring of platform load and machine status for enhanced safety.
    • Standard IoT system with intelligent large display enables remote monitoring and easy equipment management anytime, anywhere.
    Excellent Terrain Performance
    • Load-sensing system ensures stable, precise, fast, safe, and energy-efficient response; hydrostatic leveling system provides smoother operation.
    • 40% gradeability, floating axle, and high-torque drive deliver superior off-road capability and strong power, supported by an efficient drive system with smoother control.
    • Handles up to a 5° tilt angle, with floating axle design to adapt easily to complex terrain conditions.
    Configurations
    Standard Features
    Hydraulic leveling platform 5-inch full-color display Maximum tilt angle of 5° Foot switch
    180°hydraulic rotation platform Diagnosis system Dual-speed motor 2.44m guardrail
    Rear inspect and drive confirmation function Swing out engine Flow distributing & anti-slip system
    Three joysticks with gradual proportional control Engine anti-restart protection Foam-filled tire
    Horn and buzzer safety warnings Automatic engine shutdown in case of failure 4-wheel braking system
    Flashing light Engine preheater Emergency brake release
    Tilt alarm Emergency stop system 4-wheel drive
    Overload sensor Emergency lowering system Turntable with 360° continuous rotation
    Optional Features
    Platform swing gate Front driving lights
    Hydraulic oil cooler AC power source
    Low-temperature hydraulic oil GPS
    Alarm package Platform work lights
