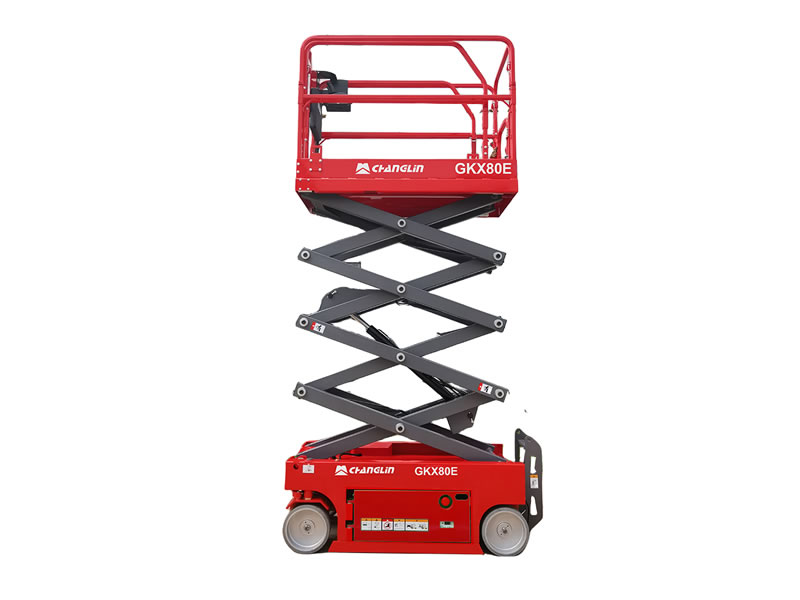

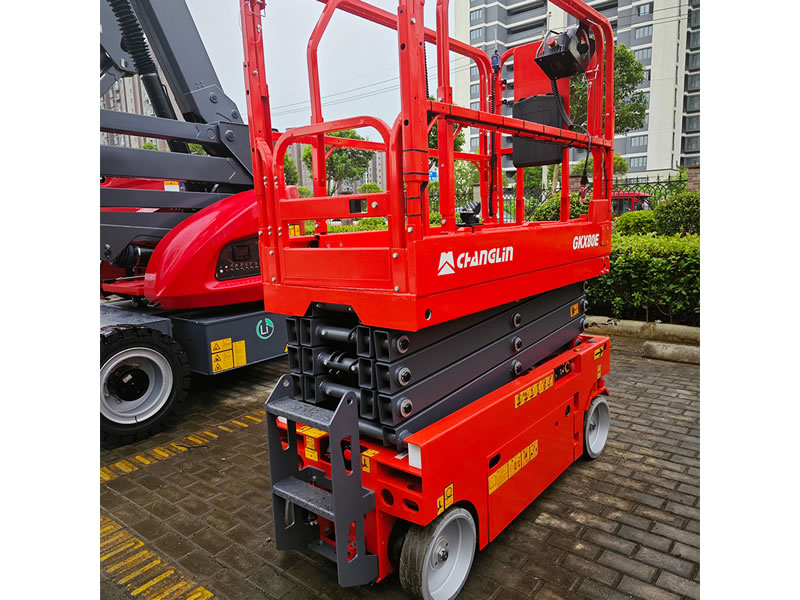

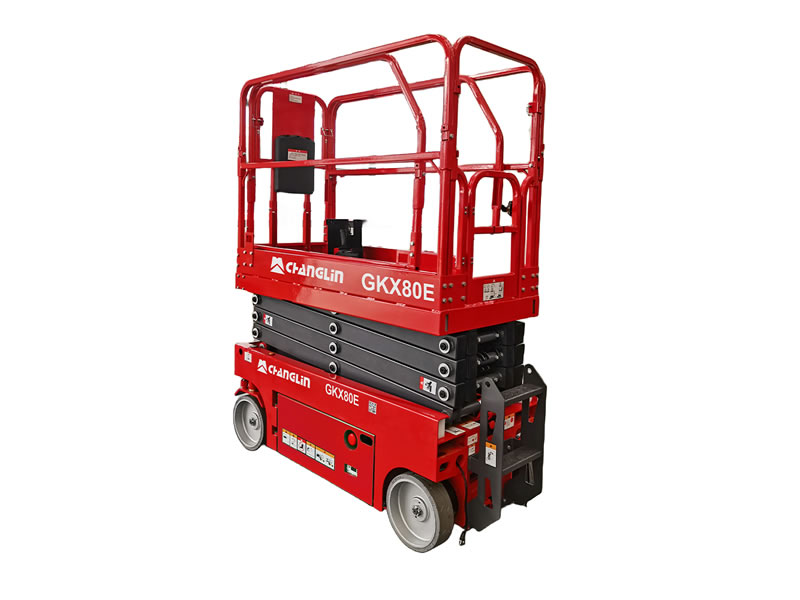

Electric Scissor Lift GKX80E

This electric scissor lift offers a maximum working height of 7.8 meters. Designed with vertical lifting capability, a spacious platform, and excellent stability, it is ideal for applications such as interior decoration, warehouse operations, and power maintenance tasks.

  • Max. Working Height: 7.8m
  • Lift Capacity: 230kg (115kg)
  • Max. Load Capacity: 2 persons
Inquiry
Electric Scissor Lift GKX80E
  • Electric Scissor Lift GKX80E
  • Electric Scissor Lift GKX80E
  • Electric Scissor Lift GKX80E
    • Specifications
    Model GKX80E
    Dimensions
    Max. platform height (m) 5.8
    Max. working height (m) 7.8
    Max. outreach (m) 0.9
    Overall length (m) 1.83
    Overall width (m) 0.77
    Overall height (folded guardrails) (m) 1.86
    Overall height (unfolded guardrails) (m) 2.18
    Wheelbase (m) 1.36
    Ground clearance (m) 0.08
    Pothole protection board ground clearance (down) (m) 0.02
    Platform size (L×W×H) (m) 1.64*0.75*1.1
    Length (extended platform) (m) 2.55
    Skirting board height (m) 0.15
    Performance
    Lifting capacity (kg) 230
    Lifting capacity (extended platform) (kg) 115
    Max. load capacity (indoor) 2 persons
    Drive speed (stowed) (km/h) 3.8
    Drive speed (raised) (km/h) 0.7
    Rising time (empty load) (s) 14
    Lowering time (empty load) (s) 11
    Gradeability (2WD) 25%
    Tilt sensor (front to back/side to side) 3°/1.5°
    Turing radius (inside/outside) 0.8m/1.56m
    Max. lateral force (indoor) (N) 400
    Max. wind speed 0
    Tire specification/type 323×100mm/solid tire
    Power
    Drive mode Hydraulic/electric drive, 2WD×2WS
    Power unit motor (voltage/power) 24V/3.3kW
    Hydraulic tank capacity (L) 8
    Hydraulic system pressure (Mpa) 21
    Battery specifications (lead-acid battery/lithium battery) (Ah) 235
    System voltage (V) 24
    Control voltage (V) 24
    Charger (input voltage/output current) 90-264V/30A
    Weight
    Weight (kg) 1542
    Standard GB/CE
    Features
    Flexible Operation and Handling
    • Ultra-stable design significantly enhances safety, featuring a compact body and a spacious working area
    • Standard forklift pockets for efficient equipment transport
    • Foldable guardrails for easier and more convenient transportation
    Reduced Maintenance Costs
    • High component compatibility ensures easy spare parts replacement without supply shortages
    • Double-door design for quick and convenient access during maintenance
    • Integrated fault diagnosis system displays error information for fast troubleshooting
    Enhanced Reliability
    • Multi-layer protection for the lifting circuit ensures safe and reliable operation
    • Protective anti-collision strips effectively prevent scratches and impacts
    • Automatic pothole protection and tilt protection guarantee safe working conditions
    Configurations
    Standard Features
    Manual emergency lowering system Safety support bar Emergency stop button
    Platform swing gate Charging indicator Drivable at full height
    Extended platform Diagnosis system Automatic pothole protection
    Foldable platform Maintenance free battery Flashing light
    Manual brake release 2x2 drive Control with proportional operation
    Non-marking tires Anti-collision strip Automatic brake system
    AC power supply to platform Emergency lowering system Forklift and lifting holes
    Buzzer Tilt alarm Dual flashing beacon
    Hour meter Manual control box
    Optional Features
    Air line to platform Overload sensor Top stop sensor
    Power socket to platform GPS Electrophoretic coating process
    Platform work light Lithium battery
