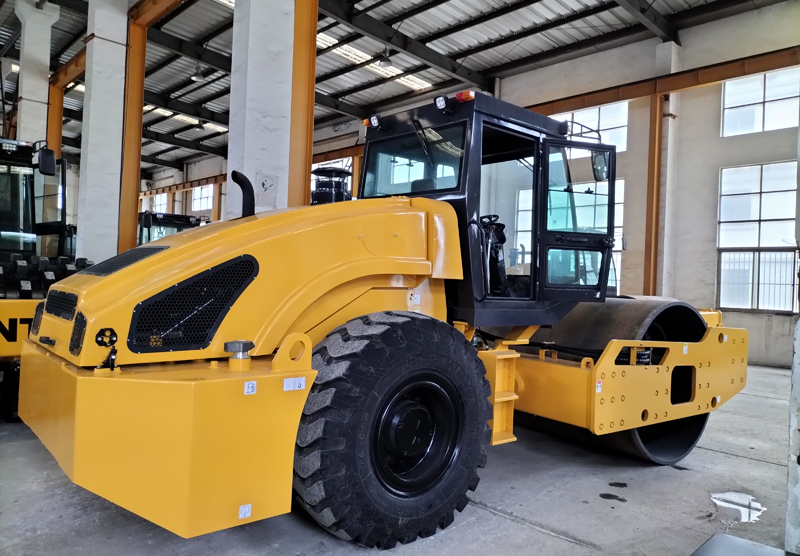

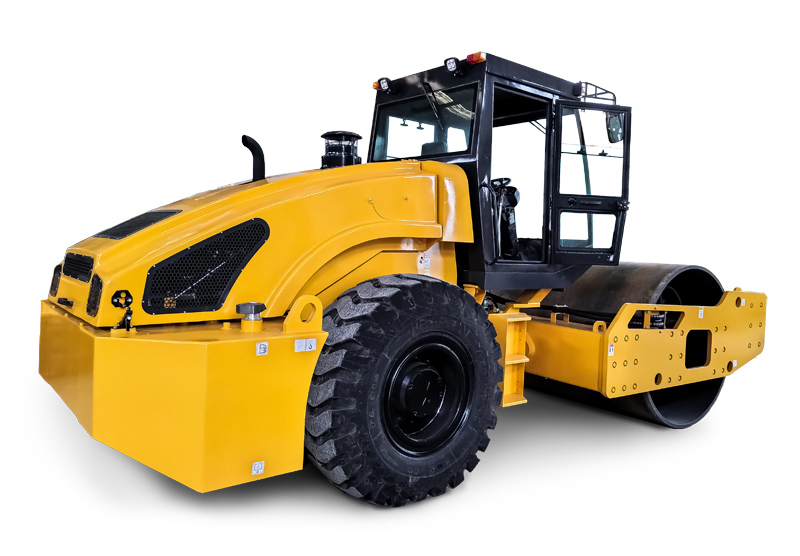

Single Drum Road Roller (Hydraulic Drive) GYS161J

Designed with hydraulic drive, the single drive road roller is a common type of compaction equipment, which is used for compacting non-stick materials and semi-viscous materials such as sand, gravel, gravel, rock fill, etc. It’s suitable for the compaction of large-scale engineering foundations such as high-grade roads, dams, railways, airports, etc.

  • Operating weight: 16000KG
  • Drum diameter : 1550mm
  • Compaction width : 2130mm
Inquiry
Single Drum Road Roller (Hydraulic Drive) GYS161J
  • Single Drum Road Roller (Hydraulic Drive) GYS161J
  • Single Drum Road Roller (Hydraulic Drive) GYS161J
    • Specifications
    Model GYS161J
    Operating weight (kg) 16000
    Drum diameter (mm) 1550
    Compaction width (mm) 2130
    Static linear load (N/cm) 370
    Vibratory frequency (Hz) 32
    Vibratory amplitude (mm) 1.8/0.9
    Centrifugal force (kN) 325/165
    Travelling speed (km/h) 0-6/0-10
    Gradeability 30%
    Engine model WP6G160E22
    Rated power/speed (kW/rpm) 118/2200
    Tyre 20.5-25
    Dimensions (L×W×H) (mm) 6240×2280×3080
    Features
    • Hydraulic rear wheel drive, two-speed option.
    • Open type hydraulic vibration, single frequency and double amplitude vibration exciter, large excitation force, good compaction performance.
    • Hydraulic steering, articulated frame, flexible steering, easy operation.
    • Equipped with the special drive axle of the road roller, which allows for large transmission torque, and easy shifting.
    • Designed with hydraulic service brake, and disc parking brake, ensuring high safety and reliability.
    • The rear hood can be turned up at a large angle for easy maintenance.
    • Hydraulic components adopt internationally renowned brands with reliable performance.
    • Standard cabin with optional A/C.
