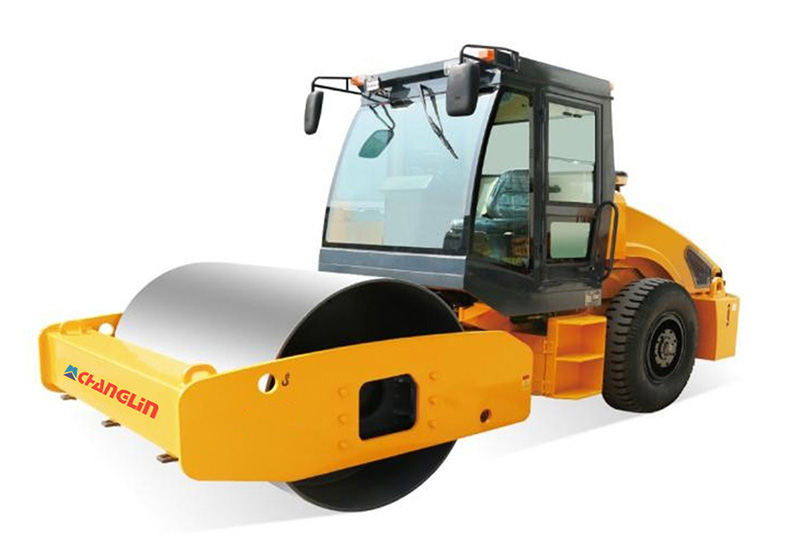

Road Roller YZ8

YZ8 road roller is used for compaction operations in large-scale foundations such as road, dam, railway, airport constructions. This construction equipment is applicable to semi-stick materials and non-stick materials including sand, gravel, gravel, rock fill, etc.

  • Rated output: 42kW
  • Centrifugal force: 85KN
  • Operating weight: 8000KG
Inquiry
Road Roller YZ8
Specifications
Model YZ8
Operating weight (kg) 8000
Vibratory drum diameter (mm) 1200
Compaction width (mm) 1650
Static line pressure (N/cm) 245
Min. ground clearance (mm) 300
Wheelbase (mm) 2650
Min. turning radius (mm) 6000
Gradeability 25%
Vibratory amplitude (mm) 0.5
Vibratory frequency (Hz) 48
Centrifugal force (kN) 85
Forward (km/h) 2.2/4.2/7.5/12.5/15.5
Reverse (km/h) 2.5
Tire model 12.00-20-16PR
Engine model A498BG
Rated power 42kW@2200rpm
Dimension (mm) 5130×1830×2570
Features
  • The road roller comes with Xinchai 4-cylinder supercharged engine, which provides large power output and high work efficiency, and helps save energy and protect the environment; The engine meets China stage II emission standard;
  • Mechanical drive with 5 forward speeds and 1 reverse speed;
  • Hydraulic vibration, electric control and large centrifugal force achieve reliable compaction performance;
  • Hydraulic steering with articulated frame provides flexible steering and adjustable amplitude;
  • Special gearbox is adopted for roller, providing high transmission torque and smooth shifting;
  • Gas-assisted hydraulic caliper disc brake for driving, mechanical drum brake for parking, ensuring high safety and reliability;
  • The rear hood can be raised at a large angle to make maintenance on the road roller easier;
  • Hydraulic components are from world's renowned brands for high stability and durability;
