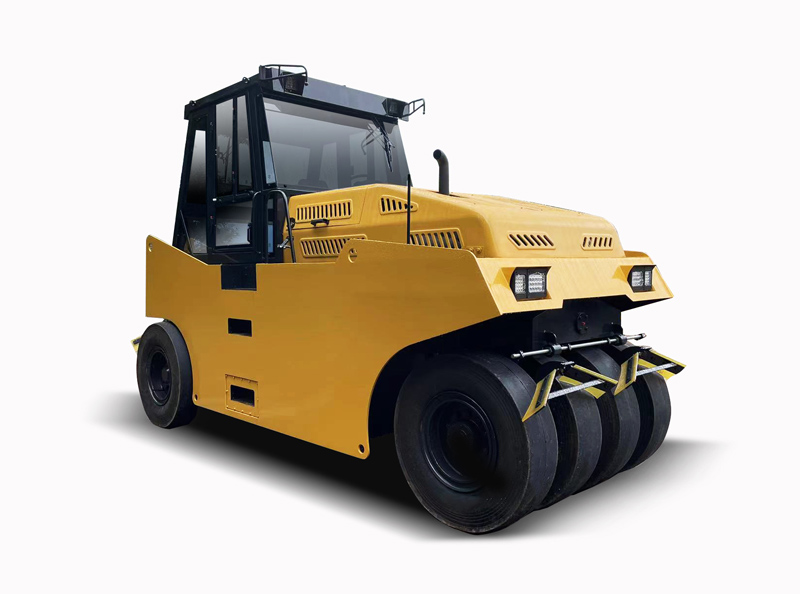

Pneumatic Tire Roller (Mechanical Drive) GYR161L

GYR161L road roller is used for the compaction work on roadbeds such as high-grade highway asphalt layers and stabilized soils.

  • Rated output: 75kW
  • MAX. Operating speed: 14.7KM/H
  • MAX. Operating weight: 16000Kg
Inquiry
Pneumatic Tire Roller (Mechanical Drive) GYR161L
  • The smooth-surfaced pneumatic tires are used to ensure that damage will not occur to the compacted materials, and the compaction performance can be adjusted by increasing or decreasing the tire load and tire air pressure;
  • 3 forward and 2 reverse gears with synchronizer for smooth shifting behavior;
  • The road roller features high safety and reliability thanks to driving and parking braking systems;
  • Two sprinkler systems are equipped, one is used to spray the tire tread and another one has the functions of road surface spraying and vehicle weight increasing;
  • Reversing and shifting operations are controlled with one joystick, easy to operate;
Specifications
GYR161L 10000-16000
Operating mass 14.7
Max. travel speed 4+5
Quantity of tires (front + rear) 11.0-20-16
Tire size 8.00V-20
Wheel rim size 7500
Min. turning radius 2280
Rolling compaction width 30
Gradeability 4780x2280x3200
Overall dimension (LxWxH) 3800
Wheelbase 75/2200rpm
Diesel engine power CUMMINS4BT3.9
Diesel engine model 223
Fuel tank capacity 91
