Main performance parameters | ||

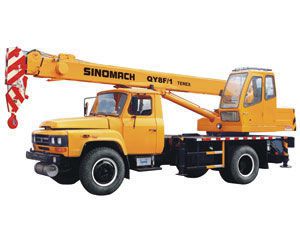

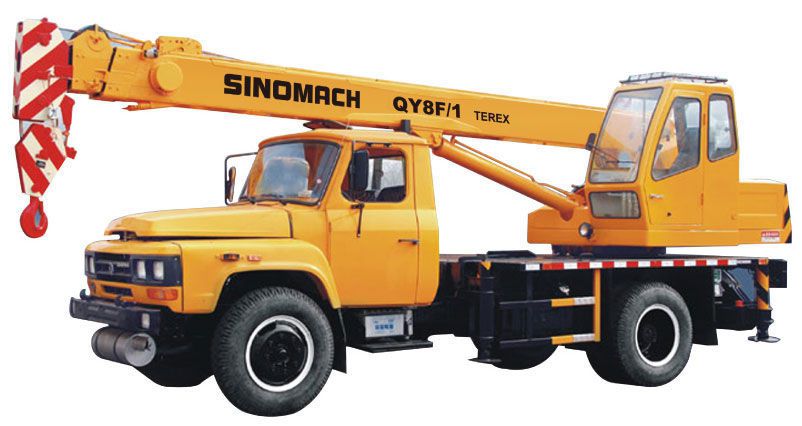

Model | QY8F-1 | |
Weights | Gross vehicle weight | 9,695Kg |
Max. rated capacity for main hook | 8t | |
Engine and drive system | Engine | Yuchai YC4E140-30 |
Rated power | 105KW @ 2500rpm | |
Axle drive system | 4×2 | |
Torque | Max. torque | 500N.m@ 1400-1600 rpm |
Max. load moment | 235.2KN.m | |
Walking performance | Max. grade ability | 30° |
Max. traveling speed | 85km/h | |
Slewing speed | 3rpm | |
Dimensions | Overall(L×W×H) | 8.44m×2.44m×3.08m |
Outrigger Dimensions(L×T) | 3.6m×4.0m | |
Boom | Base boom length | 6.8m |
Fully extended boom length | 16.5m | |
Fully extended boom maximum lift height | 17.3m |
We are a specialized truck crane manufacturer in China. At SINOMACH we also offer mechanical vibrating double drum road roller, crawler bulldozer, asphalt mixing plant, wheel loader, and much more.
