ZG3465LC-9C Crawler Excavator
ZG3465LC-9C Crawler Excavator

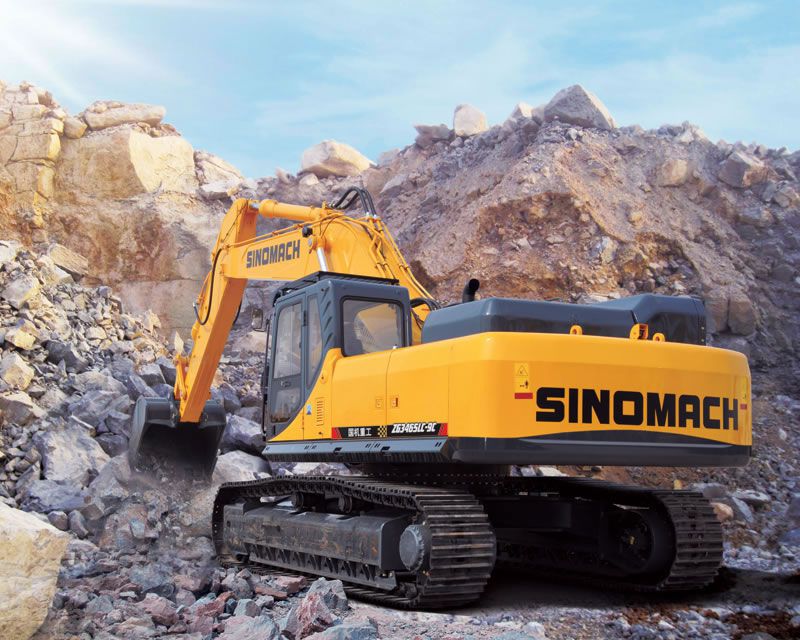

The ZG3465LC-9C crawler excavator or crawler digger made by Sinomach, a Chinese specialist manufacturer of earthmoving equipment, is equipped with a CUMMINS 4 stroke diesel engine and a well performed hydraulic system. It is ready to help you dig and reach new levels of excavating equipment efficiency. This hydraulic excavator is ideal construction equipment you can trust for mining, road building, civil engineering, general construction, etc. See detailed specifications of the crawler excavator from the table shown as follows.
Technical Parameters of ZG3465LC-9C Crawler Excavator| Overall Dimensions (mm) | |||
| 1 | Overall length | 12040 | |
| 2 | Overall width | 3340 | |
| 3 | Overall height of boom | 3660 | |
| 4 | Width of platform | 3215 | |
| 5 | Overall height of cab | 3314 | |
| 6 | Ground clearance of counterweight | 1230 | |
| 7 | Height of engine cover | 2888 | |
| 8 | Min. ground clearance | 560 | |
| 9 | Length of platform | 3605 | |
| 10 | Rear swing radius | 3450 | |
| 11 | Track wheel base | 4470 | |
| 12 | Chassis length | 5470 | |
| 13 | Chassis width | 3340 | |
| 14 | Track gauge | 2740 | |
| 15 | Standard width of track shoe | 600 | |
| Working Range (mm) | |||
| 1 | Max. digging reach | 12027 | |
| 2 | Max. digging reach at ground level | 11830 | |
| 3 | Max. digging depth | 7862 | |
| 4 | Max. digging depth on ground | 7720 | |
| 5 | Max. vertical wall digging depth | 6691 | |
| 6 | Max. digging height | 10897 | |
| 7 | Max. dumping height | 7897 | |
| 8 | Min. swing radius | 4868 | |
| Specifications | |||
| 1 | Operating weight | 47300kg | |
| 2 | Standard bucket capacity | 2.25m3 | |
| 3 | Arm length | 3050mm | |
| 4 | Boom length | 5850mm | |
| Diesel Engine | |||
| 1 | Model | CUMMINS QSM11-C375 | |
| 2 | Type | 4 stroke diesel engines | |
| 3 | Power | 375(280) KW/2000rpm | |
| 4 | Max. torque | 1898N.m at 1400rpm | |
| 5 | No. of cylinders | 6 | |
| 6 | Displacement | 129.2cc | |
| Hydraulic System | |||
| 1 | Main pump | ||
| Type | Variable displacement axial piston pump | ||
| Max. displacement | 200cc/rev×2 | ||
| Working pressure of main relief valve | 32.3/34.3Mpa | ||
| 2 | Hydraulic motor | ||
| Swing | Variable displacement axial piston motor | ||
| Travel | Variable displacement axial piston motor | ||
| Performance | |||
| 1 | Swing speed | 8.6rpm | |
| 2 | Max. travel speed H/L | 5.7/3.2km/h; C TYPE:5.4/3.6km/h | |
| 3 | Gradeability | 35° | |
| 4 | Max. digging force of bucket | 290KN | |
| 5 | Max. digging force of arm | 228KN | |
| 6 | Ground pressure | 0.8Kgf/cm2 | |
| Tank Capacity | |||
| 1 | Fuel tank capacity | 680L | |
| 2 | Hydraulic tank capacity | 380L | |
