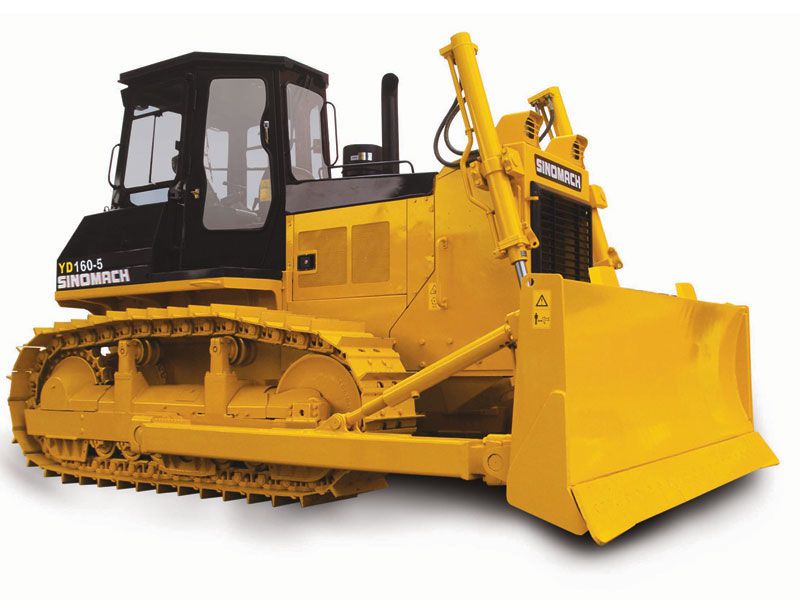

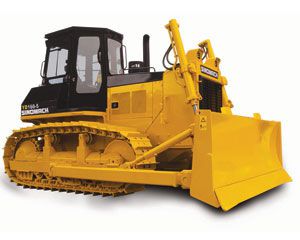

YD160 Crawler Bulldozer

YD160 Crawler Bulldozer

YD160 BULLDOZER
Main Features of the Crawler Bulldozer
1. This crawler bulldozer is equipped with WD10G175E25 supercharged diesel engine with optimum power reservation coefficient.
2. The hydraulic torque converter and gear box with hydraulic power shift are adopted in the hydraulic system to meet different work conditions.
3. Humanized operation layout is applied for crawler bulldozer cab, which features high efficient and comfortable.
4. The steering system and braking system are controlled by hydraulic power. The shovel blade and scarifier controlled by joystick, flexible, safe and reliable.
5. The crawler bulldozer has advanced structure and beautiful appearance.

Configuration of the Crawler Bulldozer
1. The crawler bulldozer can be optionally equipped with a protective device to protect against falling objects.
2. Uses integral instrument desk.
3. Maintenance-free battery is adopted.

Technical Specification of the Crawler Bulldozer
Total Weight 17000kg Reverse Ⅲ Gear 4.28~12.53km/h
Max. Towing Force 154KN Track Board Width 500mm
Engine Model WD 10G175E25 Land Pressure 67kPa
Engine Rated Power 131kw Overall Dimension(L×W×H) 5060×3390×3100mm
Engine Rated Speed 1850r/min Bulldozer Shovel (W×H) 3390×1160mm
Forward Ⅲ Gear 3.29~9.63km/h Max. Lifting Height of Bulldozer 960mm

As a specialized crawler bulldozer manufacturer and supplier in China, we at SINOMACH also provide skid steer loader, road paving machine, crawler excavator, motor grader, and much more.
