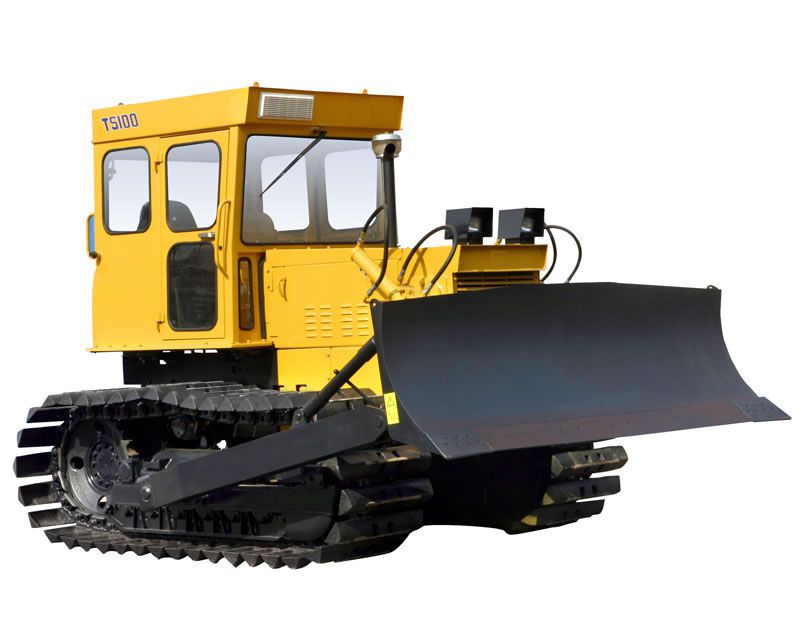

TS100L Crawler Bulldozer
TS100L Crawler Bulldozer
The TS100L crawler bulldozer, as a great earth moving machine, is powerful, easy to operate, comfortable, and exactly what you need to improve productivity and performance. Superior drawbar pull of 95kN, high horsepower of 81hp, incredible visibility in a quiet cab, outstanding powertrain, adjustable operator controls and other characteristics make this construction equipment an ideal choice for nearly any job and any operator.
Features of TS100L Crawler Bulldozer
1. YTO LR6A3-23 diesel engine
2. Power shift transmission with 4 forward gears and 2 reverse gears
| Main Technical Specifications | ||
| Total weight | 10850kg | |
| Dimension | Total length | 4400mm |
| Total width | 3200mm | |
| Total height | 3060mm | |
| Dozer Blade | ||
| Width × Height | 3200×987mm | |
| Max. lifting height | 1008mm | |
| Max. embedded depth into soil | 365mm | |
| Cutting angle(adjustable) | 55° | |
| Max. drawbar pull | 95kN | |
| Ground pressure | 24.5kPa | |
| Diesel Engine | ||
| Engine | Model | YTO LR6A3-23 |
| Rated power | 81hp | |
| Rated rotor speed | 2300r/min. | |
| Theoretical speeds of all gears | ||
| Forward Gear I - IV | 2.6~10.4km/h | |
| Backward Gear I - II | 3.7~6.7 km/h | |
| Fuel consumption of the engine | ≤242g/kw.h | |
| Engine max. torque | 400N.m | |
