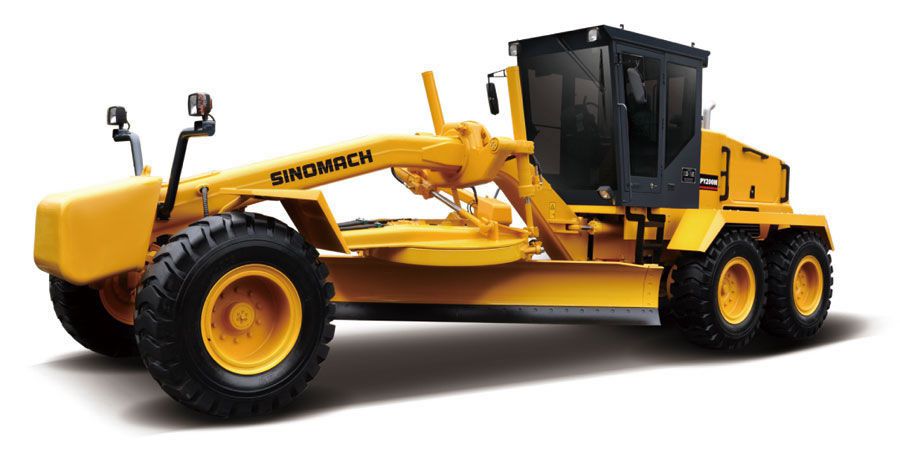

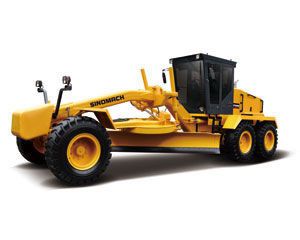

PY200M/PY200MH Motor Grader

PY200M/PY200MH Motor Grader

PY200M/PY200MH
Sinomach motor grader adopts advanced technology from Germany and its output power ranges from 120hps to 350hps.

Motor Grader Specifications
Engine rated power 160kw/215HP
Engine rated speed 2300rpm
Operating weight Standard 15400kgs
With front bulldozing plate/rear ripper 15400kgs
Overall dimensions
(L*W*H)		 Standard 9100mm×2600mm×3400mm
With front bulldozing plate/rear ripper 10330mm×2740mm×3400mm
Minimum ground clearance  440mm
Minimum outside turning radius 7800mm
Travelling speed Forward 0-36km/h
Backward 0-25km/h
Gradeability 25%
Max. tractive force (Ø=0.75) 82KN/115KN
Blade size 3965mm ×650mm
Bulldozing plate (optional) Width*height 2740mm ×920mm
Rear ripper (optional) Width 2000mm
Digging depth 315mm
Number of teeth 5

We are a specialized motor grader manufacturer and supplier in China. We also provide mechanical vibrating double drum road roller, crawler excavator, backhoe loader, crawler bulldozer, and more.
