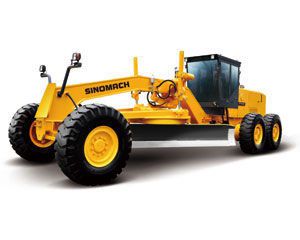

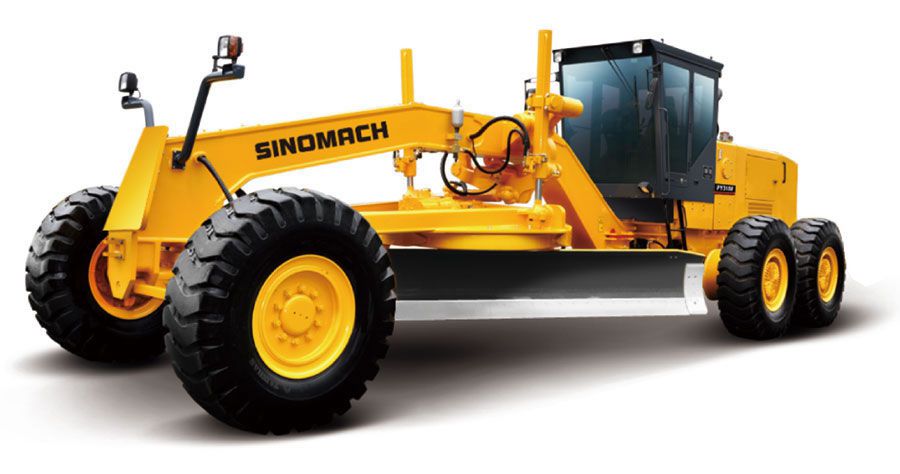

PY310M
Sinomach motor grader adopts advanced technology from Germany and its output power ranges from 120hps to 350hps.
Engine rated power | 227kw/310HP | |
Engine rated speed | 2100rpm | |
Operating weight | Standard | 24000kgs |
Front dozing back scarifying type | 27500kgs | |
Overall dimensions (L*W*H) |
Standard | 10500mm×3140mm×3650mm |
Front dozing back scarifying type | 12200mm×3140mm×3650mm | |
Minimum ground clearance | 500mm | |
Minimum outside turning radius | 9300mm | |
Travelling speed | Forward | 0-40km/h |
Backward | 0-27.1km/h | |
Gradeability | 25% | |
Max. tractive force | Standard | 126kN |
With rear ripper | 144kN | |
Rear ripper (optional) | 4920mm ×695mm | |
Rear ripper (optional) | Width | 2885mm |
Digging depth | 460mm | |
Number of teeth | 3, 5, 7 |
As a China-based motor grader manufacturer and supplier, we at SINOMACH also provide landfill compactor, crawler crane, wheel loader, backhoe loader, and much more.
