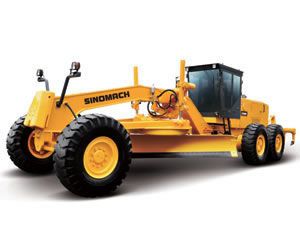

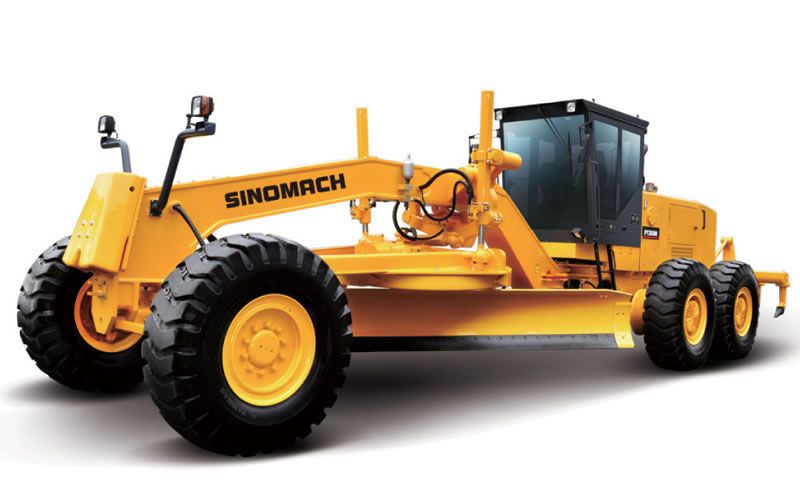

PY350M
Sinomach motor grader adopts advanced technology from Germany and its output power ranges from 120hps to 350hps.
Engine rated power | 257kw/ 350HP | |
Engine rated speed | 2100rpm | |
Operating weight | Standard | 27500kgs |
Front dozing back scarifying type | 27500kgs | |
Overall dimensions (L*W*H) |
Standard | 10800mm×3140mm×3650mm |
Front dozing back scarifying type | 12500mm×3140mm×3650mm | |
Minimum ground clearance | 500mm | |
Minimum outside turning radius | 9300mm | |
Travelling speed | Forward | 0-40km/h |
Backward | 0-27.1km/h | |
Gradeability | 25% | |
Max. tractive force | 144kN | |
Blade size | 4920mm ×695mm | |
Rear ripper (optional) | Width | 2885mm |
Digging depth | 460mm | |
Number of teeth | 3, 5, 7 |
As a professional motor grader manufacturer and supplier in China, we also offer rotary drilling rig, road paver, wheel loader, crawler excavator, and more.
