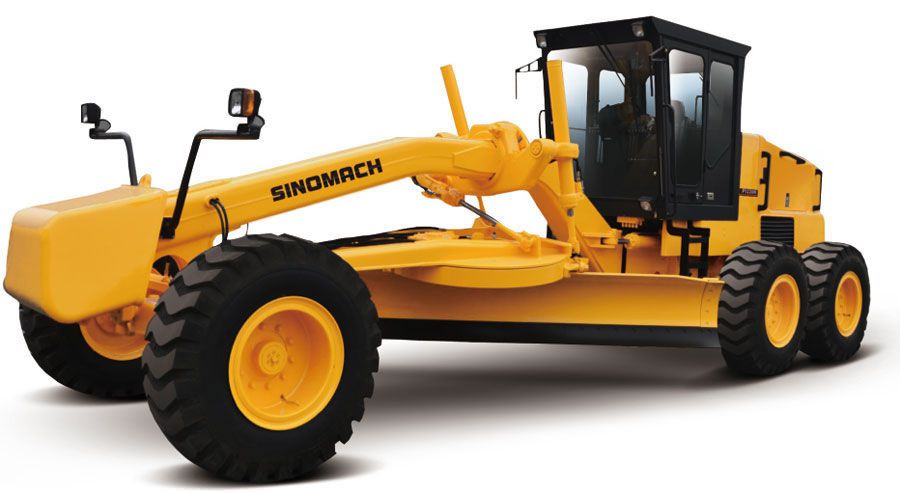

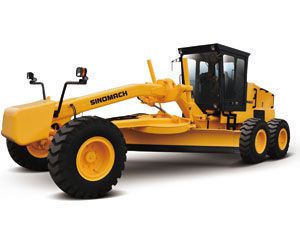

PY220M/PY220MH
Sinomach motor grader adopts advanced technology from Germany and its output power ranges from 120hps to 350hps.
Engine rated power | 172kw /230HP | |
Engine rated speed | 2200rpm | |
Operating weight | Standard | 16500kgs |
With front bulldozing plate/rear ripper | 16500kgs | |
Overall dimensions (L*W*H) |
Standard | 9100mm×2600mm×3400mm |
With front bulldozing plate/rear ripper | 10330mm ×2740mm ×3400mm | |
Minimum ground clearance | 480mm | |
Minimum outside turning radius | 7900mm | |
Travelling speed | Forward | 0-39km/h |
Backward | 0-29 km/h | |
Grade ability | 25% | |
Max. tractive force | 88.6kN/123KN | |
Blade size | 4270mm ×650mm | |
Bulldozing plate (optional) Width*height | 2470mm ×920mm | |
Rear ripper (optional) | Width | 2000mm |
Digging depth | 315mm | |
Number of teeth | 5 |
As a specialized motor grader manufacturer and supplier in China, our company also offers pneumatic tire road roller, truck crane, wheel loader, crawler excavator, and much more.
