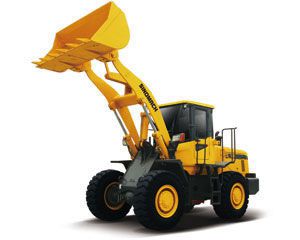

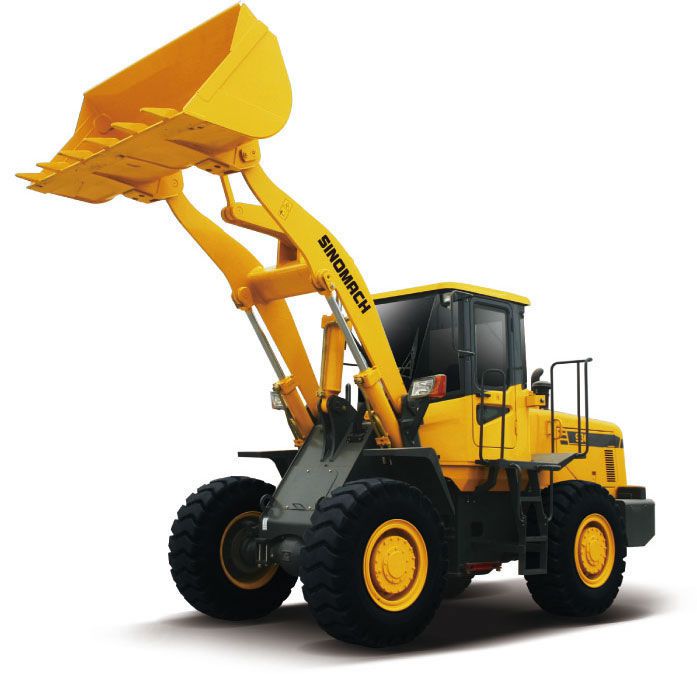

956 WHEEL LOADER SPECIFICATIONS
Equipped with WeiChai Engine
3 forward & 3 reverse power shift transmission
Combined seal cylinder obtains high seal performance and more reliability
Overall Dimension | ||
1 | Length(with bucket on ground) | 7955mm |
2 | Width(to outside of wheels) | 2800mm |
3 | Bucket width | 2946mm |
4 | Height(To the top of the cab) | 3450mm |
5 | Wheel base | 3100mm |
6 | Tread | 2200mm |
7 | Min. ground clearance | 450mm |
Main Technical Specification | ||
1 | Rated load | 5000Kg |
2 | Operating weight | 16300Kg |
3 | Rated bucket capacity | 3.0(m3) |
4 | Max. breakout force | 160kN |
5 | Max. dump clearance | 3050mm |
6 | Dump reach | 1107mm |
7 | Dump angle at any position | ≥450 |
8 | Digging depth(with bucket bottom horizontal) | 165mm |
9 | Min. turning radius | |
(1) Outside of bucket | 6575mm | |
(2) Outside of rear wheel | 5970mm | |
10 | Pivot angle frame | 380 |
11 | Oscillating angle of rear axle | +130 |
12 | Lifting time of bucket | ≤6.2sec. |
13 | Lowering time of bucket | ≤3.8sec. |
14 | Dumping time | ≤1.8sec. |
15 | Traveling speed, 3 forward and 3 reverse | |
(1) 1st gear(forward/reverse) | 6.9/9.1 | |
(2) 2nd gear(forward/reverse) | 11.2/14.3 | |
(3) 3rd gear (forward/reverse) | 35/37.1 | |
Diesel engine | ||
1 | Model | Chinese Engine WD615G.220 |
2 | Type | Direct injection. Natural Aspirate. Water cooling |
3 | Rated output | 162Kw |
4 | Inter-bore of cylinder/stroke | 126/130mm |
5 | Displacement of cylinder | 9.726L |
6 | Model of starting motor | KB-24V |
7 | Power of start motor | 7.5KW |
8 | Voltage of starting motor | 24V |
9 | Rated speed | 2200r/min |
10 | Max. Torque | >843N.m |
11 | Starting type | Electric |
12 | Min. specific fuel consumption | < 226g/Kw.h |
13 | Engine specific oil consumption | 0.95-1.77g/Kw.h |
14 | Net weight | 850Kg |
Transmission System | ||
Hydromedia Transmission | ||
1 | Model | Z50E.2.1 |
2 | Type of torque converter | 3-elements.single stage |
3 | Torque ratio | 4 |
4 | Cooling type | Pressure oil circulating |
5 | Type of transmission case | power shift, spur gear constant-mesh |
3 | Gear shift position | 2 Forward and 1 reverse gears |
Axle and Tire | ||
1 | Type of main reducer | spiral bevel gear, single stage |
2 | Gear ratio of main reducer | 4.4 |
3 | Type of final reducer | Single stage planetary |
4 | Gear of ratio of final reducer | 4.928 |
5 | Gear ratio | 20.35 |
6 | Max. drawing force | 150kN |
7 | Type of main reducer | 23.5-25-16PR |
Working Device Hydraulic System | ||
1 | Model of oil pump | JHP2080 |
2 | System pressure | 18MPa |
3 | Model of Mutichannel conversion valve | D32II-YL20 |
4 | Model of pilot valve | DJS2-UX/UU |
5 | (D*L)Dimension of lifting cylinder | Ф160*90*715mm |
6 | (D*L)Dimension of tilting cylinder | Ф180*90*530mm |
Steering System | ||
1 | Type | Middle articulated frame. Full-hydraulic Steering |
2 | Model of steering pump | JHP2080 |
3 | Model of redirector | TLF1-E1000B+FKB6020 |
4 | Model of priority valve | YXL-F250F-16N7-A |
5 | System pressure | 16MPa |
6 | Dimension of steering cylinder | Ф90*400 mm |
Brake System | ||
1 | Type of traveling brake | Caliper disc brake Air over oil activate 4 wheel brake |
2 | Air pressure | 6-7.5kgf/cm2 |
3 | Type of parking brake | Hand brake Flexible shaft control clamp brake |
Oil Capacity | ||
1 | Fuel(diesel) | 250L |
2 | Engine lubricating oil | 20L |
3 | Oil for converter and gear box | 45L |
4 | Oil for hydraulic system | 180L |
5 | Oil for driving axles(F/R) | 36L |
6 | Oil for final reducer | 12L |
7 | Oil for brake system | 3L |
