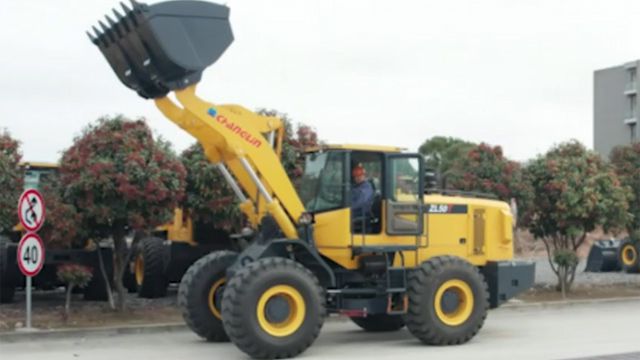

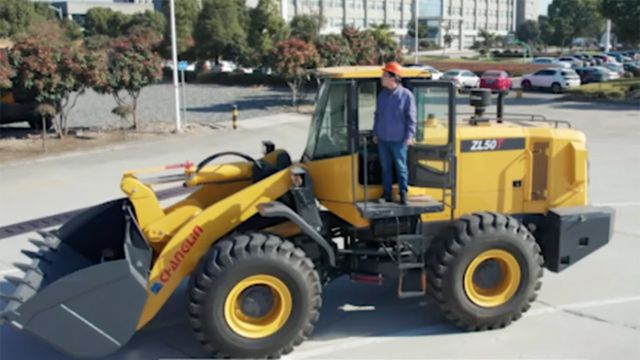

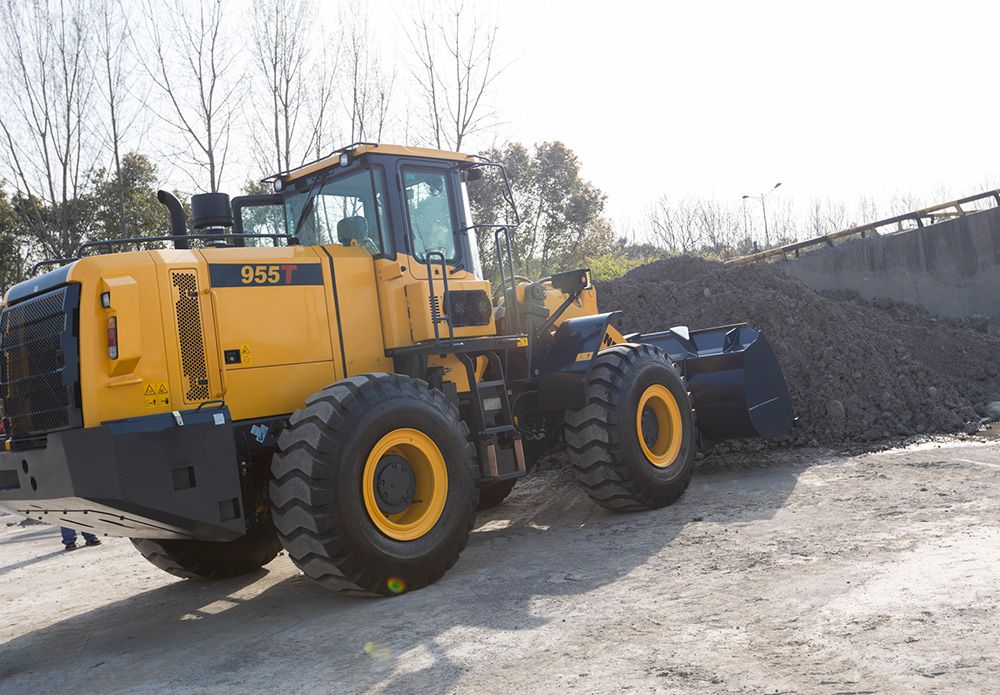

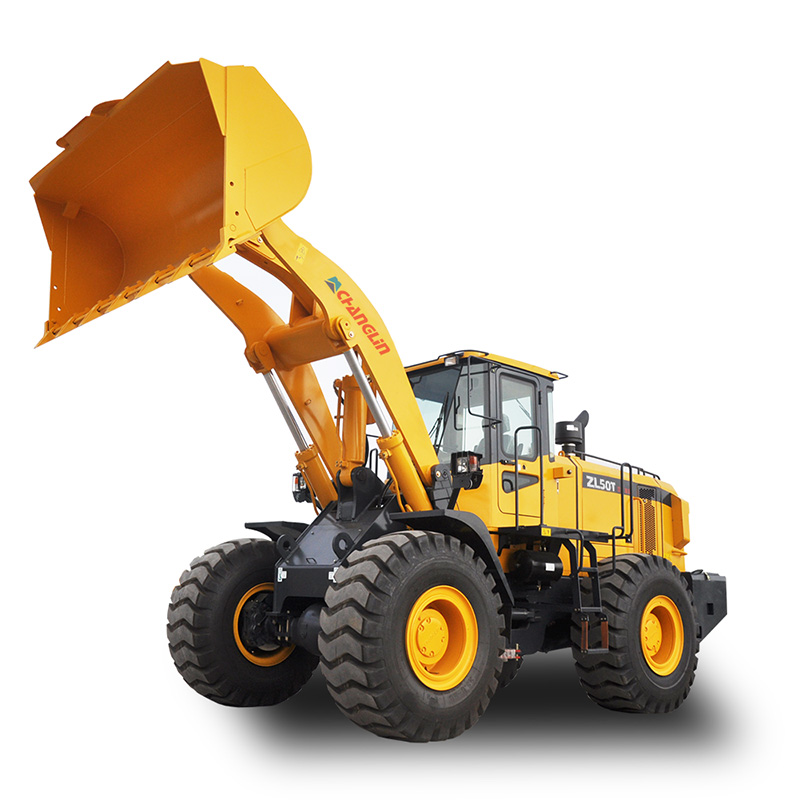

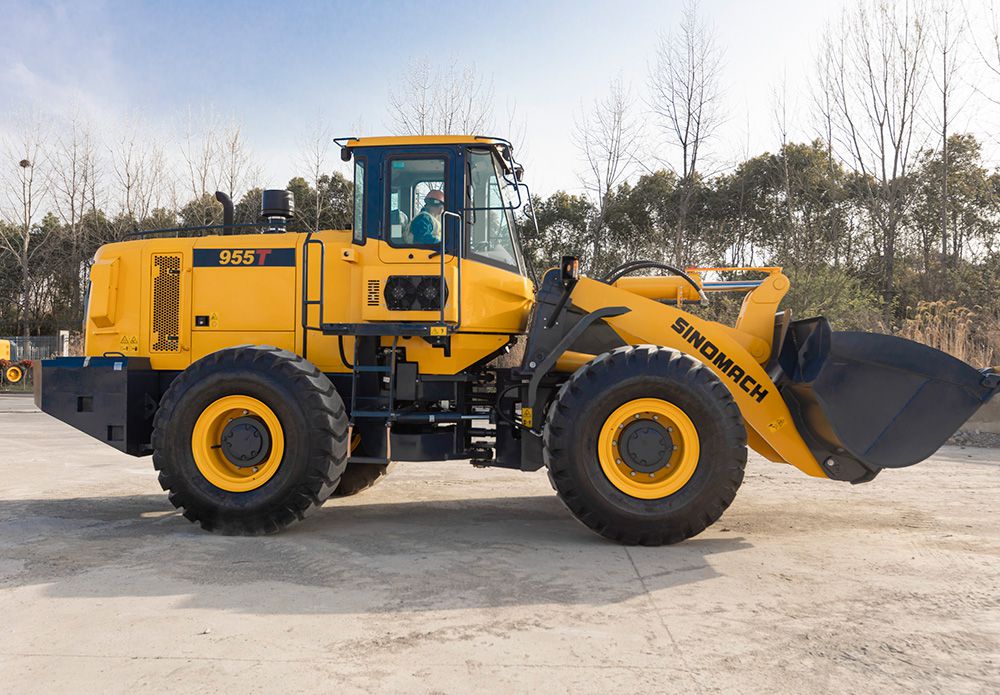

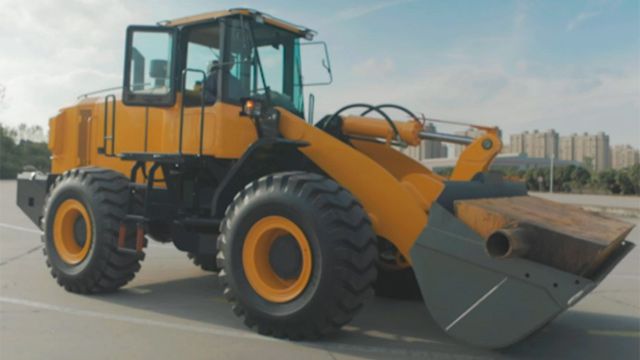

955N Wheel Loader

Features
1. The 955N wheel loader is installed with Weichai engine.
2. Two forward and one reverse power shift transmissions are installed.
3. Combined sealing cylinder brings good sealing performance and reliability.

Technical Specification of Wheel Loader
Overall Dimension
1 Length (with bucket on ground) 8100(mm)
2 Width (to outside of wheels) 2800(mm)
3 Bucket width 2946(mm)
4 Height (to the top of the cab) 3500(mm)
5 Wheel base 3100(mm)
6 Tread 2200(mm)
7 Min. ground clearance 450(mm)
Main Technical Specification of Wheel Loader
1 Rated loading capacity 5000(kg)
2 Operating weight 16300(1±5%)kg
3 Rated bucket capacity 3.0(m3)
4 Max. breakout force 160KN
5 Max. dumping clearance 3091(mm)
6 Dumping reach 1090(mm)
7 Dumping angle at any position ≥45°
8 Digging depth (with bucket bottom horizontal) 165(mm)
9 Min. turning radius
(1) Outside of bucket 6575(mm)
(2) Outside of rear wheel 5970(mm)
10 Max. steering angle 38o
11 Oscillating angle of rear axle ±13o
12 Lifting time of bucket ≤6.2(sec.)
13 Lowering time of bucket ≤3.8(sec.)
14 Dumping time ≤1.8(sec.)
15 Traveling speed (2 forward and 1 reverse)
(1) 1st gear (forward/reverse) 12.1/16.5(km/h)
(2) 2nd gear forward 37.4(km/h)

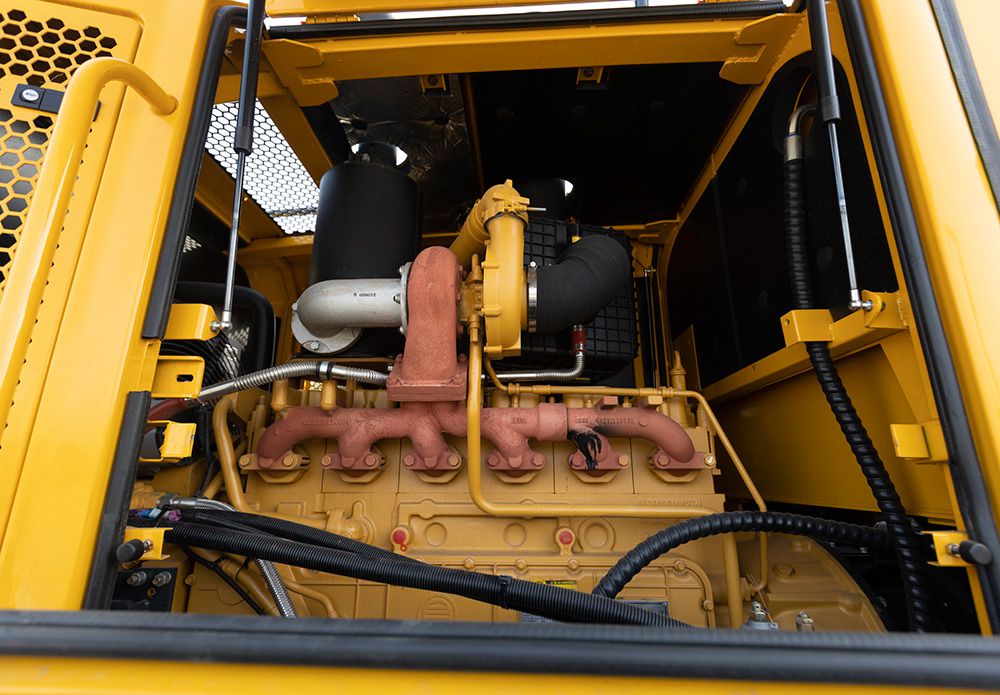

Diesel Engine of Wheel Loader
1 Model Chinese Engine WD10G220E23
2 Type Direct injection, naturally aspirated, water cooled
3 Rated power 162(kW)
4 Cylinder diameter/stroke 126/130(mm)
5 Displacement of cylinder 9.726(L)
6 Model of starting motor KB-24V
7 Power of starting motor 7.5(kW)
8 Voltage of starting motor 24(V)
9 Rated speed 2000(r/min)
10 Max. torque >900(N.m)
11 Starting type Electrical starting
12 Min. specific fuel consumption <220g/kW.h)
13 Engine specific oil consumption 0.95-1.77(g/kW.h)
14 Net weight 1000(kg)
Transmission System of Wheel Loader
I. Hydraulic Torque Converter
1 Model ZL50B-012
2 Type of torque converter 4-element, single stage
3 Torque ratio 4
4 Cooling type Pressure oil circulating
5 Type of gearbox Power shift, constant-mesh spur gear
6 Gear shift 2 forward and 1 reverse gears

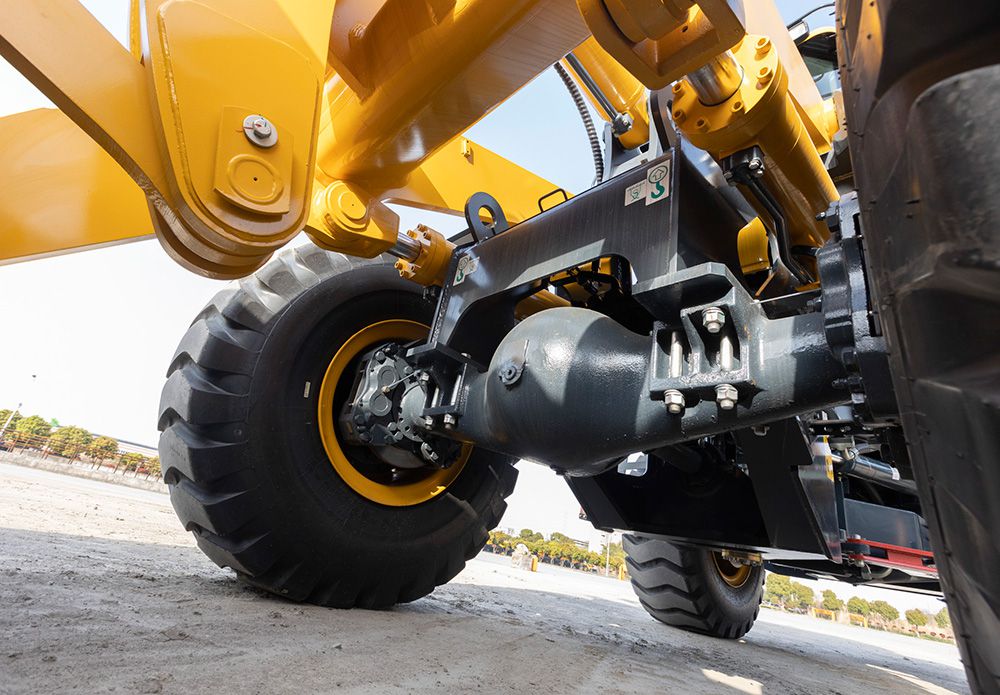

II. Axle and Tire
1 Type of main reducer Spiral bevel gear, single stage
2 Gear ratio of main reducer 4.625
3 Type of final reducer Single stage planetary
4 Gear ratio of final reducer 4.929
5 Total gear ratio 22.795
6 Max. drawing force 150kN
7 Size of tire 23.5-25-16PR
Working Device Hydraulic System of Wheel Loader
1 Model of oil pump JHP2080S
2 System pressure 19MPa
3 Model of distribution valve HDS-32II-YL19

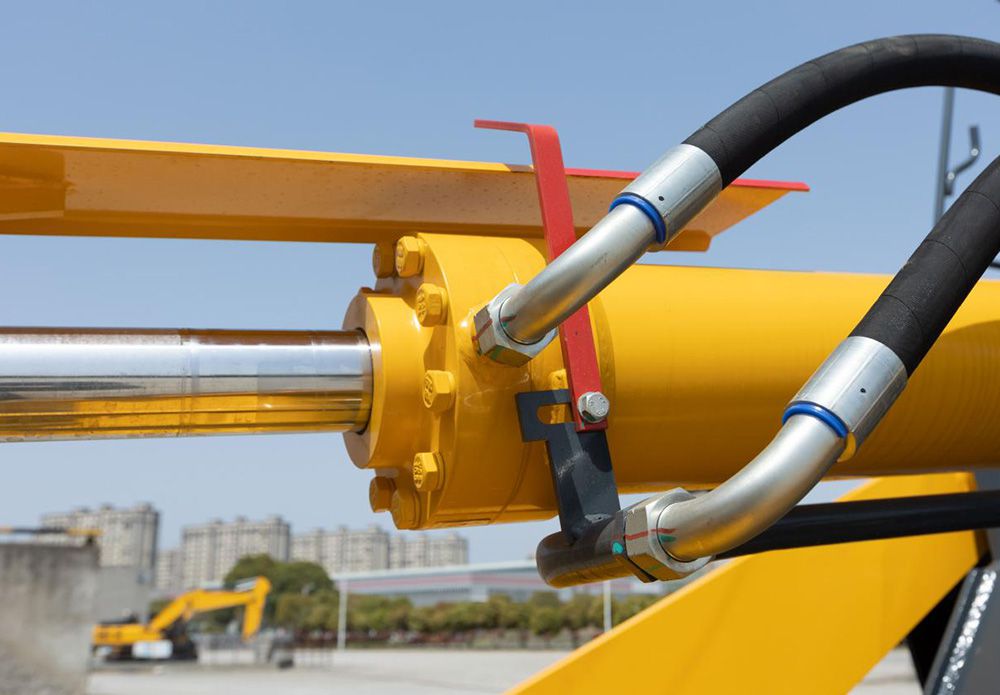

4 Dimension of lifting cylinder(D×L) Ф160×90×705(mm)
5 Dimension of tilting cylinder(D×L) Ф180×90×530(mm)
Steering System

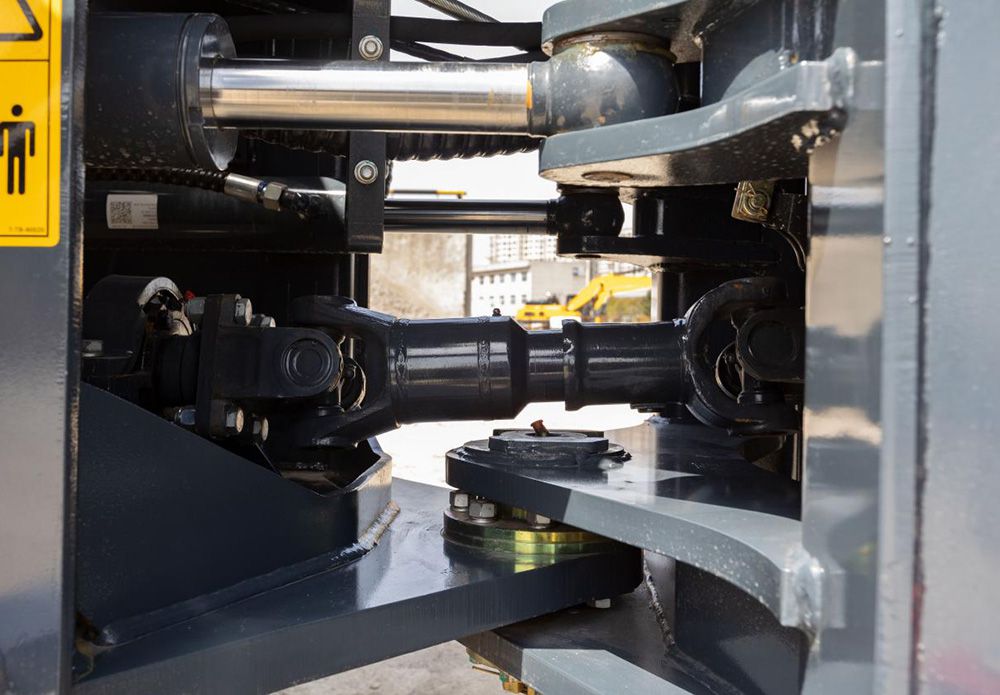

1 Type Middle articulated frame, full-hydraulic steering
2 Model of steering pump JHP2080S
3 Model of redirector TLF1-E1000B+FKB6020
4 Model of priority valve YXL-F250F-N7
5 System pressure 16MPa
6 Dimension of steering cylinder Ф90×400(mm)

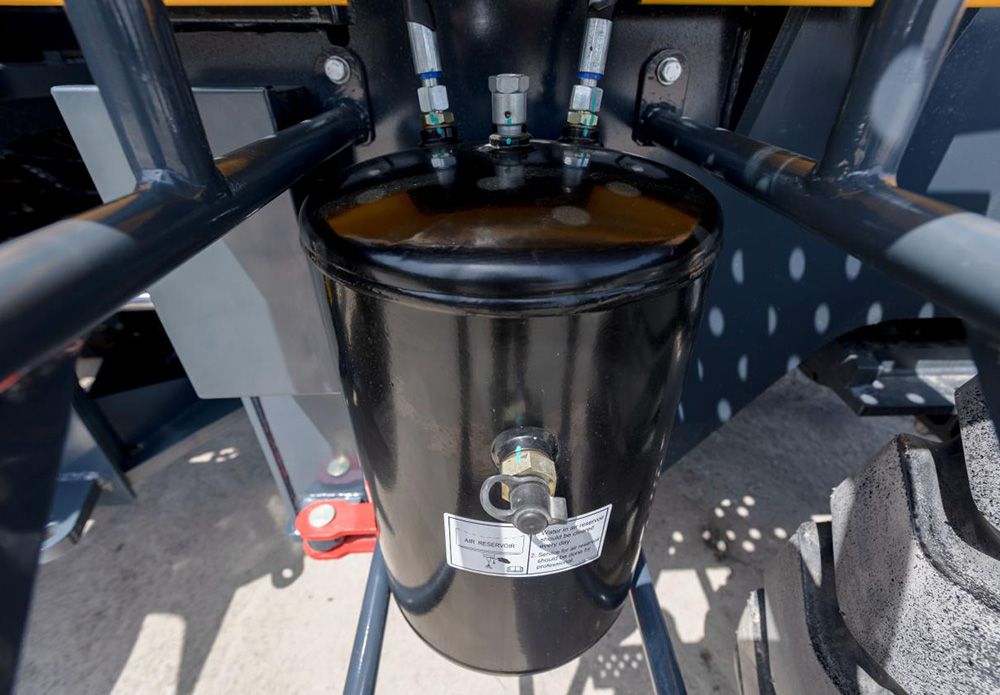

Braking System
1 Type of service brake Caliper disc brake, air-over-oil activated 4 wheel brake
2 Air pressure 6-7.5(kgf/cm2)
3 Type of parking brake Hand brake, flexible shaft control drum brake
Oil Capacity of Wheel Loader
1 Fuel(diesel) 250(L)
2 Engine lubricating oil 20(L)
3 Oil for converter and gear box 45(L)
4 Oil for hydraulic system 180(L)
5 Oil for driving axles (F/R) 26(L)
6 Oil for planetary reducer 14(L)
7 Oil for braking system 3(L)
