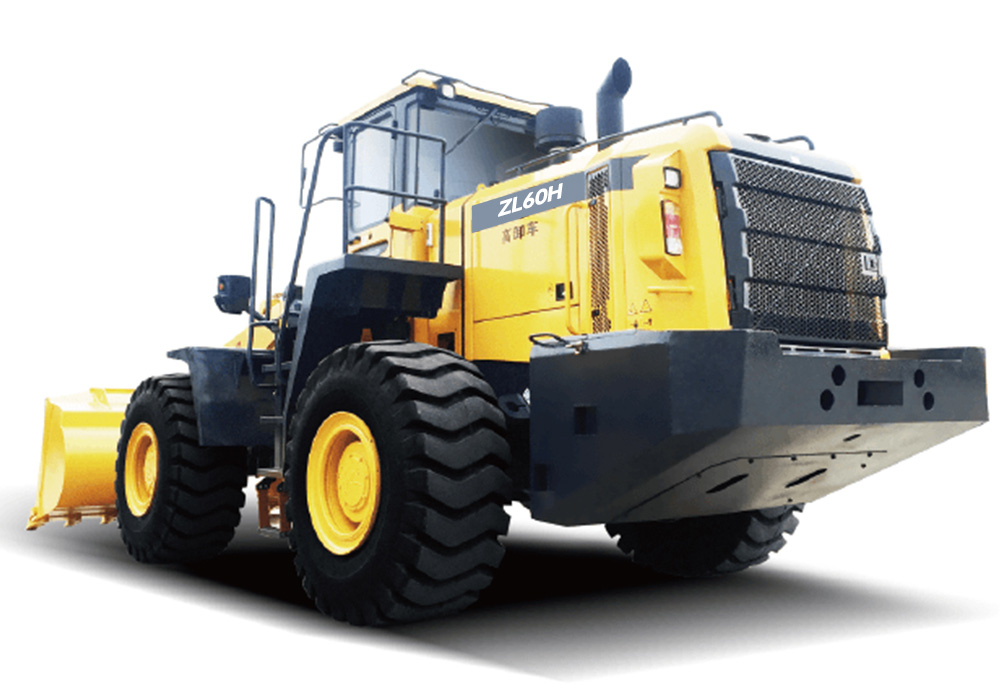

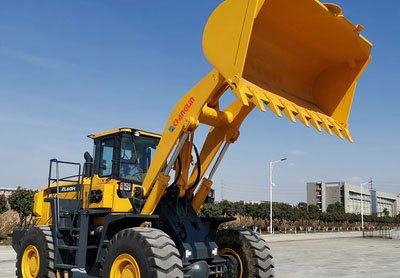

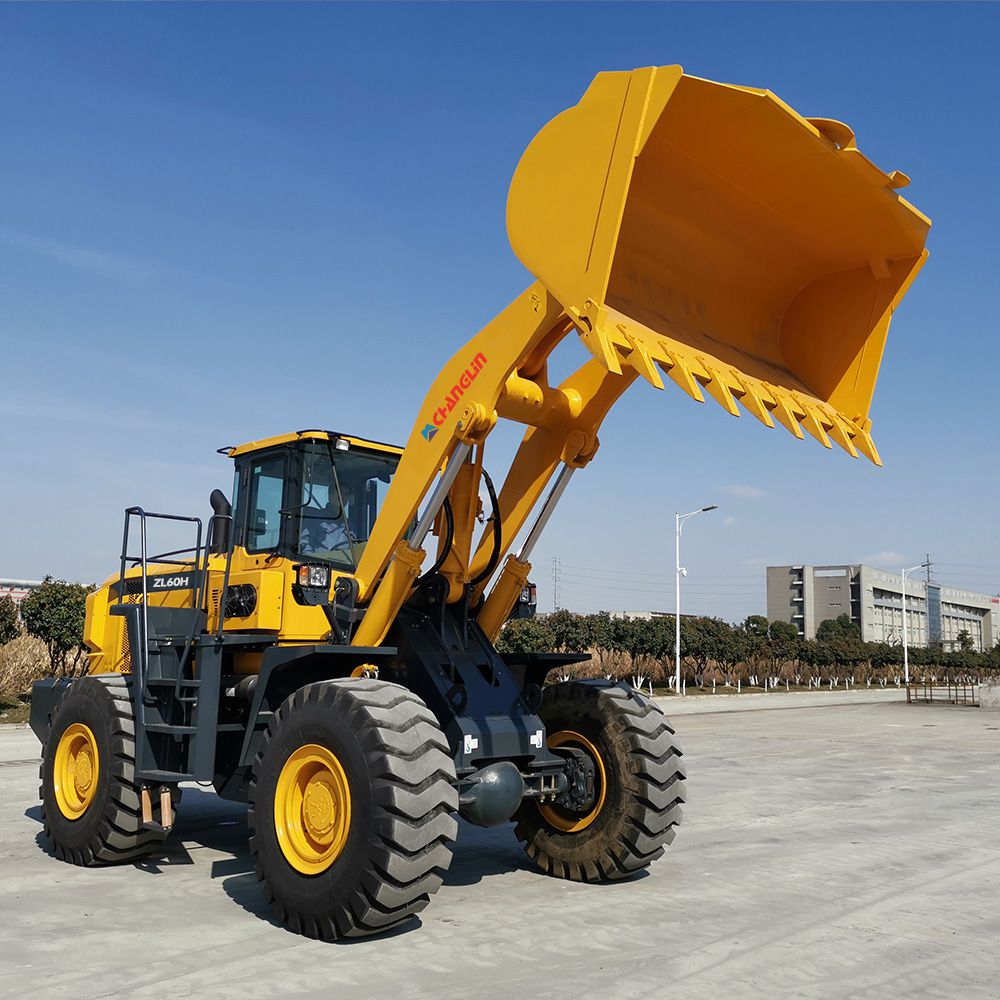

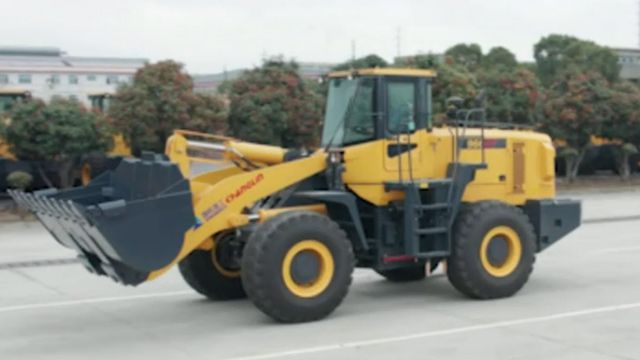

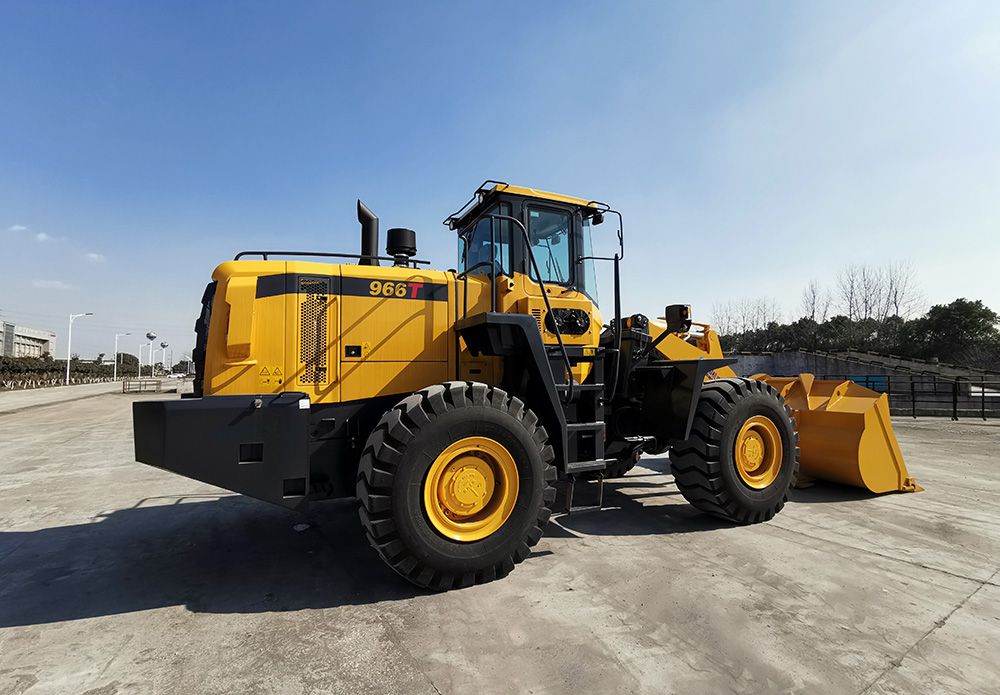

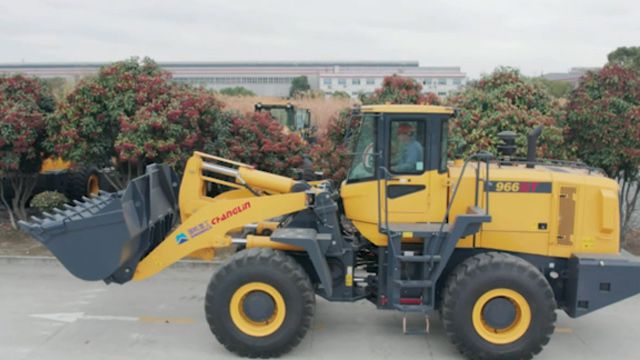

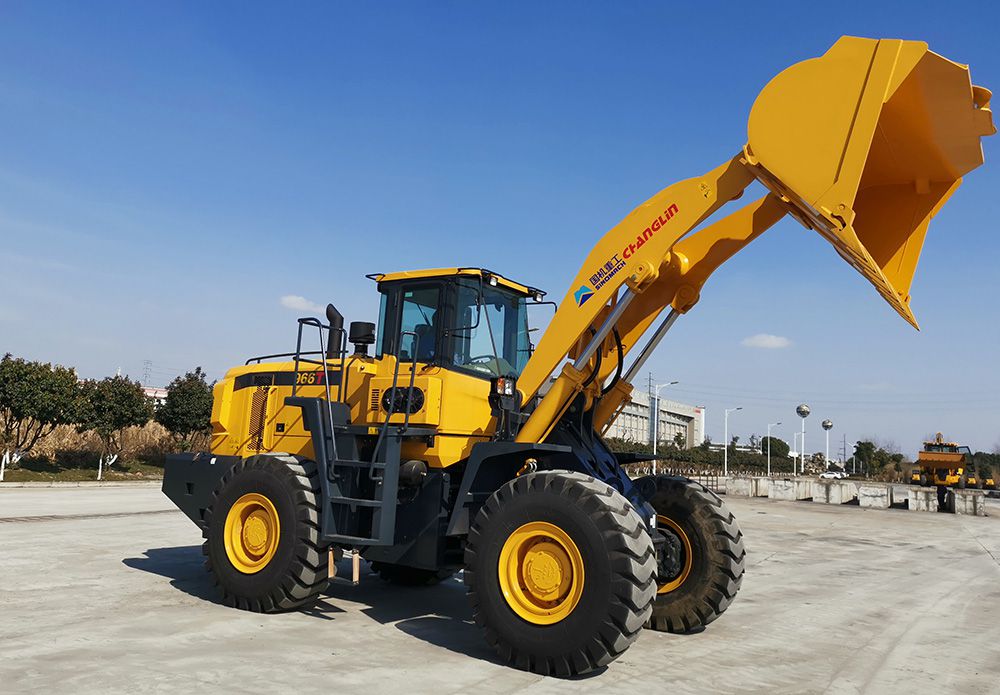

966 Wheel Loader

Features
1. The 966 wheel loader uses engine from Shanghai Diesel Engine Co., Ltd.

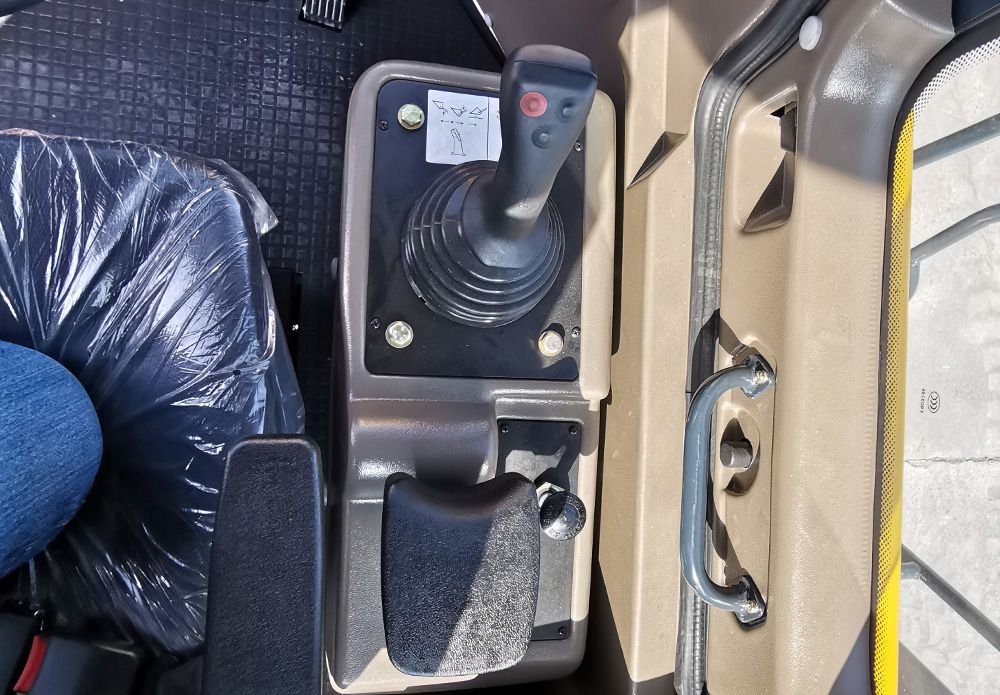

2. The KD switch brings optimal efficiency and easy operation of the wheeled loader.
3. Our front end loader is installed with dry type axle from MERITOR.
4. Reliable ZF gearbox and torque converter.
5. Bucket automatic leveling is available.

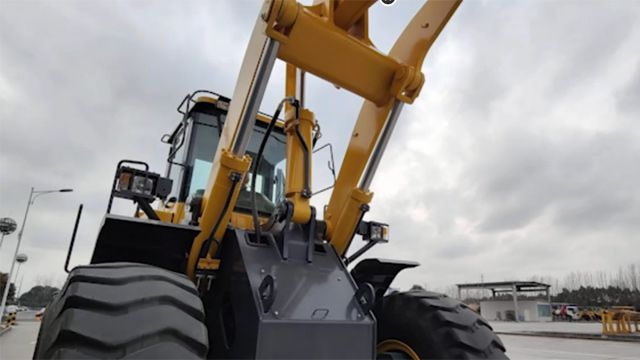

6. The boom comes with position limitation function.
7. For high seal performance and optimal reliability, this wheel loader is engineered with combined seal cylinder.

Technical Specification of Wheel Loader
Overall Dimension
1 Length (with bucket on ground) 8580(mm)
2 Width (to the outside of wheels) 2897(mm)
3 Bucket width 3048(mm)
4 Height (to the top of the cab) 3532(mm)
5 Wheel base 3300(mm)
6 Tread 2300(mm)
7 Min. ground clearance 403(mm)
Main Technical Specifications
1 Rated loading capacity 6000(kg)
2 Operating weight 19100(kg)
3 Rated bucket capacity 3.5(m3)
4 Max. breakout force 190KN
5 Max. driving force 180KN
6 Max. dumping clearance 3393(mm)
7 Dumping reach 1365(mm)
8 Dumping angle at any position ≥45°
9 Digging depth (with bucket bottom horizontal) 212(mm)
10 Min. turning radius
(1) Outside of bucket 6970(mm)
(2) Outside of front wheel 6258(mm)
11 Articulation angle 38±1°
12 Oscillating angle of rear axle ±12°
13 Lifting time of bucket 5.8(sec.)
14 Lowering time of bucket 3.2(sec.)
15 Dumping time 1.5(sec.)
16 Traveling speed (4 forward and 3 reverse gear)
(1)1st gear (forward & reverse) 6.5(km/h)
(2)2nd gear (forward & reverse) 11.8(km/h)
(3)3rd gear (forward & reverse) 23.5(km/h)
(4)4th gear (forward) 37.2(km/h)
Diesel Engine for Wheel Loader
1 Model Shanghai Diesel Engine SC11CB240.1G2B1
2 Type Direct injection, turbocharged, water cooled
3 Rated output 174.5(kW)
4 Piston diameter/stroke 121/152(mm)
5 Total engine displacement 10.5(L)
6 Model of starting motor 4N3181
7 Power of starting motor 7.5(kW)
8 Voltage of starting motor 24(V)
9 Rated speed 2200(r/min)
10 Max. torque 912(N.m)/1400rpm
11 Starting type Electrical starting
12 Min. specific fuel consumption 238(g/kW.h)
13 Engine specific oil consumption 0.95-1.77(g/kW.h)
14 Net weight 960(kg)
Transmission System for Wheel Loader
I. Torque Converter
1 Type 3-element, single stage
2 Torque ratio 2.55
3 Max. dia. of flow path 340(mm)
4 Cooling type Pressure oil circulating
II. Gear Box
1 Model ZF4WG200
2 Type Power shift, constant-mesh spur gear
3 Gear shift position 4 forward and 3 reverse gears
III. Axle and Tire
1 Type of main reducer Spiral bevel gear, single stage
2 Gear ratio of main reducer 4.875
3 Type of final reducer Single stage planetary
4 Gear ratio of final reducer 4.94
5 Total gear ratio 24.0825
6 Size of tire 23.5-25-20PR L-3
Working Device Hydraulic System
1 Model of oil pump JHP2080-Gj0020-XF (From Jinan Hydraulic Pump Co., Ltd.)
2 System pressure 20(MPa)
3 Model of distribution valve DXS-00(from Zhejiang Linhai)
4 Model of pilot valve D32II
5 Dimension of lifting cylinder (D×L) Ф160×90×874(mm)
6 Dimension of tilting cylinder (D×L) Ф210×110×575(mm)
Steering System for Wheel Loader
1 Type Articulated frame, full-hydraulic steering
2 Model of steering pump JHP2080S (from Jinan Hydraulic Pump Co., Ltd.)
3 Steering system pressure 16MPa
4 Dimension of steering cylinder Ф100×50×425(mm)
5 Model of redirector BZZ3-100
Braking System
1 Type of service brake Caplier disc brake, dual pipelines, air-over-oil activated 4 wheel brake
2 Air pressure 7-8(kgf/cm2)
3 Type of emergency brake Automatic cutting-off air brake
4 Type of parking brake Drum brake, manual control cutting-off air brake
Oil Capacity for Wheel Loader
1 Fuel(diesel) 350(L)
2 Engine lubricating oil 28(L)
3 Braking system 2×2(L)
4 Oil for converter and gear box 45(L)
5 Oil for hydraulic system 250(L)
6 Oil for driving axles (F/R) 30(L)+24(L)
