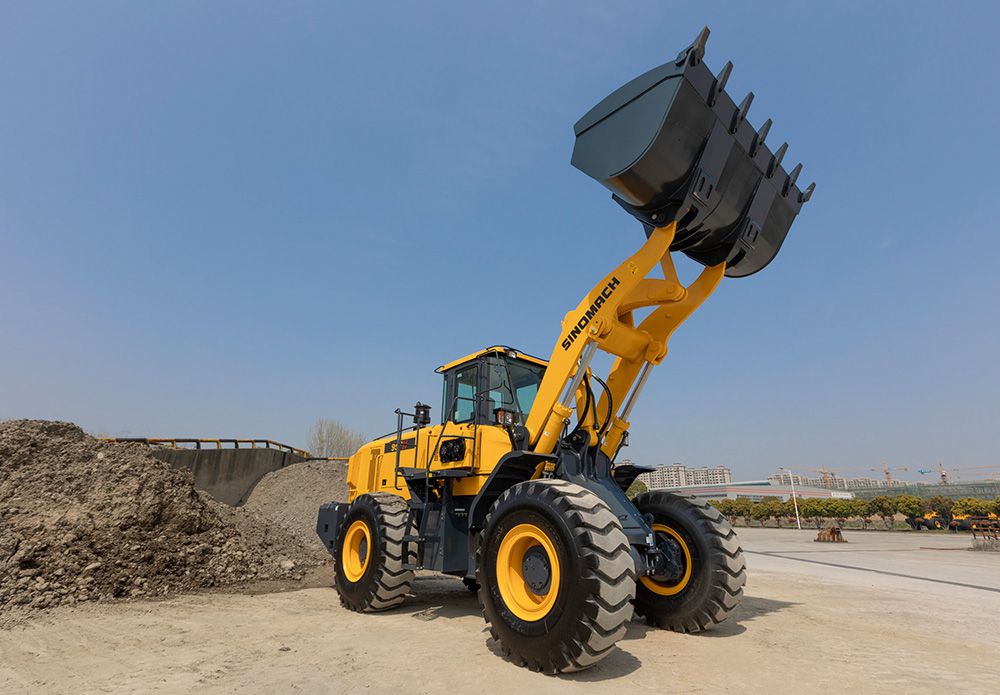

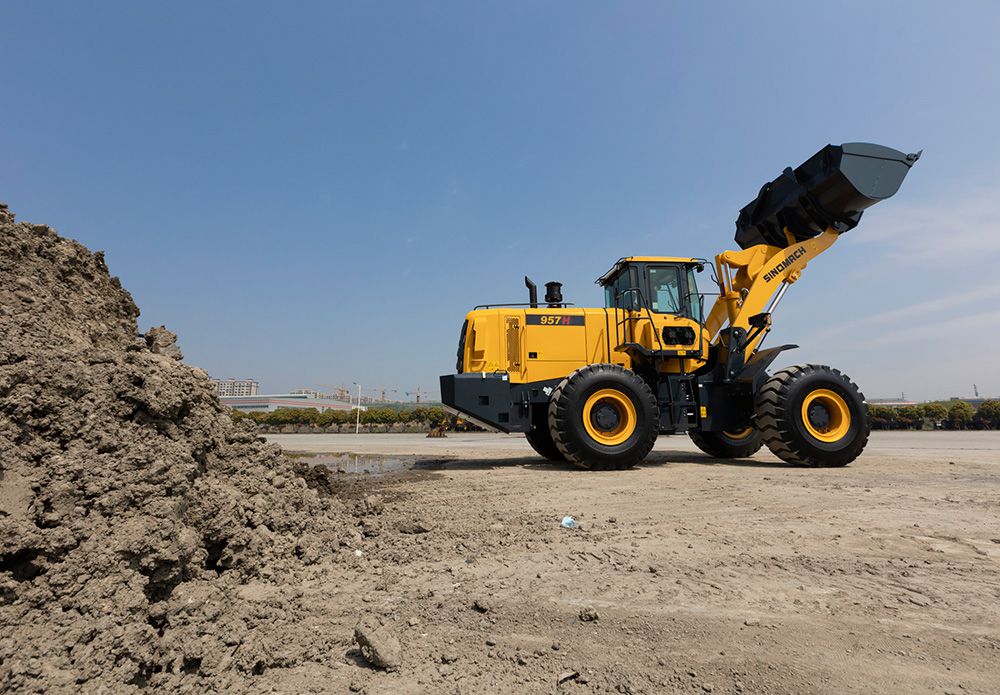

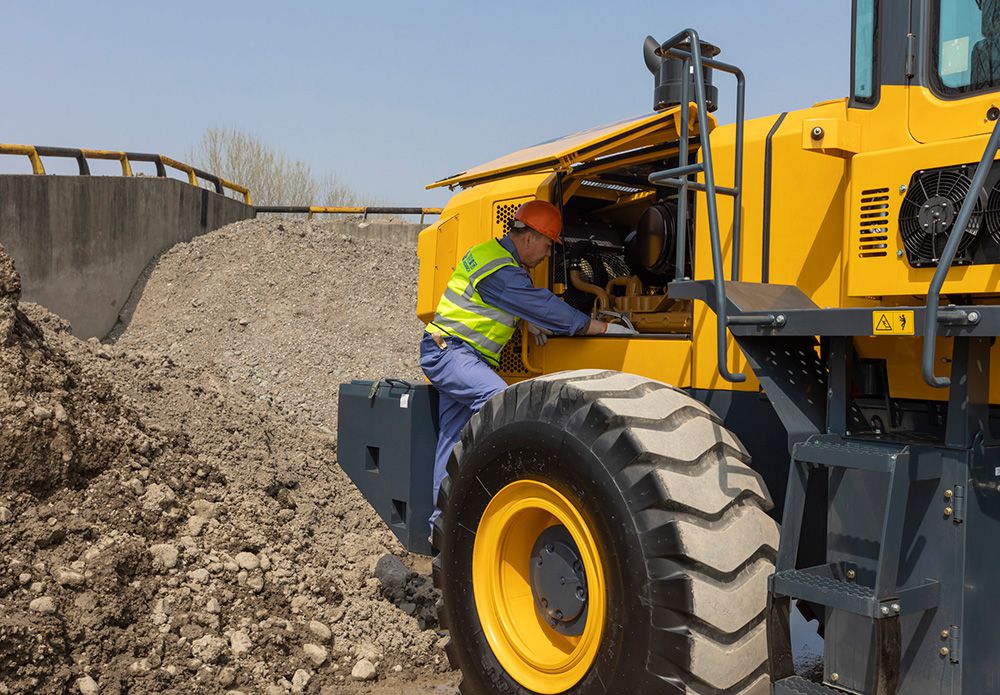

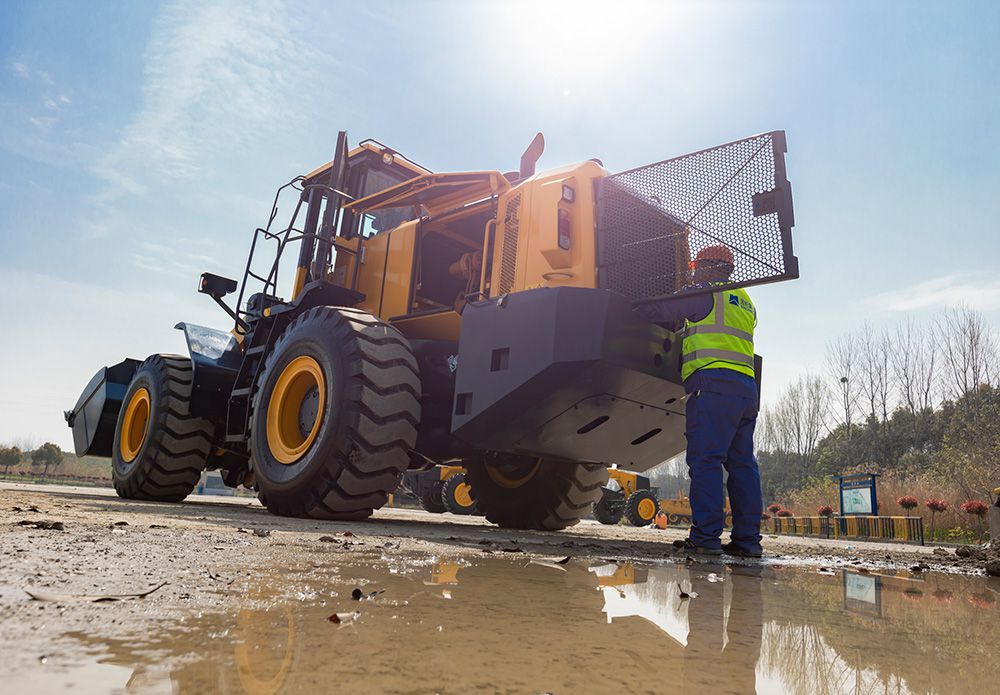

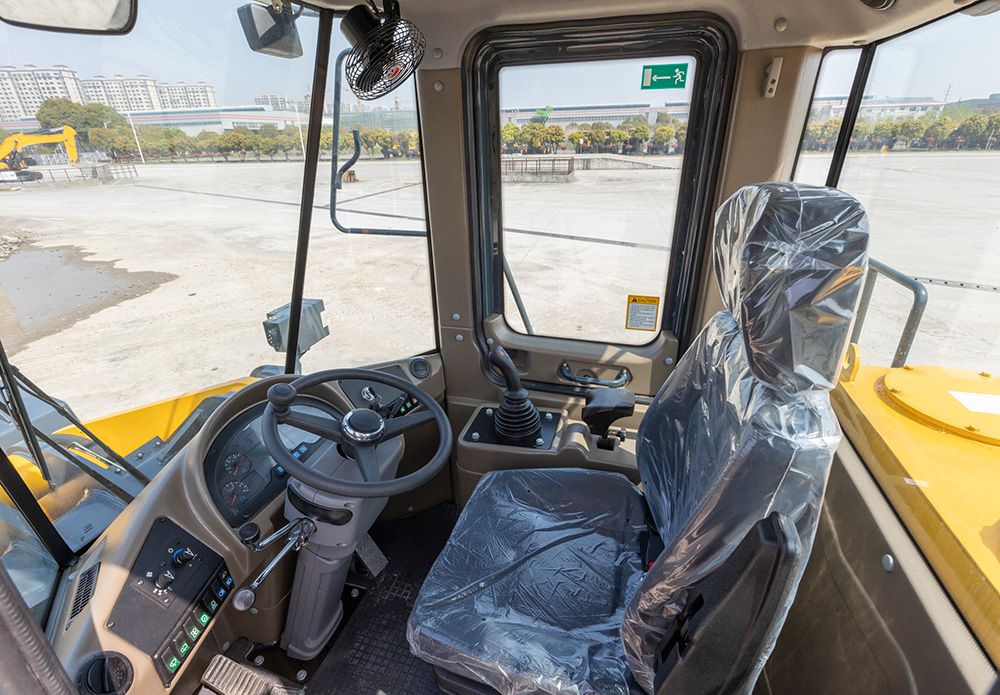

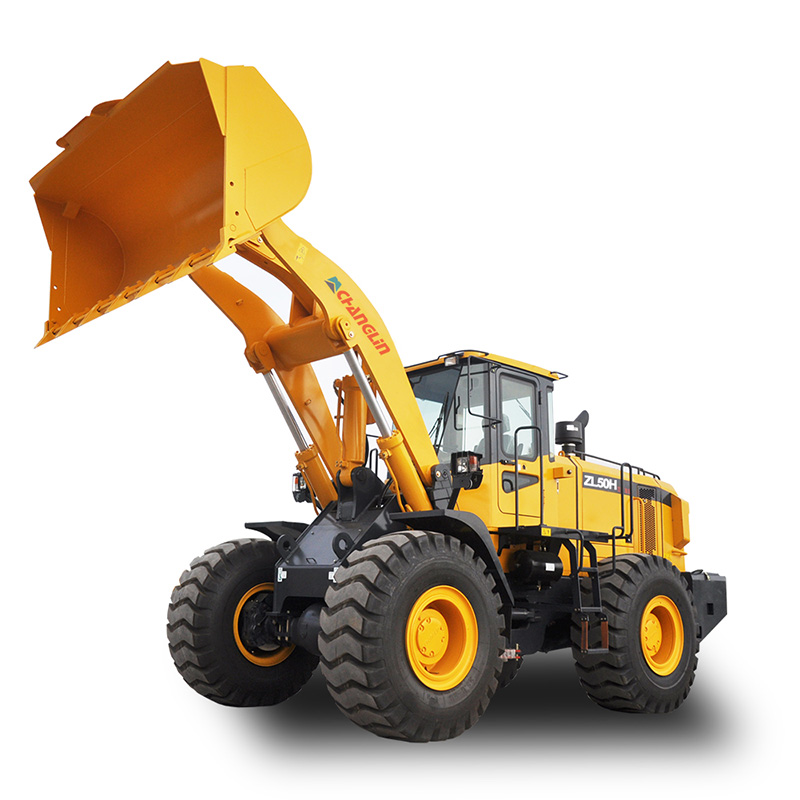

957H Wheel Loader

1. The 957H Wheel Loader is equipped with reliable SHANGCHAI SC11CB220G2B1 engine or Cummins engine.
2. This front end loader adopts 3 forward and 3 reverse power shift transmission.
3. The combined seal cylinder adopted by this wheel loader obtains high seal performance and more reliability.

Technical Specification:
Overall Dimension
1 Length (with bucket on ground) 8130(mm)
2 Width (to the outside of wheels) 2800(mm)
3 Bucket width 2946(mm)
4 Height (to the top of the cab) 3450(mm)
5 Wheel base 3200(mm)
6 Tread 2200(mm)
7 Min. ground clearance 450(mm)
Main Technical Specification
1 Rated load 5000(Kg)
2 Operating weight 16700KG
3 Rated bucket capacity 3.0(m3)
4 Max. breakout force 165kN
5 Max. traction force 150kN
6 Max. dump clearance 3100(mm)
7 Dump reach 1150(mm)
8 Dump angle at any position ≥45°
9 Digging depth (with bucket bottom horizontal) 165(mm)
10 Min. turning radius
(1) Outside of bucket 6775(mm)
(2) Outside of front wheel 6098(mm)
11 Pivot angle frame 38°
12 Oscillating angle of rear axle +11°
13 Lifting time of bucket ≤5.6(sec.)
14 Lowering time of bucket ≤3.7(sec.)
15 Dumping time ≤1.7(sec.)
16 Traveling speed (Km/h), 3 forward and 3 reverse
(1) 1st gear 6.8/8
(2) 2nd gear 10.8/14.3
(3) 3rd gear 32/34.1

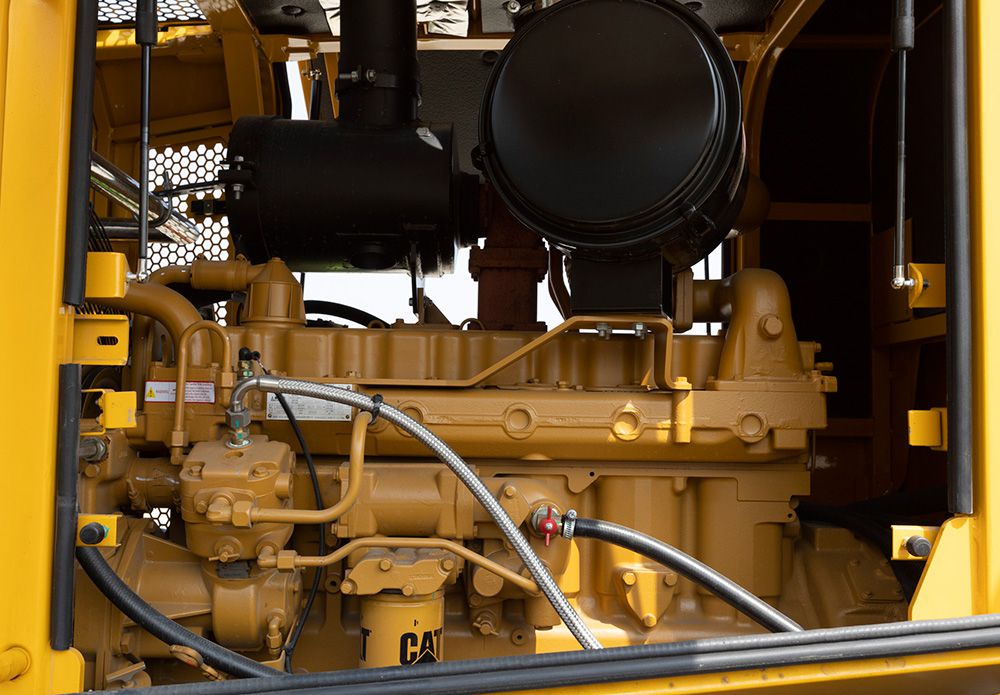

Diesel Engine
1 Model Cummins 6CT AA 8.3-C215 (TIER2) ShangChai SC11CB220G2B1 Engine
2 Type Direct injection. Turbocharge. Water cooling
3 Rated output 158 (kW) 162(Kw)
4 Inter-bore of cylinder/stroke 114/135 (mm) 121/152(mm)
5 Total exhaust of cylinder 8.3 (L) 10.5(L)
6 Model of starting motor 42MT KB-24V
7 Power of start motor 8.2(KW) 7.5(KW)
8 Voltage of starting motor 24(V) 24(V)
9 Rated speed 2200(r/min) 2200(r/min.)
10 Max. Torque 998(N.M) 843±6%(N.m)/(1400r/min)
11 Starting type Electric Electric
12 Min. specific fuel consumption 207(g/Kw.h) 230(g/Kw.h)
13 Engine specific oil consumption 0.9-1.6(g/Kw.h) 0.95-1.77(g/Kw.h)
14 Net weight 617(kg) 960(Kg)
Transmission System
1. Torque Converter
1 Model 957H.2
2 Type 3-elements. Single stage
3 Torque ratio 3.35
4 Cooling type Pressure oil circulating
2. Transmission Case
1 Model CHANGLIN 957H.4
2 Type Power shift, constant- mesh spur gear
3 Gear shift position 3 forward and 3 reverse gears

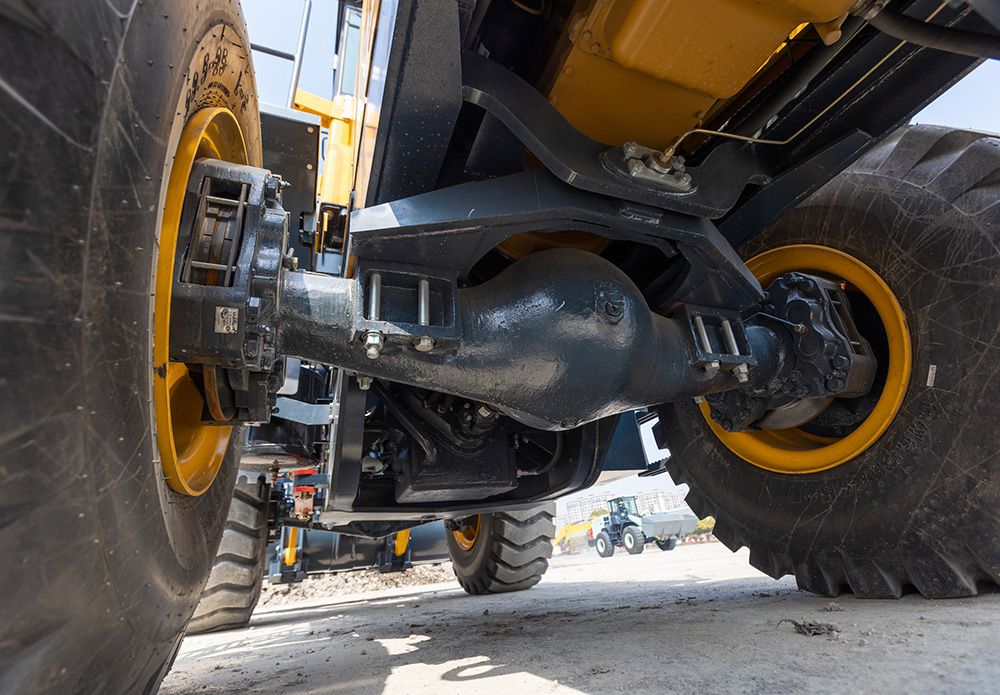

3. Axle and Tire
1 Type of main reducer Spiral bevel gear, single stage
2 Gear ratio of main reducer 4.625
3 Type of final reduce Single stage planetary
4 Gear ratio of final reducer 4.9286
5 Gear ratio 22.795
6 Max. drawing force 150kN
7 Size of tire 23.5-25-16PR

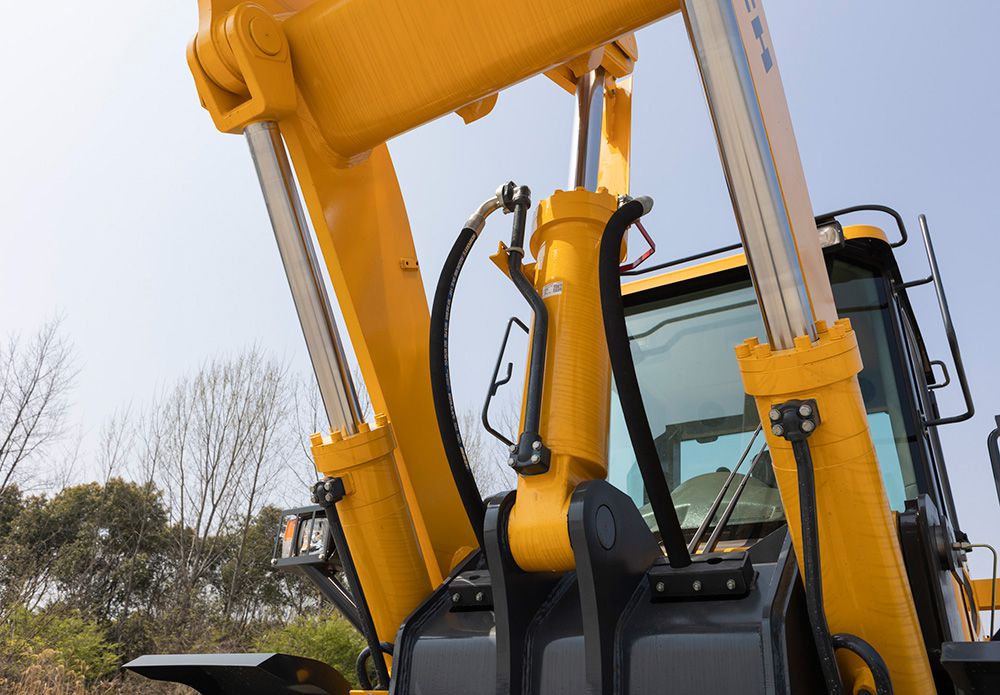

Working Device Hydraulic System
1 Model of oil pump JHP 3160
2 System pressure 180(kgf/cm2)
3 Model of multi-way directional valve GDF-32-YL18/D32II-YL20
4 Pilot supply valve DGf-00 (Gaoyu)
5 Pilot valve DJS2-UX/UU
6 (D×L) Dimension of lifting cylinder Ф160×90×810(mm)
7 (D×L) Dimension of tilt cylinder Ф180×90×528(mm)
Steering System
1 Type Middle articulated frame. Full-Hydraulic steering
2 Model of steering pump JHP2080S
3 Model of redirector TLF1-E1000B+FKB6020
4 Model of priority valve YXL-F250F-N7
5 System pressure 16MPa
6 Dimension of steering cylinder Ф90×45×435(mm)
Brake System
1 Type of traveling brake Caliper disc brake Dual pipelines, air over oil activate 4 wheel brake
2 Air pressure 6-7.5(kgf/cm2)
3 Type of emergency brake Manual control cutting-off air brake
4 Type of parking brake Inner expand hoof Automatic boosting. inner expand hoof
Oil Capacity
1 Fuel(diesel) 250(L)
2 Engine lubricating oil Cummins: 20(L) ShangChai: 27(L)
3 Oil for converter and gear box 42(L)
4 Oil for hydraulic system 180(L)
5 Oil for driving axles (F/R) 18/18(L)
