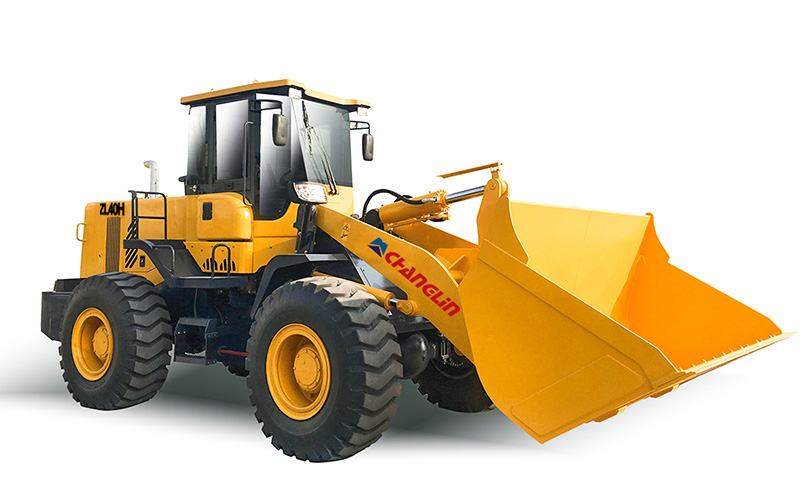

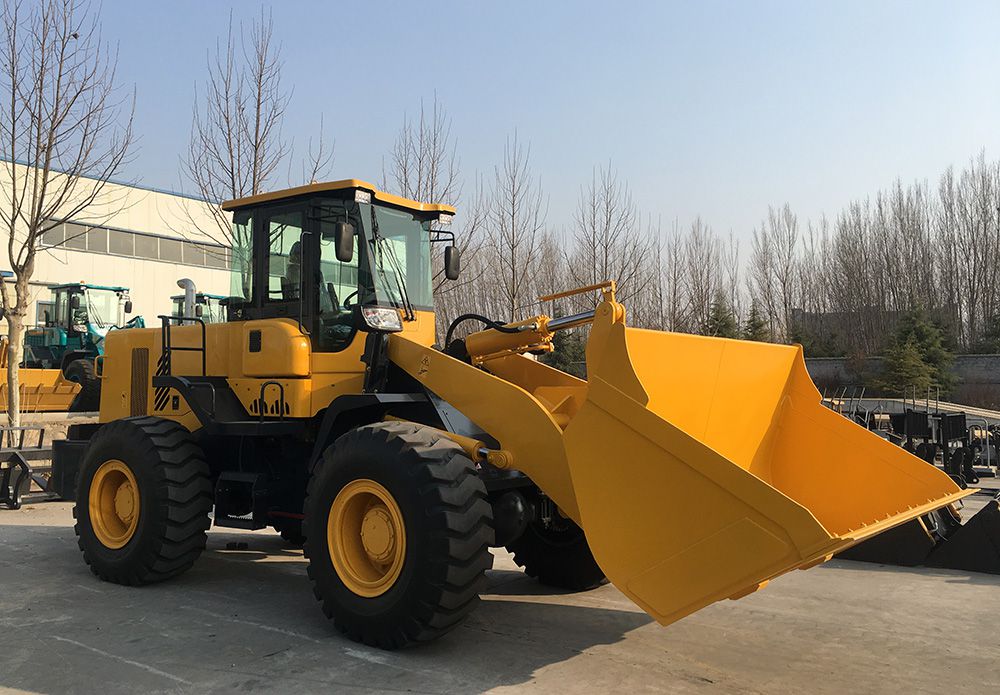

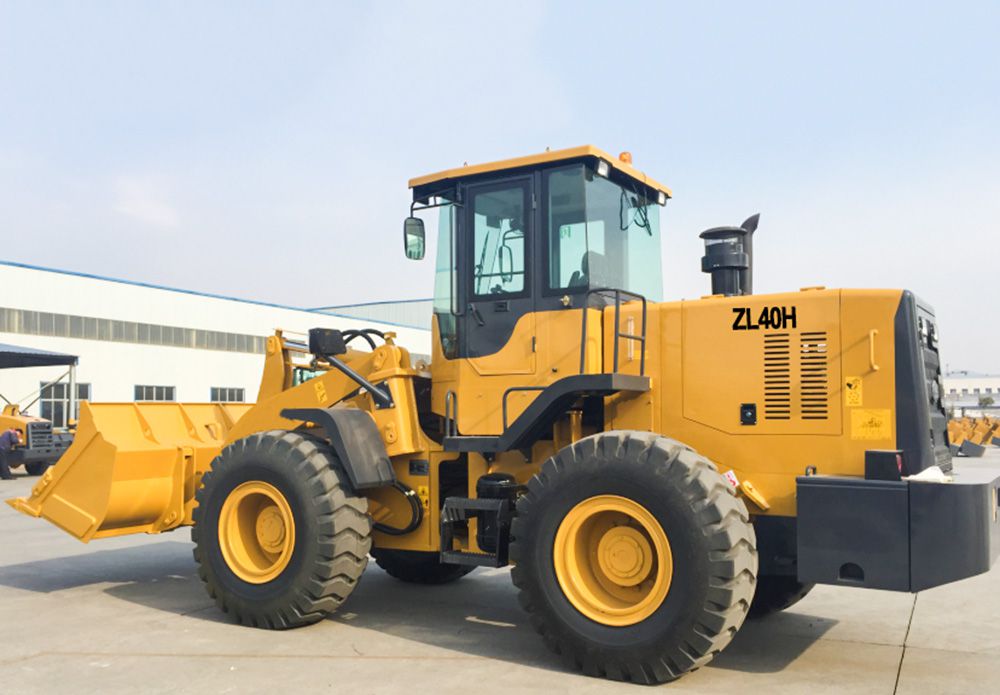

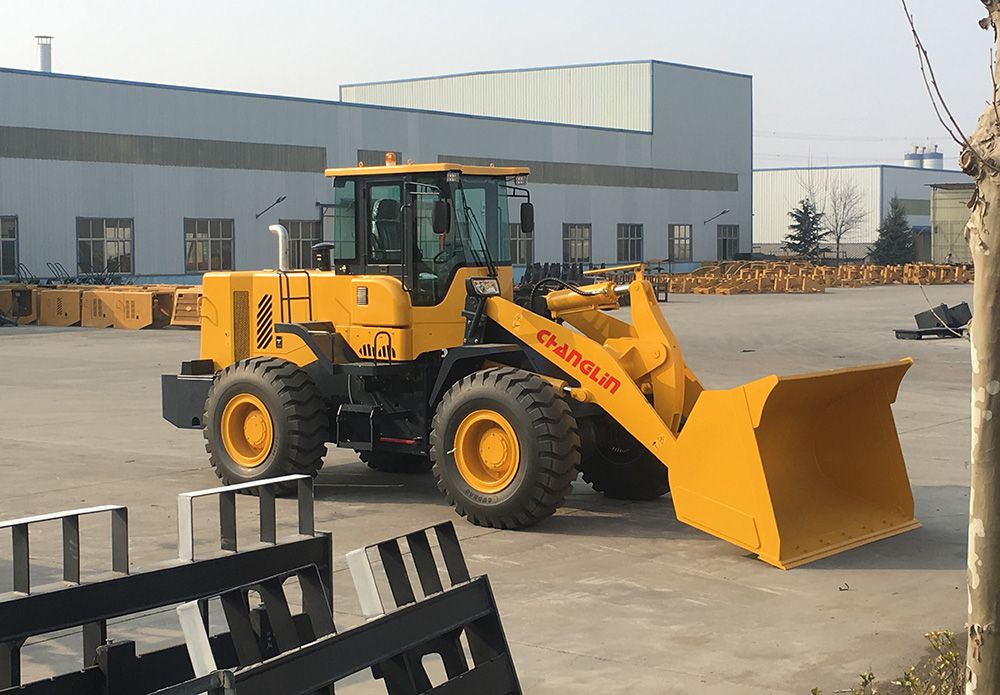

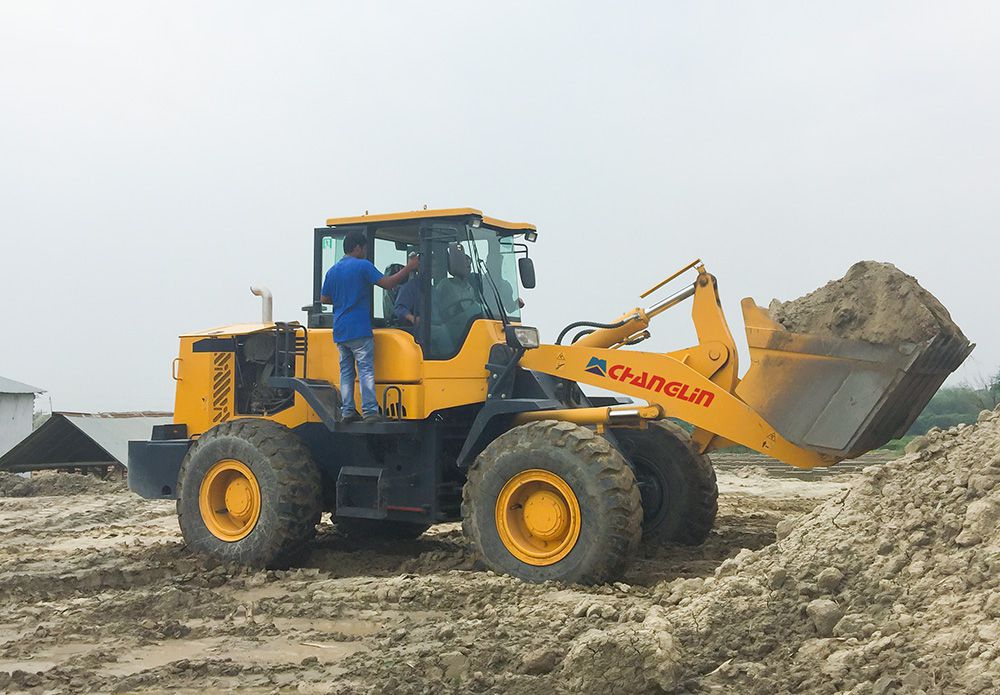

947H Wheel Loader

1. The 947H Wheel Loader is equipped with Dongfeng Cummins Engine.
2. The luxury cabin decoration and A/C of this wheel loader provide operator comfort.
3. This front end loader adopts 2 forward and 1 reverse power shift transmission.
4. The combined seal cylinder adopted by this wheel loader obtains high seal performance and more reliability.

Technical Specification:
Overall Dimension
1 Length (with bucket on ground) 7248(mm)
2 Width (to the outside of wheels) 2570(mm)
3 Bucket width 2685(mm)
4 Height (to the top of the cab) 3415(mm)
5 Wheel base 3080(mm)
6 Tread 2050(mm)
7 Min. ground clearance 408(mm)
Main Technical Specification
1 Rated load 4000(Kg)
2 Operating weight 13200KG
3 Rated bucket capacity 2.3(m3)
4 Max. breakout force 134kN
5 Max. dump clearance 2815(mm)
6 Dump reach 1050(mm)
7 Dump angle at any position ≥45°
8 Digging depth (with bucket bottom horizontal) 190(mm)
9 Max. turning radius
(1) Outside of bucket 6300(mm)
(2) Outside of rear wheel 5730(mm)
10 Pivot angle frame 38+
11 Oscillating angle of rear axle +11°
12 Lifting time of bucket ≤6.2(sec.)
13 Lowering time of bucket ≤3.8(sec.)
14 Dumping time ≤1.8(sec.)
15 Traveling speed (Km/h), 2 forward and 1 reverse
(1) 1st gear forward 11
(2) 2nd gear forward 36
(3) 1st gear reverse 15
Diesel Engine
1 Model Dongfeng Cummins engine 6BTA5.9-C175
2 Type Direct injection. Turbocharged. Water cooling
3 Rated output 128 (kW)
4 Inter-bore of cylinder / stroke 102×120(mm)
5 Total exhaust of cylinder 5.9(L)
6 Current of Alternator 70(A)
7 Power of starting motor 6(KW)
8 Voltage of starting motor 24(V)
9 Rated speed 2100(r/min)
10 Max. torque 651(N.M)/1500rpm
11 Starting mode Electric
12 Min. specific fuel consumption 207(g/Kw.h)
13 Specific oil consumption of engine 0.9-1.6(g/Kw.h)
14 Net weight 710(kg)
Transmission System
1. Torque Converter
1 Model YJHSW315
2 Type 4-elements. Double stage
3 Torque ratio 4
4 Cooling type Pressure oil circulating
2. Transmission Case
1 Model Z40-3000
2 Type power shift, constant-mesh spur gear
3 Gear shift position 2 forward and 1 reverse gears
3. Axle and Tire
1 Type of main reducer Spiral bevel gear, single stage
2 Gear ratio of main reducer 5.286
3 Type of final reducer Single stage planetary
4 Gear ratio of final reducer 4.4
5 Total ratios 23.258
6 Max. drawing force 120kN
7 Size of tire 20.5-25-16PR
Working Device Hydraulic System
1 Model of oil pump CBGj 3140
2 System pressure 180(kgf/cm2)
3 Model of multi-way directional valve D32II
4 Pilot valve DJS2-UX/UU
5 (D×L) Dimension of lifting cylinder Ф150×80×695(mm)
6 (D×L) Dimension of tilt cylinder Ф180×90×468(mm)
Steering System
1 Type Middle articulated frame. Full-Hydraulic flow amp. Steering
2 Model of steering pump CBGj 2063 / 1016-XF
3 Model of redirector BZZ1-E630C+FKA-146020
4 Model of distribution valve FLD-F48H
5 System pressure 14MPa
6 Dimension of steering cylinder Ф70×40×460(mm)
Brake System
1 Type of traveling brake Air over oil activate 4 wheel brake with caliper disc brake
2 Air pressure 6-8(kgf/cm2)
3 Type of emergency brake Automatic cutting air brake
4 Type of parking brake Drum brake Manual control cutting-off air brake
Oil Capacity
1 Fuel (diesel) 200(L)
2 Engine lubricating oil 13.5(L)
3 Oil for converter and gear box 45(L)
4 Oil for hydraulic system 160(L)
5 Oil for driving axles (F/R) 24/24(L)
6 Oil for brake 2×1.0(L)
