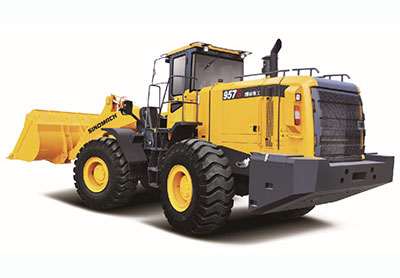

957S Wheel Loader

Our 957S wheel loader is equipped with high quality SHANGCHAI SC11CB220G2B1 engine or Cummins engine. It uses 4 forward and 3 reverse power shift transmission. The front end loader is also provided with dual-pump confluence hydraulic system and load-sensing fully hydraulic steering system. What's more, it adopts KD switch with simple and efficient operation, as well as sealed cylinder with high sealing capacity and reliability.

Specifications of Wheel Loader
Overall Dimension
1 Length(with bucket on ground) ShangChai SC11CB220G2B1 engine Cummins engine
8130(mm) 8270(mm)
2 Width(to outside of wheels) 2800(mm)
3 Bucket width 2946(mm)
4 Height(To the top of the cab) 3450(mm) 3490(mm)
5 Wheel base 3200(mm)
6 Tread 2200(mm)
7 Min. ground clearance 450(mm)
Main Technical Specification
1 Rated load 5000(Kg)
2 Operating weight 16700KG
3 Rated bucket capacity 3.0(m3)
4 Max. breakout force 165kN
5 Max. traction 150kN
6 Max. gradient ability 300
7 Max. dump clearance 3050(mm)
8 Dump reach 1107(mm)
9 Dump angle at any position ≥450
10 Digging depth(with bucket bottom horizontal) 165(mm)
11 Min. turning radius
(1) Outside of bucket 6775(mm)
(2) Outside of rear wheel 6098(mm)
12 Pivot angle frame 380
13 Oscillating angle of rear axle +13o
14 Lifting time of bucket ≤5.6(sec.)
15 Lowering time of bucket ≤3.7(sec.)
16 Dumping time ≤1.7(sec.)
17 Traveling speed(Km/h), 4 forward and 3 reverse
(1) 1st gear(F/R) 6.7/6.7
(2) 2nd gear (F/R) 12.2/12.2
(3) 3rd gear (F/R) 25.6/25.6
(4) 4rd gear(F) 39
Diesel Engine
1 Model ShangChai SC11CB220G2B1 engine 6CT AA 8.3-C215 (TIER2)
2 Type Direct injection. Turbocharge. Water cooling
3 Rated output 162 (kW) 160 (kW)
4 Inter-bore of cylinder/stroke 121/152(mm) 114/135 (mm)
5 Total exhaust of cylinder 10.5(L) 8.3 (L)
6 Model of starting motor KB-24V 42MT
7 Power of start motor 7.5(KW) 8.2(KW)
8 Voltage of starting motor 24(V) 24(V)
9 Rated speed 2200(r/min.)
10 Max. Torque 843±6%(N.m)/1400(r/min) 998(N.M)
11 Starting type Electric
12 Min. specific fuel consumption 230(g/Kw.h) 207(g/Kw.h)
13 Engine specific oil consumption 0.95-1.77(g/Kw.h) 0.9-1.6(g/Kw.h)
14 Net weight 960(Kg) 617(kg)
Transmission System
1. Torque Converter
1 Model ZF technology WG200
2 Type 3-elements.single stage
3 Torque ratio 2.55
4 Cooling type Pressure oil circulating
2. Transmission case
1 Model ZF technology WG200
2 Type power shift, spur gear constant-mesh
3 Gear shift position 4 Forward and 3 reverse gears
3. Axle and Tire
1 Type of main reducer spiral bevel gear, single stage
2 Gear ratio of main reducer 4.556
3 Type of final reducer Single stage planetary
4 Gear of ratio of final reducer 5
5 Total ratios 22.78
6 Size of tire 23.5-25-16PR
Working Device Hydraulic System
1 Model of oil pump JHP3160C
2 System pressure 180(kgf/cm2)
3 Model of multi-way directional valve GDF-32-YL18/D32II-YL20
4 Pilot valve DJS2-UX/UU
5 (D*L)Dimension of lifting cylinder Ф160*90*810(mm)
6 (D*L)Dimension of tilting cylinder Ф180*90*563(mm)
Steering System
1 Type Middle articulated frame. Full-hydraulic Steering
2 Model of steering pump JHP2080S
3 Model of redirector TLF1-E1000B+FKB6020
4 Model of priority valve YXL-F250F-16N7-A
4 System pressure 16MPa
5 Dimension of steering cylinder Ф90*435 (mm)
Brake System
1 Type of traveling brake Air over hydraulic brake system (for Cummins) Air over hydraulic brake system (for SC11CB220G2B1)
2 Type of axel brake Wet type multi-disc brake in axle
3 Max. brake oil pressure 55(kgf/cm2)
4 Type of emergency brake Manual control cutting-off air brake
5 Type of parking brake Drum brake Manual control cutting-off air/oil brake
Oil Capacity
1 Fuel(diesel) 250(L)
2 Engine lubricating oil Cummins :19(L) ShangChai:27(L)
3 Oil for converter and gear box 42(L)
4 Oil for hydraulic system 250(L)
5 Oil for driving axles(F/R) 32(L)
