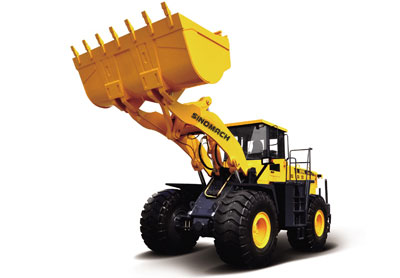

996 Wheel Loader

The 996 wheel loader is equipped with a reliable original Cummins engine, ZF transmission case and torque converter. Also, it comes with original ZF wet-type axles with multi-disc limited-slip differentials. Its KD switch assures higher efficiency and easy operation. Its 24° cone-shaped seal cylinder comes with high sealing performance.

In addition, the front end loader comes with a single brake valve, dual pipe fully hydraulic brakes and central lubrication system.

Specifications of Wheel Loader 996:
Overall Dimension
1 Length(with bucket on ground) 9343(mm)
2 Width(to outside of wheels) 3200(mm)
3 Bucket width 3500(mm)
4 Height(To the top of the cab) 3832(mm)
5 Wheel base 3650(mm)
6 Tread 2450(mm)
7 Min. ground clearance 461(mm)
Main Technical Specification
1 Rated load 9000(Kg)
2 Operating weight 31500kg
3 Rated bucket capacity 5.1(m3)
4 Max. breakout force 264KN
5 Max. Drawing force 269 KN
6 Max. dump clearance >3325(mm)
7 Dump reach 1400(mm)
8 Dump angle at any position ≥450
9 Digging depth 250(mm)
10 Min. turning radius
(1)Outside of bucket 7511(mm)
(2)Outside of rear wheel 6614(mm)
11 Pivot angle frame 400
12 Oscillating angle of rear axle +12o
13 Lifting time of bucket 6.0(sec.)
14 Lowering time of bucket 3.4(sec.)
15 Dumping time of bucket 1.6(sec.)
16 Traveling speed(Km/h)
(1)1st gear (Forward & reverse) 6.4
(2)2nd gear (Forward & reverse) 11.94
(3)3rd gear (Forward & reverse) 18.72/25.92
(4)4th gear (Forward) 37
Diesel engine
1 Model Original Cummins M11-C335 M11-C335
2 Type Direct injection. Turbocharged. Water cooling
3 Rated output 250(Kw)
4 Inter-bore of cylinder/stroke 125/147(mm)
5 Total exhaust of cylinder 10.8(L)
6 Model of starting motor 39MT-HD
7 Power of starting motor 8(KW)
8 Voltage of starting motor 24(V)
9 Rated speed 2100(r/min.)
10 Max. Torque 1674(N.m)
11 Starting type Electric
12 Min. specific fuel consumption 215(g/Kw.h)
13 Engine specific oil consumption 1.0 (g/Kw.h)
14 Net weight 984(Kg)
Transmission System
1. Torque Converter
1 Type 3-element.single stage
2 Torque ratio 2.511
3 Max. Dia. of flow path 400(mm)
4 Cooling type Pressure oil circulating
2. Gear Box
1 Model ZF4WG310
2 Type Power shift, spur gear constant-mesh
3 Gear shift position 4 Forward and 3 reverse gears
3. Axle and Tire
1 Type of main reducer Spiral gear single stage
2 Gear ratio of main reducer 5
3 Type of final reducer single stage planetary
4 Gear of ratio of final reducer 5.4
5 Total ratios 27
6 Size of tyre 29.5-25 -22PR(L-3)
Working Device Hydraulic System
1 Model of oil pump AV0V0 100 DRS/53R-VWC12G60
2 System pressure 26(MPa)
3 Model of Muti-way directional valve M6-1416-00/3M6-22EH
4 (d*l)Dimension of lifting cylinder 2-Ф200*110*790(mm)
5 (D*l)Dimension of tilting cylinder 1-Ф225*125*575(mm)
Steering System
1 Type Middle articulated frame. full hydraulic power
2 Model of steering pump HA10VO110DFR1/31R-VWC 12 H00
3 Model of redirector 150-7170
4 Model of Magnify valve 150F0040
5 System pressure 21MPa
6 Dimension of steering cylinder 2-Ф110*55*486(mm)
Brake System
1 Type of traveling brake Wet type multi-disc brakeSingle brake valve& dual pipe, full hydraulic brake
2 Braking pump AZPF-11-016-RRR20KB-S0023
3 System pressure 16 (MPa)
4 Type of emergency brake Lower pressure alarm brake
5 Type of parking brake Electric control brake
Oil Capacity
1 Fuel(diesel) 480(L)
2 Engine oil 32(L)
3 Oil for converter and gear box 43(L)
4 Oil for hydraulic system 260(L)
5 Oil for driving axles(F/R) 51(L) for each
