Wheel Loader 9126

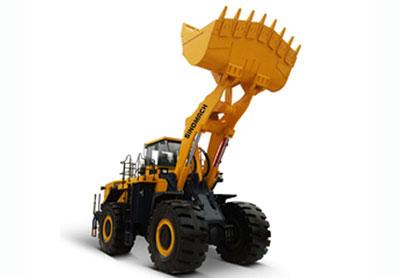

9126 Wheel Loader

1. This 9126 Wheel Loader is suitable for heavy-duty loading work
2. High power electric motor built to Euro III emission standards
3. Electronic-hydraulic control power shift gearbox offers both automatic and manual transmission. 4 forward gears and 4 reverse gears for maximum comfort in operation.
4. Feedback system warns users against high voltage, overload, and other variations in operating status. This accounts for the excellent digging and loading performance, thereby saving energy and improving efficiency.
5. Loader arm comes with smart vibration damping mechanism for prolonged service life and maximum stability and comfort in operation.
6. Reverse rotation fan comes with intelligent temperature control, saving energy and reducing overall maintenance.
7. Hydraulic brake, coupled with pilot-operated safety valve, ensures safety in travel.
8. FOPS/ROPS driver cabin offers a high viewpoint and comfortable operating space.

Technical Specification:
Model 9126
Length×Width×Height(mm) 11810×3685×4530
Rated load(Kg) 12000
Rated bucket capacity(m3) 6.6
Operating weight(Kg) 51300
Diesel engine Mercedes OM502LA.E3A -4
Rated output(KW) 390
Transmission case USA 8421
Gear positions 8 in total, including 4 forward and 4 reverse gears
Max. traction (KN) 397
Max. breakout force(KN) 391
Max. dump clearance(mm) 3873
Dump reach(mm) 1816
Wheel base(mm) 4500
Total cycle time (s) 15.4
Changlin Construction Machinery and Engineering Vehicle, High Quality!!
