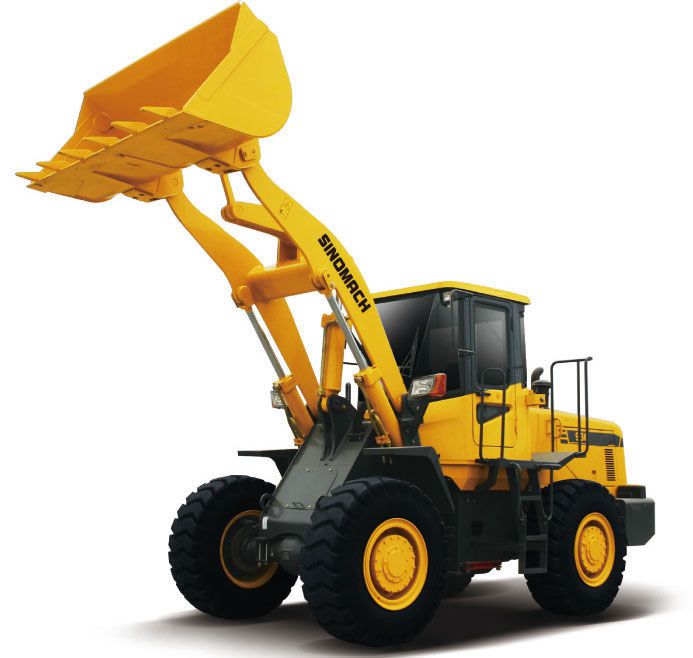

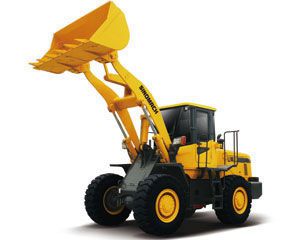

Equipped with Chinese WeiChai Deutz Engine
3 forward 3 reverse power shift transmission
Combined seal cylinder obtains high seal performance and more reliability
Overall Dimension | ||
1 | Length(with bucket on ground) | 6920mm |
2 | Width(to outside of wheels) | 2305mm |
3 | Bucket width | 2430mm |
4 | Height(To the top of the cab) | 3150mm |
5 | Wheel base | 2750mm |
6 | Tread | 1855mm |
7 | Min. ground clearance | 360mm |
Main Technical Specification | ||
1 | Rated load | 3000Kg |
2 | Operating weight | 10200KG |
3 | Rated bucket capacity | 1.7m3 |
4 | Max. breakout force | 96kN |
5 | Max. dump clearance | 2934mm |
6 | Dump reach | 1043mm |
7 | Dump angle at any position | ≥450 |
8 | Min. turning radius | |
(1) Outside of bucket | 5600mm | |
(2) Outside of rear wheel | 5205mm | |
9 | Pivot angle frame | 38+10 |
10 | Oscillating angle of rear axle | +110 |
11 | Lifting time of bucket | ≤5.2sec. |
12 | Lowering time of bucket | ≤5.1sec. |
13 | Dumping time | ≤1.2sec. |
14 | Traveling speed,3 forward and 3 reverse | |
(1) 1st gear forward | 6.4Km/h | |
(2) 2nd gear forward | 13.2Km/h | |
(3) 3rd gear forward | 30.6Km/h | |
(1) 1st gear reverse | 8.3Km/h | |
(2) 2nd gear reverse | 16.9Km/h | |
(3) 3rd gear reverse | 27.6Km/h | |
Diesel engine | ||
1 | Model | Deutz TD226B-6IG15 |
2 | Type | Direct injection. Turbocharged. Water cooling |
3 | Rated output | 92KW |
4 | Inter-bore of cylinder/stroke | 105 /120mm |
5 | Total exhaust of cylinder | 6.234L |
6 | Voltage of starting motor | 24V |
7 | Power of starting motor | 6KW |
8 | Rated speed | 2200r/min |
9 | Max. Torque | 550N.M |
10 | Starting type | Electric |
11 | Min. specific fuel consumption | 225g/Kw.h |
Transmission System | ||
1. Torque Converter | ||
1 | Model | YJH315F-5 (Shanxi Aerospace Power) |
2 | Type | 3-elements. Single stage |
3 | Torque ratio | 3.1 |
4 | Cooling type | Pressure oil circulating |
2. Transmission case | ||
1 | Model | Chinese Sinomach |
2 | Type | Power shift, spur gear constantly in mesh |
3 | Gear shift position | 3 Forward and 3 reverse gears |
3. Axle and Tire | ||
1 | Type of main reducer | spiral bevel gear, single stage |
2 | Gear ratio of main reducer | 3.889 |
3 | Type of final reducer | Single stage planetary |
4 | Gear of ratio of final reducer | 4.941 |
5 | Total ratios | 19.216 |
6 | Max. drawing force | 87kN |
7 | Size of tire | 17.5-25-12PR |
Working Device Hydraulic System | ||
1 | Model of oil pump | CBGj2100(SAE) |
2 | System pressure | 160kgf/cm2 |
3 | Model of multichannel conversion valve | DF-32D2-YL16 |
5 | (D*L)Dimension of lifting cylinder | Ф125*70*697mm |
6 | (D*L)Dimension of tilting cylinder | Ф150*70*470mm |
Steering System | ||
1 | Type | Middle articulated frame. Full-hydraulic Steering |
2 | Model of steering pump | CBGj2050 |
3 | Model of steering gear | BZZ1-E400C+FKA-143020 |
4 | Model of Single-channel stable shunt valve | FLD-D30H |
5 | System pressure | 14MPa |
6 | Dimension of steering cylinder | Ф70*40*323mm |
Brake System | ||
1 | Type of traveling brake | Air assisted oil.4 wheel brake |
2 | Air pressure | 7-8kgf/cm2 |
3 | Type of emergency brake | Automatic cutting air brake |
4 | Type of parking brake | Drum brake Manual control cutting off air brake |
Oil Capacity | ||
1 | Fuel(diesel) | 130L |
2 | Engine lubricating oil | 17(L) |
3 | Oil for converter and gear box | 35(L) |
4 | Oil for hydraulic system | 120(L) |
5 | Oil for driving axles(F/R) | 11/11L |
