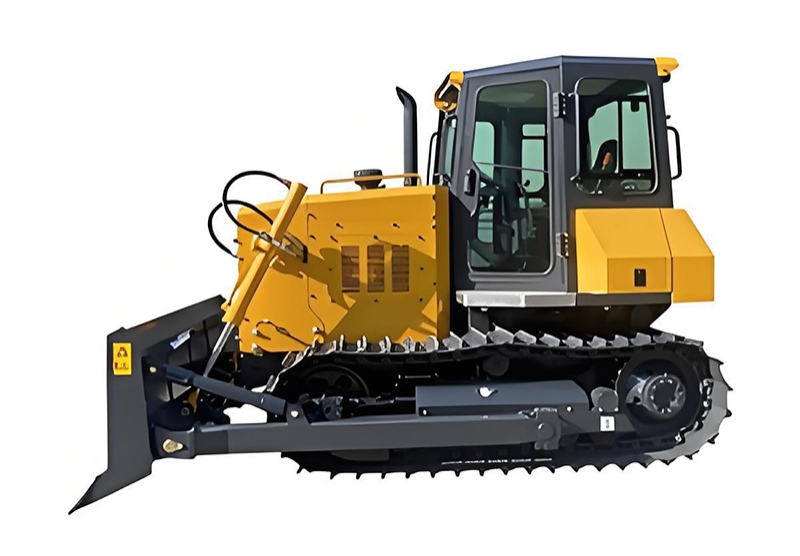

Bulldozer GTYH08

The GTYH08 hydrostatic bulldozer is independently developed by SINOMACH-HI. It not only inherits the durability and robustness of traditional models, but also integrates closed-loop hydrostatic control technology, achieving an optimal balance between power output and precise machine control. Whether operating in extreme mining conditions or performing fine grading in urban and rural road construction, the GTYH08 hydrostatic bulldozer delivers exceptional transmission efficiency and outstanding load-adaptive performance for easy handling of complex working environments.

  • Operating Weight: 8900kg
  • Rated Power: 70 kW
  • Blade Width: 2450mm
Bulldozer GTYH08
Inquiry
Specifications
Model GTYH08
Type Standard hydraulic crawler
Engine model YTOLR4A3Z-22
Rated power 70/2200 kW/rpm
Operating weight(without ripper) 8900kg
Dimensions (L×W×H) (without ripper) 4020×2450×2800mm
Ground clearance 350mm
Ground pressure 49.9KPa
Track gauge 1470mm
Dozing capacity 2.1m³
Blade width 2450mm
Blade height 950mm
Blade lifting height 700mm
Max. digging depth of blade 350mm
Track board width 400mm
Track pitch 154mm
Number of track links 42
Number of carrier rollers 1
Number of track rollers 6
Max. working pressure 17.5MPa
Hydraulic flow 100L/min
Gradeability 30°
Forward speed F:0-10Km/h
Reverse speed R:0-10Km/h
Drawbar / ripper (optional) Fixed type / three-shank
Features
  • Hydrostatic Drive & Rapid Response The bulldozer uses hydraulic pumps and drive motors sourced from leading international brands such as Linde and Rexroth. The hydrostatic drive system delivers fast response, smooth power transmission, and precise control in all working conditions.

  • Load Adaptive & Intelligent Control The bulldozer automatically adjusts power output according to real-time load conditions and supports multiple working mode switching. The travel and working systems are controlled via a single electronic joystick, providing smooth operation and significantly reducing operator fatigue.

  • Ergonomic Hexahedral Cab The equipment is equipped with a newly designed ergonomic hexahedral cab that offers a spacious interior, wide field of vision, and excellent sealing performance. A smart digital monitoring terminal comes as standard, allowing full real-time access to machine status information.

  • Modular Design & Easy Maintenance The bulldozer adopts a modular structural design, making disassembly and maintenance faster and more convenient while reducing overall failure rates. The LED lights are installed to ensure reliable operation in night-time construction conditions.
