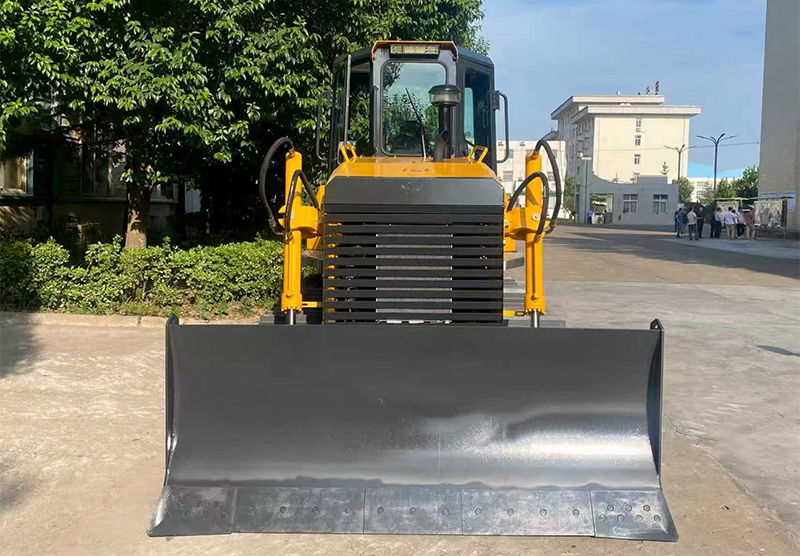

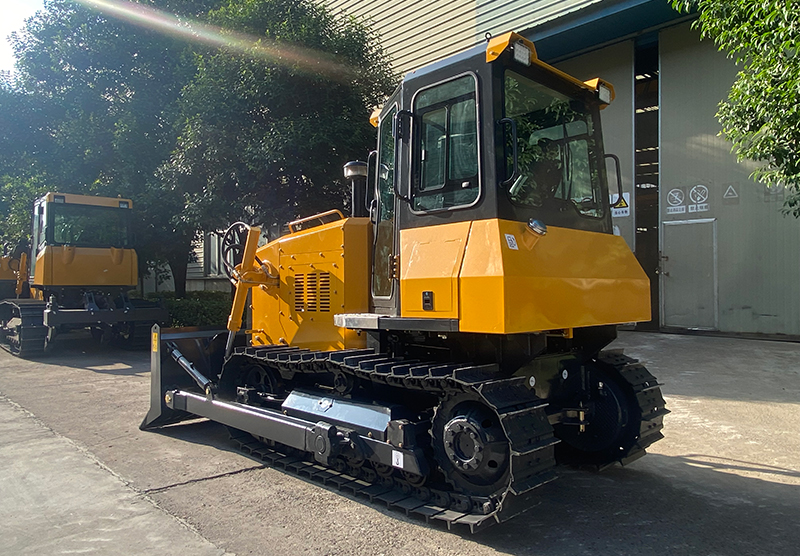

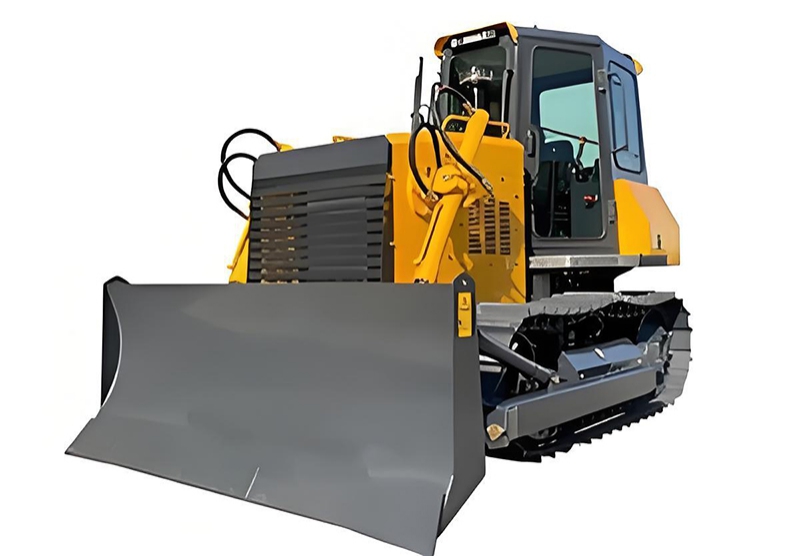

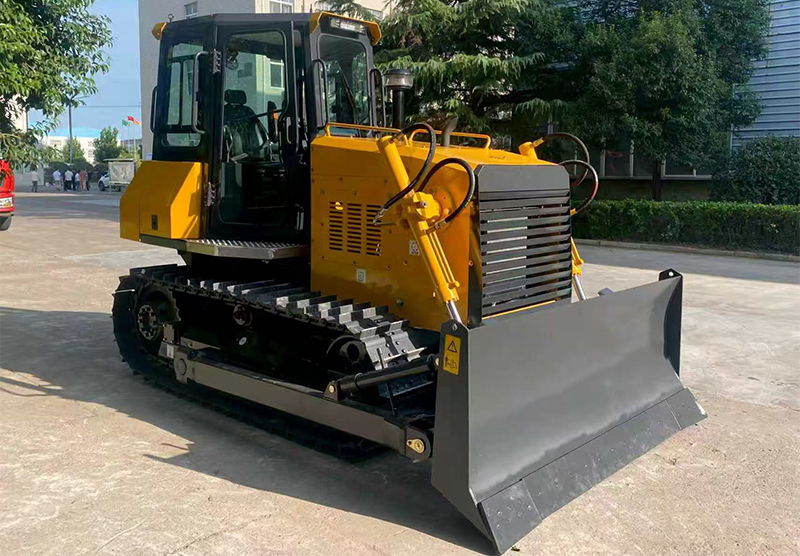

Bulldozer GTY08

The GTY08 standard bulldozer features mechanical transmission, hydraulic power-assisted steering, and 80 hp engine. The equipment is designed to deliver low failure rates, easy maintenance, and a high return on investment. Its compact structure allows efficient operation in confined spaces, making it well suited for applications in road construction, railway projects, water conservancy works, and urban and rural development.

  • Operating Weight: 8500KG
  • Rated Power: 70 kW
  • Blade Width: 2450mm
Inquiry
Bulldozer GTY08
  • Bulldozer GTY08
  • Bulldozer GTY08
  • Bulldozer GTY08
  • Bulldozer GTY08
  • Bulldozer GTY08
    • Specifications
    Model GTY08
    Type Standard mechanical crawler
    Engine model YTO
    Rated power 70/2200kW/rpm
    Operating weight(without ripper) 8500kg
    Dimensions (L×W×H) 4020×2450×2800mm
    Ground clearance 350mm
    Ground pressure 47.6KPa
    Track gauge 1470mm
    Dozing capacity 2.1m³
    Blade width 2450mm
    Blade height 950mm
    Blade lifting height 700mm
    Max. digging depth of blade 350mm
    Track board width 400mm
    Track pitch 154mm
    Number of track links 42
    Number of carrier rollers 1
    Number of track rollers 6
    Gradeability 30°
    Forward speed F:2.61-10.76km/h
    Reverse speed R:5.41-8.93km/h
    Drawbar / ripper (optional) Fixed / three-shank
    Features

    • Powerful & Eco-friendly Engine The bulldozer is equipped with a powerful and eco-friendly diesel engine developed through joint technology from YTO (Dongfanghong) and Ricardo, meeting China Stage II emission standards while providing high torque, low noise, and energy-efficient performance.

    • Ergonomic Operating Environment The operating environment features a high-strength welded steel cab that enhances safety, along with a standard heating system and an optional air conditioning system for both cooling and heating. The hydraulic power-assisted steering system enables lighter and more flexible operation.

    • Stable Transmission System The transmission system adopts a 4F+2R fixed-shaft mechanical gearbox, ensuring stable and efficient power transmission.

    • Reinforced Chassis & Undercarriage The reinforced chassis and undercarriage incorporate a semi-rigid suspension system and four-track components, significantly improving impact resistance and overall durability.
