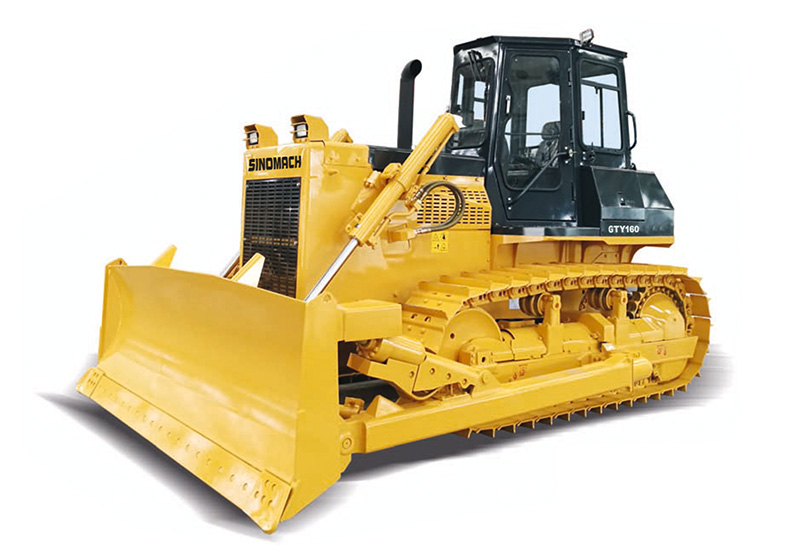

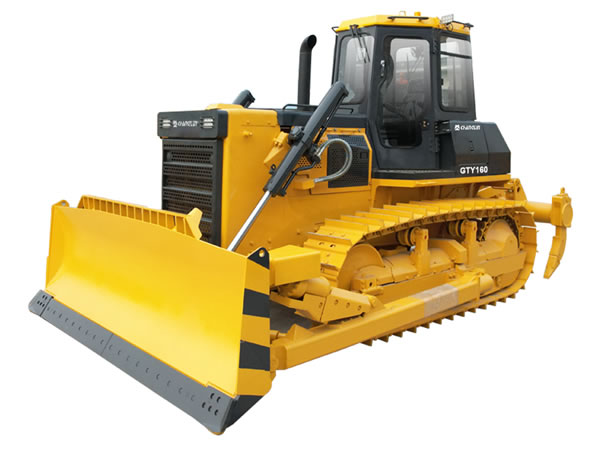

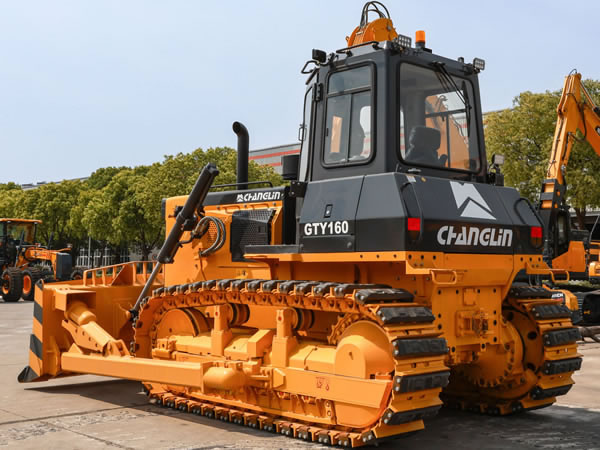

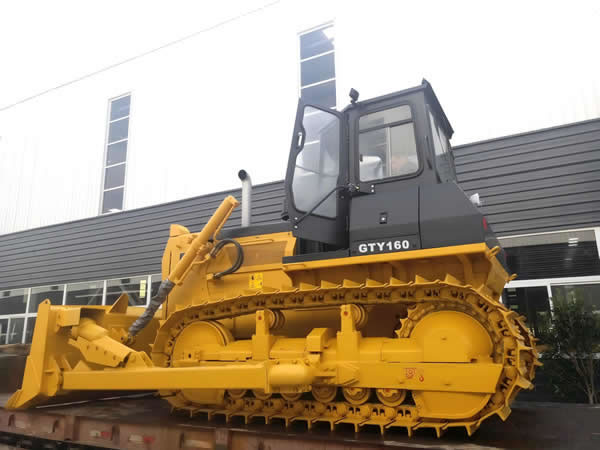

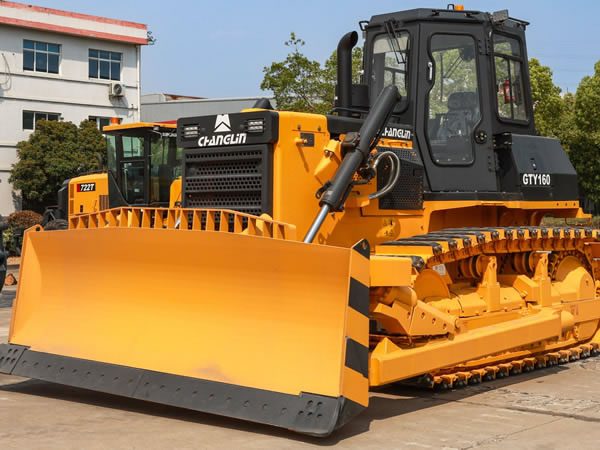

Hydraulic Bulldozer GTY160

The GTY160 hydraulic bulldozer features advanced technology, a modern design, strong power, and high efficiency. It is capable of operating in harsh working environments and is easy to maintain and repair.

It is mainly used for pushing, excavating, and backfilling earthwork, as well as handling other bulk materials in the construction of roads, railways, mines, and airports. It is an indispensable piece of equipment for national defense projects, mining construction, urban and rural road construction, and water conservancy projects.

  • Operating Weight: 16.4T
  • Rated Power: 175KW
  • Max. Traction Force: 144KN
Inquiry
Video
Hydraulic Bulldozer GTY160
  • Hydraulic Bulldozer GTY160
  • Hydraulic Bulldozer GTY160
  • Hydraulic Bulldozer GTY160
  • Hydraulic Bulldozer GTY160
  • Hydraulic Bulldozer GTY160
    • Specifications
    Model GTY160
    Engine model Weichai WP10G178E355
    Displacement (L) 9.726
    Engine type 6-cylinder, 4-stroke, water-cooled diesel engine
    Rated power (HP/rpm) 175/1850
    Engine emissions Standard China Stage Ⅲ
    Max. torque (N.m/rpm) 830/1000-1200
    Operating weight (T) 16.4
    Dimensions (no ripper) (mm) 4990×3440×3110
    Min ground clearance (mm) 405
    Ground pressure (MPa) 0.067
    Track gauge (mm) 1880
    Dozing capacity (m³) 4.55
    Blade width (mm) 3440
    Blade height (mm) 1135
    Max drop below ground (mm) 540
    Track shoe width (mm) 510
    Pitch (mm) 203.2
    Quantity of track link 37
    Track rollers 7
    Max pressure (MPa) 14
    Blade adjusted 4 directions
    Electrical system 24-volt ,two batteries,12-volt battery
    Transmission system Torque converter
    Steering system Hydraulic pilot control system
    Forward gear speeds (km/h) F1:0-3.29
    F2:0-5.82
    F3:0-9.63
    Reverse gear speeds (km/h) R1:0-4.28
    R2:0-7.59
    R3:0-12.53

    Other Equipment

    • Grease guard
    • Transmission guard
    • Lower pulley and sprocket protection plate
    • Digital hour meter
    Features
    • Hydraulic Bulldozer GTY160

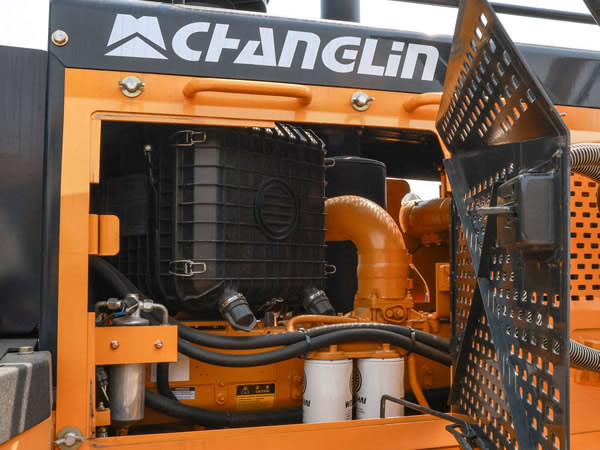

      A Weichai WP10G178E355 engine gives you the power and reliability you need. Improved fuel economy over the previous model, with strong torque output and low fuel consumption, provides excellent overall fuel efficiency.

    • Hydraulic Bulldozer GTY160

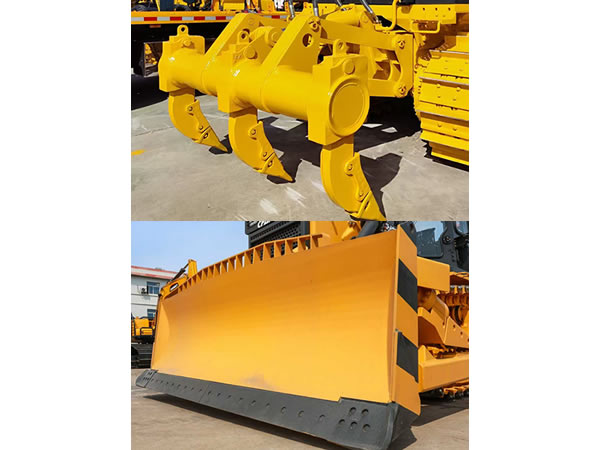

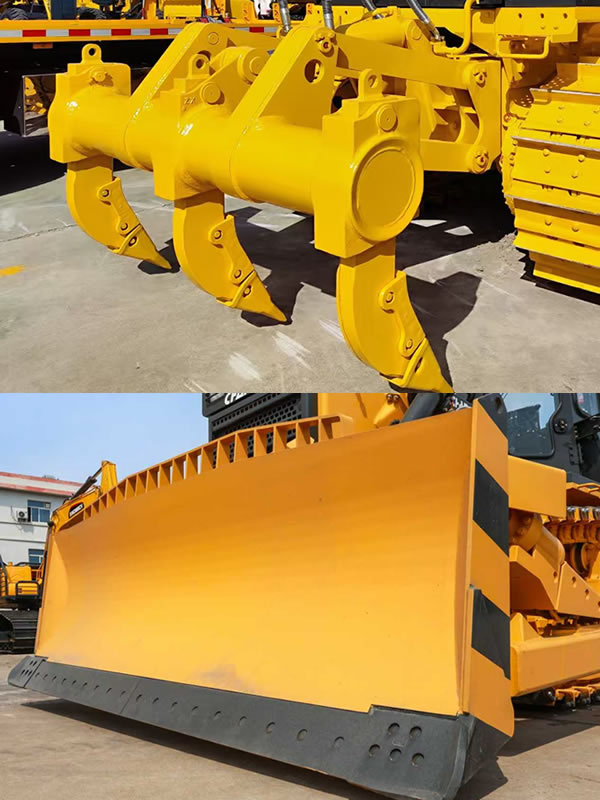

      The standard straight tilt blade features powerful cutting force, and the three-shank ripper can be equipped for ripping clay and frozen earth, featuring high working efficiency and super-strong penetrating force.

    • Hydraulic Bulldozer GTY160

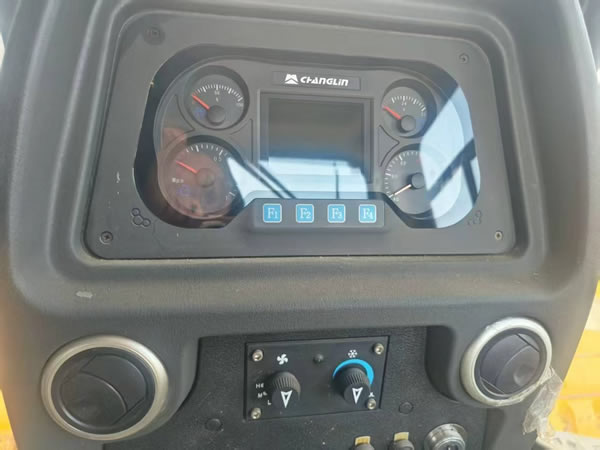

      The use of waterproof connectors throughout the whole vehicle, together with new relays and injection-molded instruments, can effectively reduce electrical system failures. The instrument box integrates air conditioning, electrical components, and instruments into one unit, making it more attractive and luxurious.

    • The gearbox uses a planetary gear structure that operates the hydraulic control valve to achieve forward, reverse, and various gear shifts. The structure consists of planetary gears, a multi-plate clutch, and hydraulics combined with forced lubrication, and provides three forward and three reverse gears.
    • The closed system keeps the tank pressure at a specific value, which increases the evaporation temperature and heat dissipation efficiency of the cooling water. The fan power comes from the engine, and the forced air supply increases the cooling effect.
    • The mainstream 14 MPa working hydraulic system can greatly reduce the failure rate of hydraulic components and features an overload protection function.
    • The main frame, with a full box-type welded steel plate structure, is integrally welded with the rear axle housing. It has high impact load-bearing capacity and strong resistance to bending and twisting. High-quality weld seams ensure a full service life of the main frame.
    • The swing-type balance beam suspension structure with a splayed beam is connected to the frame and traveling system to transmit working loads and impact loads to the main frame during operation, which effectively improves the stability of small-sized bulldozers under complicated working conditions.
