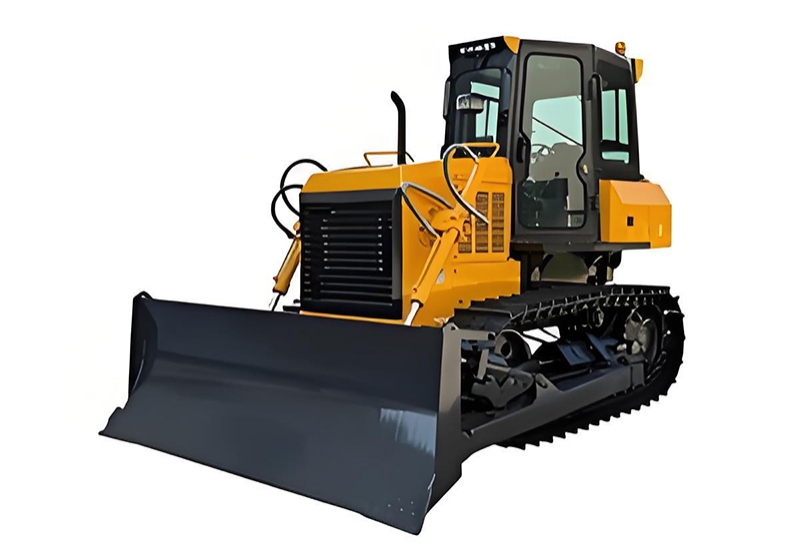

Bulldozer GTYH11

The GTYH11 bulldozer is a new hydrostatic drive crawler independently developed by SINOMACH-HI. It integrates strong power output with precise hydrostatic control technology, delivering high transmission efficiency, easy operation, and outstanding system reliability. Whether in demanding mining construction, complex defense engineering projects, or fine-grade urban and rural road operations, the GTYH11 bulldozer provides stable performance across a wide range of working conditions.

  • Operating Weight: 11000kg
  • Rated Power: 81 kW
  • Blade Width: 2960mm
Video
Bulldozer GTYH11
Inquiry
Specifications
Model GYTH11
Type Standard hydraulic crawler type
Engine model YTO LR6A3-23
Rated power 81/2300 kW/RPM
Operating weight(without ripper) 11000kg
Dimensions (L×W×H) (without ripper) 4400×2960×3030mm
Ground clearance 368mm
Ground pressure 56.5KPa
Track gauge 1650mm
Dozing capacity 2.6m³
Blade width 2960mm
Blade height 960mm
Blade lifting height 830mm
Max. digging depth of blade 350mm
Track board width 450mm
Track pitch 171mm
Number of track links 39
Number of carrier rollers 1
Number of track rollers 6
Max. working pressure 17.5MPa
Hydraulic flow 100L/min
Gradeability 30°
Forward speed F:0-10Km/h
Reverse speed R:0-10Km/h
Drawbar / ripper (optional) Fixed type / three-shank
Features
  • Closed Hydrostatic Drive & Instant Response The Bulldozer adopts a closed-loop hydrostatic system as its core drive, delivering strong power and fast response. The hydraulic system uses internationally renowned components from brands such as Linde and Rexroth, ensuring long-term stability and operational reliability throughout the full lifecycle.

  • Load-Adaptive Intelligence The bulldozer is equipped with load-adaptive control technology that automatically adjusts power output based on real working conditions. The system supports multiple working mode switching, achieving an optimal balance between power performance and fuel efficiency.

  • Precise Single-Lever Control The travel and working systems are both controlled through an electro-hydraulic single joystick, offering smooth, flexible, and precise operation. The stepless speed control function ensures seamless switching between forward and reverse movement, significantly improving operating comfort.

  • Ergonomic Operator Environment The bulldozer features a newly designed ergonomic hexahedral cab with excellent visibility and superior sealing performance. A smart integrated digital monitoring terminal is installed as standard, allowing real-time tracking of machine status with clear and intuitive data display.
