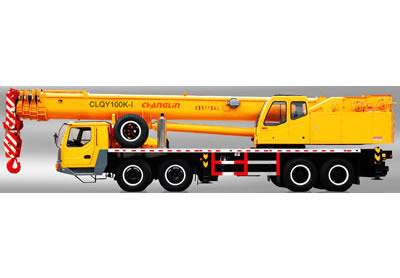

CLQY100K-I Truck Crane

CLQY100K-I Truck Crane

This product has been discontinued and removed from our shelves.

1. Innovative boom system features built-in slides, flip-sheave boom head, and a telescopic boom with octagonal cross-section. Excellent lifting performance. Maximum safety and reliability.
2. Patented telescopic boom technology prevents boom breakage or warping of the boom and hydraulic cylinder.
3. Boom truck has 8 patented technologies built in it, ensuring maximum energy savings, efficiency and smooth lifting, slewing and boom reach adjustment operation.
4. Torque limiter comes with a color LCD screen for fault diagnosis, delivering industry-leading accuracy.
5. Large torque hydraulic motor ensures safety during the second lifting cycle.
6. Ergonomic diver cab provides a large space for easy and effortless operation.
7. Six proprietary processing technologies ensure the quality of boom truck.
8. 5-ton counterweight is added to the truck crane.

Technical Specification:
Model CLQY100K-I
Length×width×height(mm) 15600×3000×3850
Operating weight (Kg) 54900
Diesel engine type Up VOLVO TAD720VE/ Down Benz OM460LA.E3A
Rated output (KW) 174/360
Max load moment (KN.m) 3450
Max. total rated lifting capacity (t) 100
Maximum gradeability (%) 40
Max. slewing speed (r/min) 2
Base boom length (m) 13.5
Max. boom length (m) 50.9
