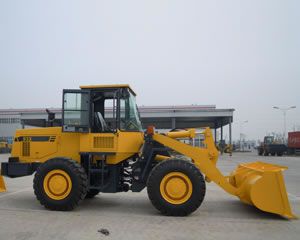

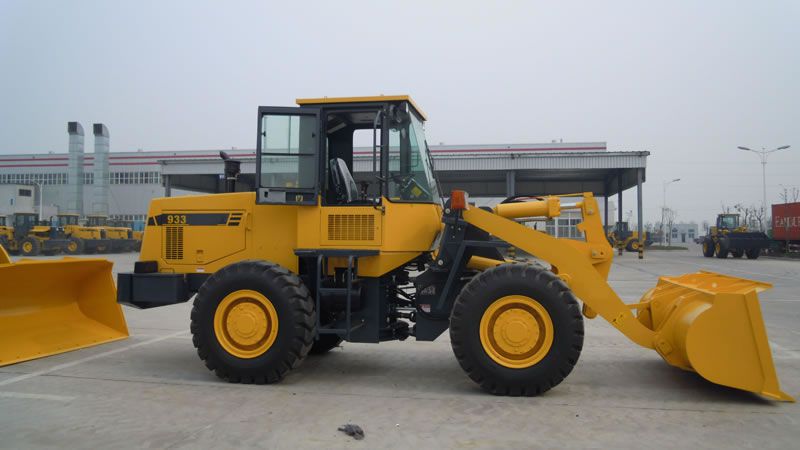

933 Wheel Loader
Features of 933 Wheel Loader
1. Our 933 type front end loader is powered by dependable Chinese YITUO or YUCHAI diesel engine that provides high fuel efficiency along with high torque at low engine speeds.
2. Power shift transmission of this heavy equipment is designed with 3 forward and 3 reverse gears.
3. The wheel loader’s rated load is up to 3000 Kg and the maximum breakout force reaches 96KN.
3. Cylinders in this engineering vehicle feature combined sealing structure which ensures high seal performance and remarkable reliability.
| Overall Dimension (mm) | ||||||
| 1 | Length (with bucket on ground) | 6863 | ||||
| 2 | Width (to the outside of wheels) | 2305 | ||||
| 3 | Bucket width | 2460 | ||||
| 4 | Height (to the top of cab) | 3095 | ||||
| 5 | Wheel base | 2750 | ||||
| 6 | Wheel tread | 1855 | ||||
| 7 | Min. ground clearance | 370 | ||||
| Main Technical Specifications of the Wheel Loader | ||||||
| 1 | Rated load | 3000Kg | ||||
| 2 | Operating weight | 10200Kg | ||||
| 3 | Rated bucket capacity | 1.7m3 | ||||
| 4 | Max. breakout force | 96kN | ||||
| 5 | Max. dump clearance | 2850mm | ||||
| 6 | Dump reach | 1030mm | ||||
| 7 | Dump angle at any position | ≥45° | ||||
| 8 | Min. turning radius | |||||
| (1) Outside of bucket | 5600mm | |||||
| (2) Outside of rear wheel | 5205mm | |||||
| 9 | Pivot angle frame | 38+1° | ||||
| 10 | Oscillating angle of rear axle | +11° | ||||
| 11 | Lifting time of bucket | ≤5.1s | ||||
| 12 | Lowering time of bucket | ≤3.0s | ||||
| 13 | Dumping time | ≤1.1s | ||||
| 14 | Traveling speed(Km/h), 3 forward and 3 reverse power shift | |||||
| (1) 1st gear forward | 7.3 | |||||
| (2) 2nd gear forward | 15.7 | |||||
| (3) 3rd gear forward | 35 | |||||
| (1) 1st gear reverse | 7.8 | |||||
| (2) 2nd gear reverse | 16.8 | |||||
| (3) 3rd gear reverse | 36 | |||||
| Diesel Engine of the Wheel Loader | ||||||
| 1 | Model | Chinese YITUO LR6M3-22(LR6M3-G66Q-u2) | Chinese YUCHAI YC6B125-T20(B7635) | |||
| 2 | Type | Direct injection, Water cooling, Natural aspiration | ||||
| 3 | Rated output | 92Kw | ||||
| 4 | Inter-bore of cylinder/stroke | 110/125mm | 108/125mm | |||
| 5 | Total exhaust of cylinder | 7.12L | 6.87L | |||
| 6 | Voltage of starting motor | 24(V) | ||||
| 7 | Rated speed | 2200r/min | ||||
| 8 | Max. Torque | 463N.M | 440N.M | |||
| 9 | Starting type | Electric | ||||
| 10 | Min. specific fuel consumption | 242g/Kw.h | ||||
| Transmission System of the Wheel Loader | ||||||
| A. Torque Converter | ||||||
| 1 | Model | Chinese SINOMACH | ||||
| 2 | Type | 3-elements, single stage, single phase | ||||
| 3 | Torque ratio | 3.1 | ||||
| 4 | Cooling type | Pressure oil circulating | ||||
| B. Transmission Case | ||||||
| 1 | Model | Chinese SINOMACH | ||||
| 2 | Type | Power shift, spur gear constant-mesh | ||||
| 3 | Gear shift position | 3 Forward and 3 reverse gears | ||||
| C. Axle and Tire | ||||||
| 1 | Type of main reducer | Spiral bevel gear, single stage | ||||
| 2 | Gear ratio of main reducer | 3.889 | ||||
| 3 | Type of final reducer | Single stage planetary gear | ||||
| 4 | Gear of ratio of final reducer | 4.941 | ||||
| 5 | Total ratio | 19.216 | ||||
| 6 | Size of tire | 17.5-25-12PR | ||||
| Working Device Hydraulic System of the Wheel Loader | ||||||
| 1 | Model of oil pump | CBGj2100 | ||||
| 2 | System pressure | 160kgf/cm2 | ||||
| 3 | Model of distribution valve | GDF32D2 | ||||
| 4 | (D×L)Dimension of lifting cylinder | Ф125×70×697mm | ||||
| 5 | (D×L)Dimension of tilting cylinder | Ф150×70×466mm | ||||
| Steering System | ||||||
| 1 | Type | Middle articulated frame; Full-hydraulic Steering | ||||
| 2 | Model of steering pump | CBG2050 | ||||
| 3 | Model of steering gear | BZZ1-E400C+FKA-143020 | ||||
| 4 | System pressure | 14MPa | ||||
| 5 | Dimension of steering cylinder | Ф70×40×323mm | ||||
| Brake System | ||||||
| 1 | Type of traveling brake | Air over hydraulic four wheel brake system | ||||
| 2 | Air pressure | 7-8kgf/cm2 | ||||
| 3 | Type of emergency brake | Automatic cutting-off air brake | ||||
| 4 | Type of parking brake | Drum brake; Manual control cutting-off air brake | ||||
| Oil Capacity | ||||||
| 1 | Fuel (diesel) | 130L | ||||
| 2 | Engine lubricating oil | 17L | ||||
| 3 | Oil for converter and gear box | 35L | ||||
| 4 | Oil for hydraulic system | 120L | ||||
| 5 | Oil for driving axles(F/R) | 16/15L | ||||
SINOMACH is an industry leading earthmoving machine manufacturer based in China. Aside from wheel loaders, we also offer mechanical single drum vibratory road roller, motor grader, crawler bulldozer, backhoe loader, etc.
