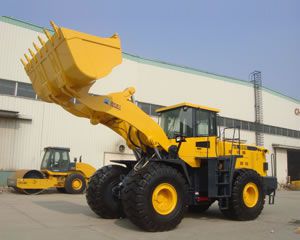

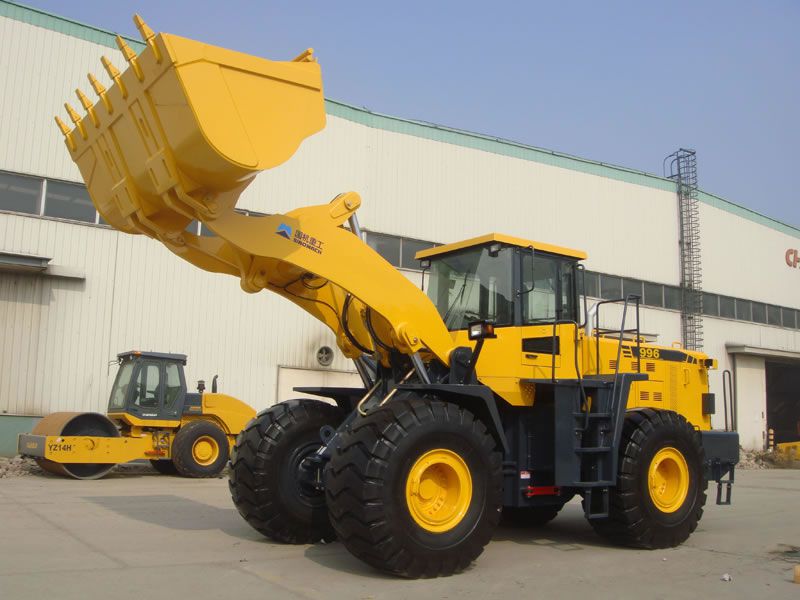

Features of 996 Wheel Loader
1. This bucket loader is equipped with a dependable Cummins engine which guarantees high fuel efficiency.
2. It uses KD switch that ensures higher efficiency and easier operation.
3. Reliable ZF transmission case and torque converter are used on the material handling equipment for high power and massive torque.
4. The wheel loader adopts original ZF wet-type axles with multi-disc limited-slip differentials.
5. 24° cone-shape seal cylinder allows high seal performance
6. This construction equipment comes with a single brake valve, dual pipe and full hydraulic brake system and a central lubrication system.
Overall Dimension (mm) | ||
1 | Length (with bucket on ground) | 9415 |
2 | Width (to outside of wheels) | 3250 |
3 | Bucket width | 3438 |
4 | Height (to the top of the cab) | 3780 |
5 | Wheel base | 3645 |
6 | Tread | 2432 |
7 | Min. ground clearance | 461 |
Main Technical Specifications of the Wheel Loader | ||
1 | Rated load | 9000Kg |
2 | Operating weight | 31620Kg |
3 | Rated bucket capacity | 5.1m3 |
4 | Max. breakout force | 202kN |
5 | Max. traction force | 261kN |
6 | Max. dump clearance | >3300mm |
7 | Dump reach | 1410mm |
8 | Dump angle at any position | ≥47° |
9 | Digging depth (with bucket bottom horizontal) | 250mm |
10 | Min. turning radius | |
(1)Outside of bucket | 7500mm | |
(2)Outside of rear wheel | 6725mm | |
12 | Pivot angle frame | 38° |
13 | Oscillating angle of rear axle | +12° |
14 | Lifting time of bucket | ≤6.4s |
15 | Lowering time of bucket | ≤3.1s |
16 | Dumping time | ≤1.8s |
17 | Traveling speed(Km/h), 4 forward and 3 reverse | |
(1)1st gear (Forward & Reverse) | 6.4 | |
(2)2nd gear (Forward & Reverse) | 11.94 | |
(3)3rd gear (Forward & Reverse) | 18.72/25.92 | |
(4)4th gear (Forward) | 32 | |
Diesel Engine of the Wheel Loader | ||
1 | Model | Original Cummins QSM11-C335 |
2 | Type | Direct injection, Turbocharged, Water cooling |
3 | Rated output | 250Kw |
4 | Inter-bore of cylinder/stroke | 125/147mm |
5 | Total exhaust of cylinder | 10.8L |
6 | Model of starting motor | 39MT-HD |
7 | Power of starting motor | 8Kw |
8 | Voltage of starting motor | 24V |
9 | Rated speed | 2100r/min. |
10 | Max. Torque | 1674N.m |
11 | Starting type | Electric |
12 | Min. specific fuel consumption | 215g/kw.h |
13 | Min. specific oil consumption | 1.0g/kw.h |
14 | Net weight | 984kg |
Transmission System of the Wheel Loader | ||
A. Torque Converter | ||
1 | Max. Dia. of flow path | 400mm |
2 | Type | 3-elements, single stage |
3 | Torque ratio | 2.511 |
4 | Cooling type | Pressure oil circulating |
B. Transmission Case | ||
1 | Model | ZF4WG310 |
2 | Type | Power shift, spur gear constant-mesh |
3 | Gear shift position | 4 Forward and 3 reverse gears |
C. Axle and Tire | ||
1 | Type of main reducer | Spiral gear, single stage |
2 | Gear ratio of main reducer | 5 |
3 | Type of final reducer | Single stage planetary |
4 | Gear of ratio of final reducer | 5.4 |
5 | Total ratios | 27 |
6 | Tire model | 29.5-25 -22PR(L-3) |
Working Device Hydraulic System of the Wheel Loader | ||
1 | Model of oil pump | AV0V0 100 DRS/53R-VWC12G60 |
2 | System pressure | 26MPa |
3 | Model of multi-way directional valve | M6-1416-00/3M6-22EH |
4 | (D×L) Dimension of lifting cylinder | 2-Ф200×110×790mm |
5 | (D×L) Dimension of tilting cylinder | 1-Ф225×125×575mm |
Steering System | ||
1 | Type | Middle articulated frame; full hydraulic power |
2 | Model of steering pump | HA10VO110DFR1/31R-VWC 12 H00 |
3 | Model of redirector | 150-7170 |
4 | System pressure | 21MPa |
5 | Dimension of steering cylinder | 2-Ф110×55×486mm |
Brake System | ||
1 | Type of traveling brake | Wet type multi-disc brake; Single brake valve & dual pipe, full hydraulic brake |
2 | System pressure | 16MPa |
3 | Type of emergency brake | Lower pressure alarm brake |
4 | Type of parking brake | Electric control brake |
Oil Capacity | ||
1 | Fuel(diesel) | 480L |
2 | Engine lubricating oil | 32L |
3 | Oil for converter and gear box | 43L |
4 | Oil for hydraulic system | 260L |
5 | Oil for driving axles(F/R) | 51L for each |
